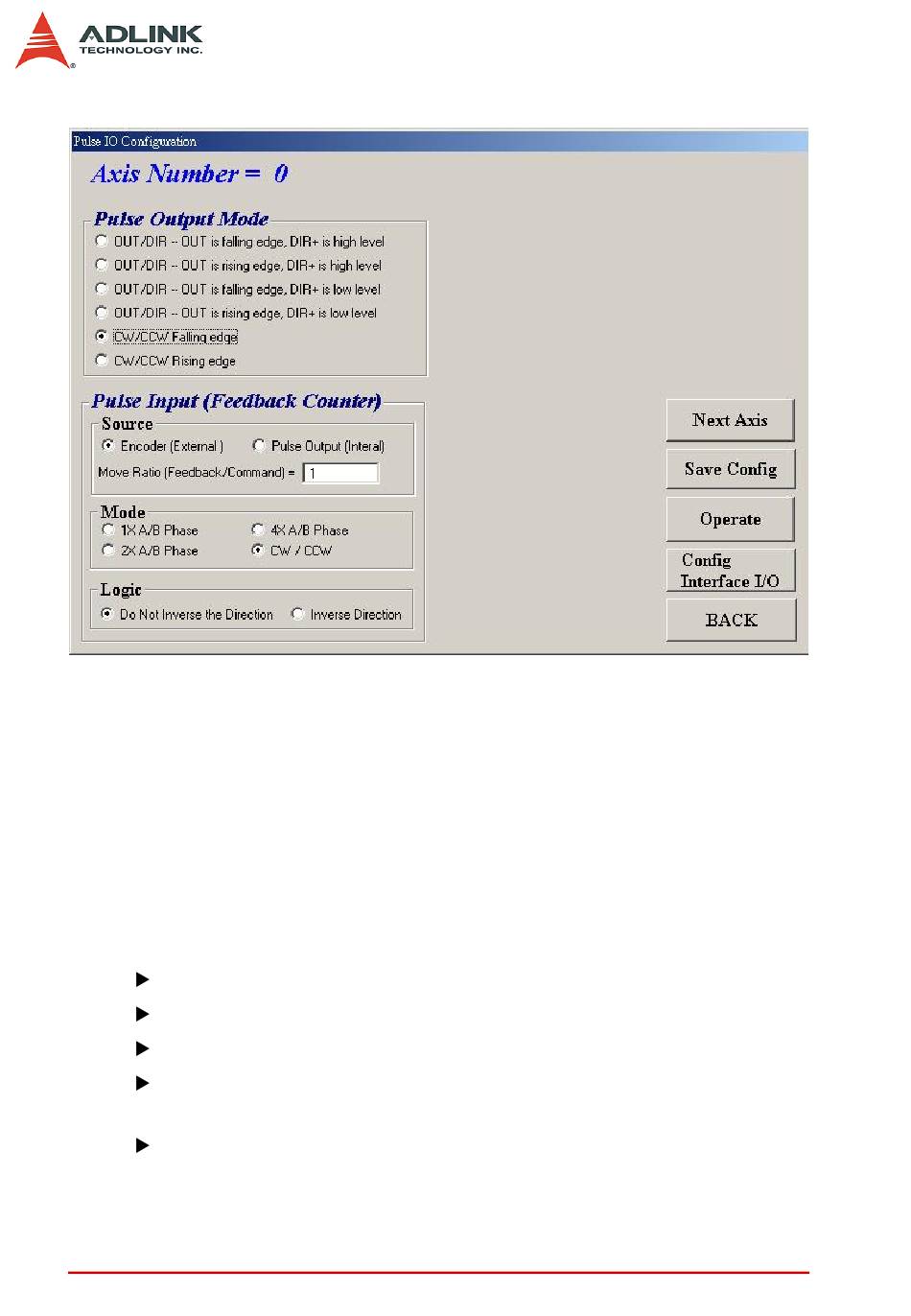

Figure 5-4: Pulse IO Configuration Menu

1. Pulse Output Mode: Select the output mode of the pulse

signal (OUT/ DIR). The related function call is

HSL_M_set_pls_outmode().

2. Pulse Input: Sets the configurations of the Pulse input

signal(EA/EB).

HSL_M_set_pls_iptmode(),

HSL_M_set_feedback_src().

3. Buttons:

Next Axis: Change operating axis.

Save Config: Save current configuration to HSL-4XMO.ini.

Operate: Go to the operation menu, refer to section 5.3.4

Config Pulse: Go to the Pulse IO Configuration menu, refer

to section 5.3.3

Back: Return to the main menu.

The

function

calls

are

Motion Creator in LinkMaster
