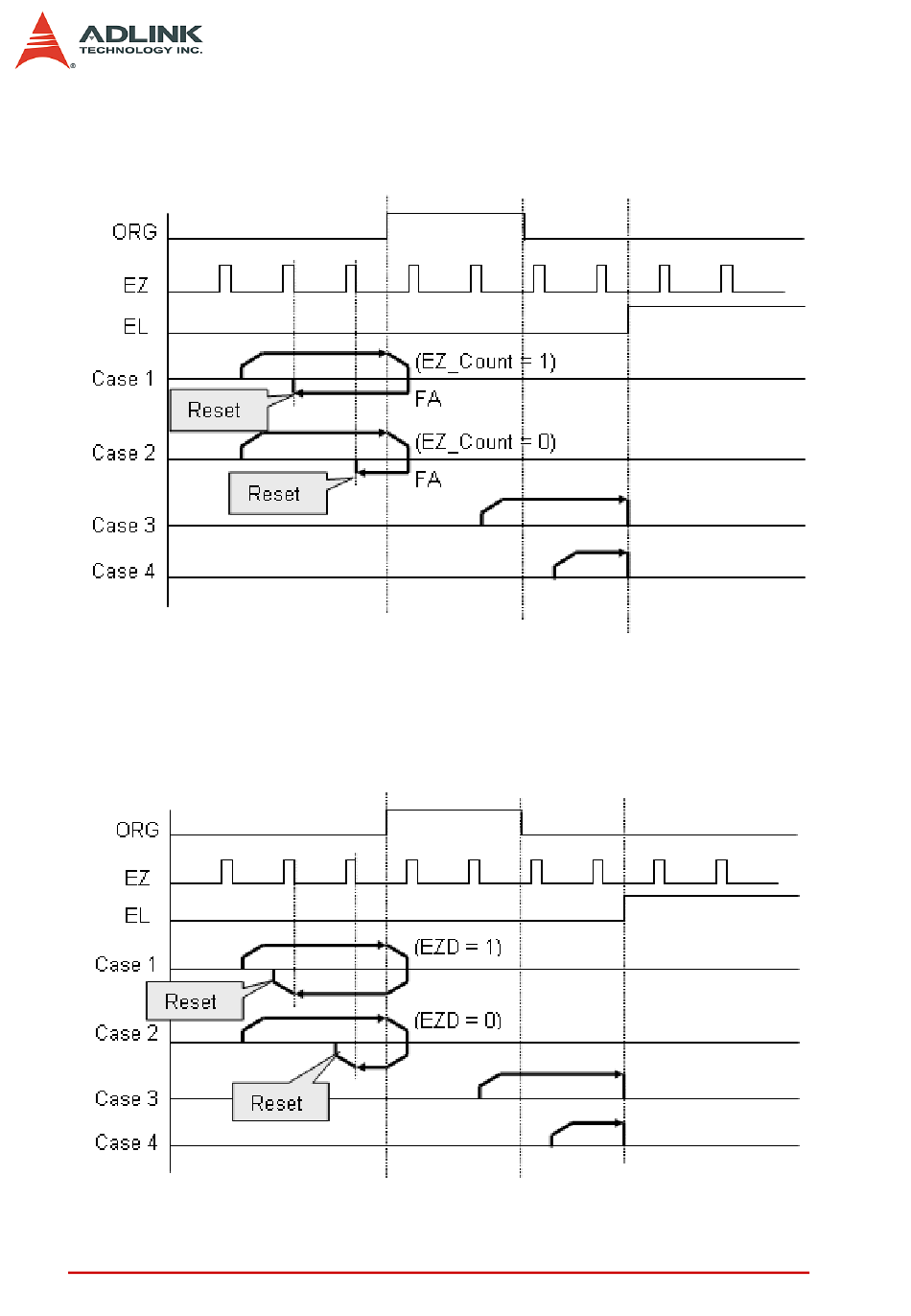

home_mode=4: ORG -> Slow down -> Go back at FA speed ->
EZ -> Stop

Figure 4-20: home_mode=4

home_mode=5: ORG -> Slow down -> Go back ->? Accelerate
to MaxVel -> EZ -> Slow down -> Stop
52
Operation Theory
