ADLINK Technology USB-7230 Quick Start Manual

USB-7230/7250

Getting Started

Check product package
Install USB-7230/7250
driver (UD-DASK)
& utility (U-Test)
Connect USB-7230/7250
to USB 2.0/3.0 port
Perform quick test with
U-Test utility

Installing the Driver

1. Download the latest UD-DASK driver & U-Test from:
http://www.adlinktech.com/ and run.
2. Follow the installation instructions

Features

• USB 2.0, USB bus powered
• Programmable digital filter
clears input channels
• Programmable DO/Relay initial
status
• Up to 2500 VRMS isolation
voltage
P/N 50-41039-5000
USB-7230/7250

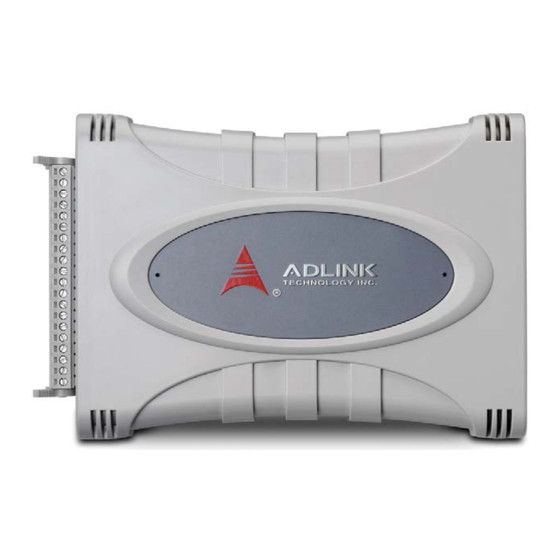

USB 2.0-based Digital I/O Module

Package Contents

Your package should contain:
• USB-7230/7250
• Stand
• USB cable (2m)
• 2X 20-pin removable
screw terminals
• Rail mount kit
• ADLINK All-in-One CD
• Quick Start Guide
(this document)
• Removable screw terminals
• Lockable USB cable for secure
connectivity
• Ready-to-use testing application
(U-Test) included
Quick Start Guide

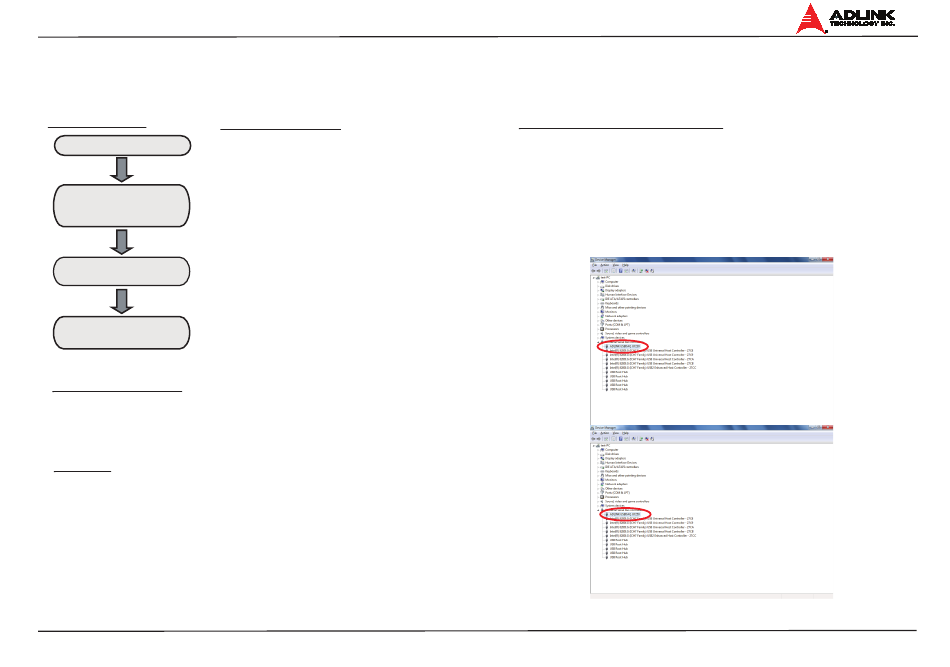

Connecting the USB-7230/7250

1. Connect the USB-7230/7250 module to one USB 2.0 or 3.0 port on the
computer using the included USB cable
2. The first time the USB-7230/7250 module is connected, a New Hardware
message appears. It will take around 6 seconds to load the firmware.
When complete, the LED indicator on the rear of the USB DAQ module
changes from amber to green and the New Hardware message closes.
The USB-7230/7250 module can now be located in the hardware
Device Manager, as shown.
Rev. 2.00
Nov. 11, 2016
