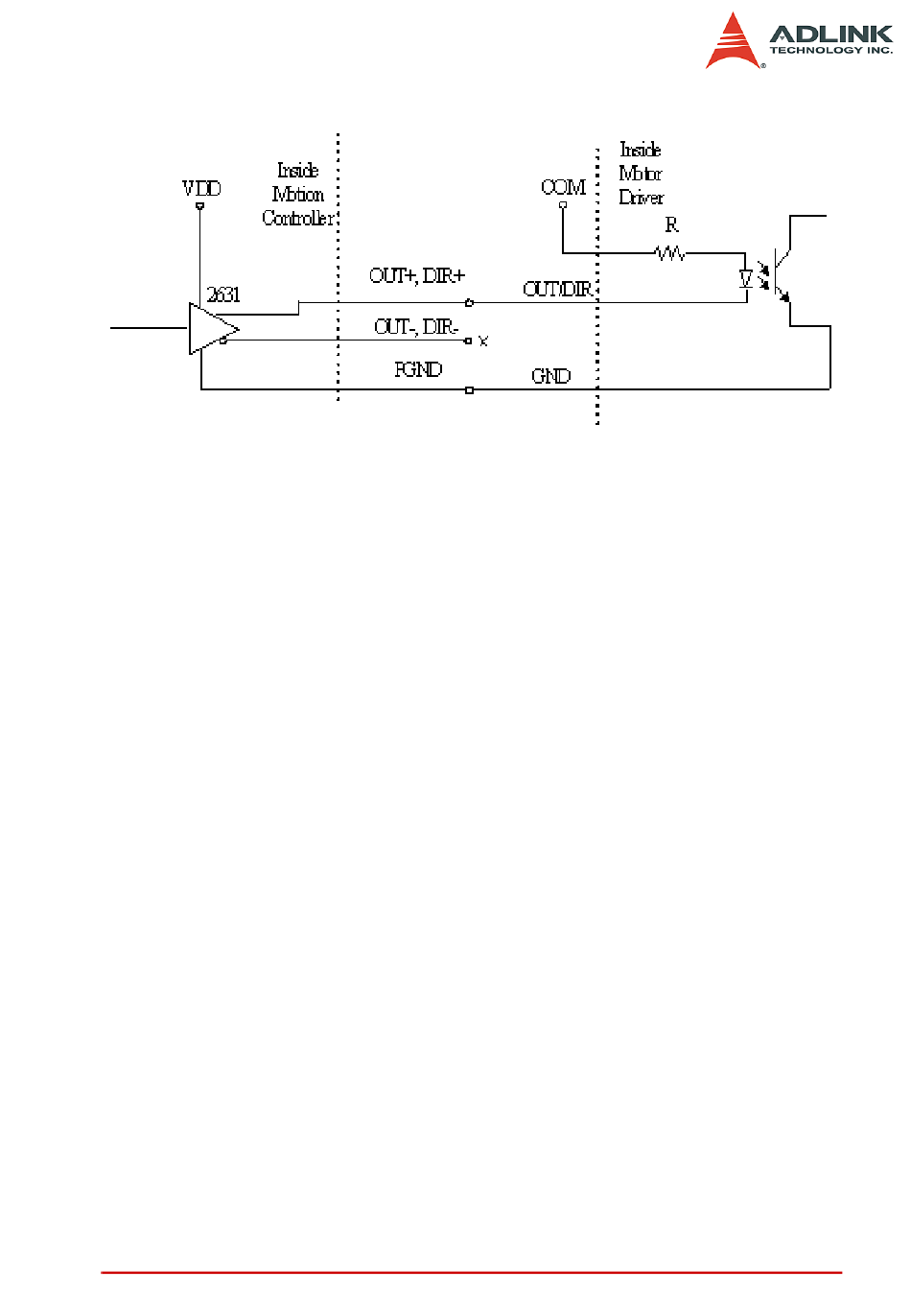

Figure 3-2: Non-differential Type Wiring Example
Warning: The sink current must not exceed 20mA or the 2631 will
be damaged!
Signal Connections
15
