3.1 Pulse Output Signals OUT and DIR

There are 4 axis pulse output signals on the HSL-4XMO. For each

axis, two pairs of OUT and DIR signals are used to transmit the

pulse train and to indicate the direction. The OUT and DIR signals

can also be programmed as CW and CCW signal pairs. In this

section, the electrical characteristics of the OUT and DIR signals

are detailed. Each signal consists of a pair of differential signals.

For example, OUT2 consists of OUT2+ and OUT2- signals.

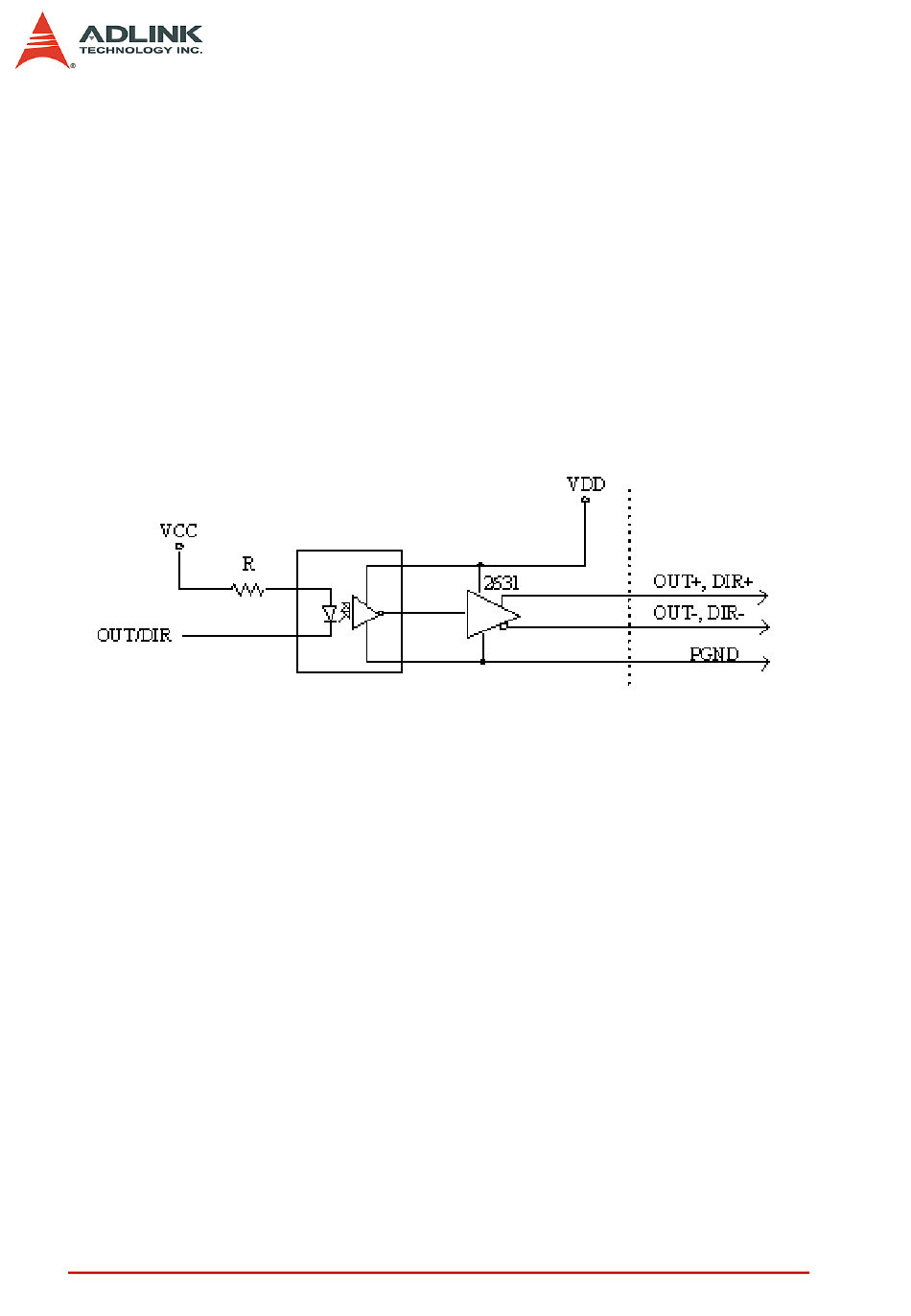

The following wiring diagram is for OUT and DIR signals on the 4

axes.

Non-differential type wiring example:

Choose one of OUT/DIR+ and OUT/DIR- to connect to driver's

OUT/DIR
