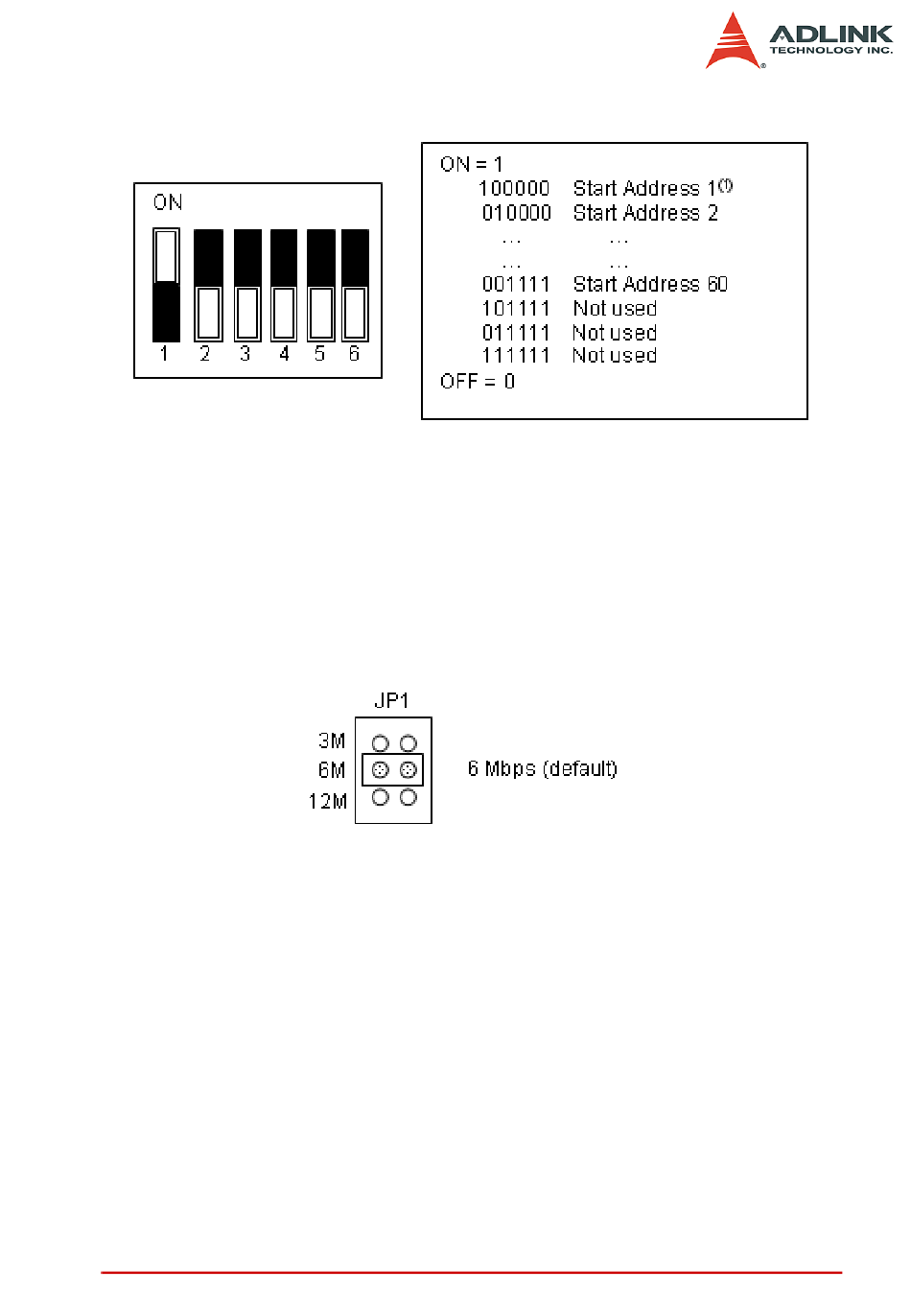

Figure 2-2: S1: Switch Setting for HSL Slave ID

Note:

Each HSL-4XMO occupies 4 HSL IDs. If using half duplex

mode, the occupied ID will be continuously from this setting.

For example, if you set the ID=1 then the occupied IDs will

be 1, 2, 3, 4. If using full duplex mode, the occupied ID will

be two ID steps in order. For example, if you set the ID=1

then the occupied IDs will be 1, 3, 5, 7.

Figure 2-3: JP1: HSL Communication Speed Selection Jumper Setting
