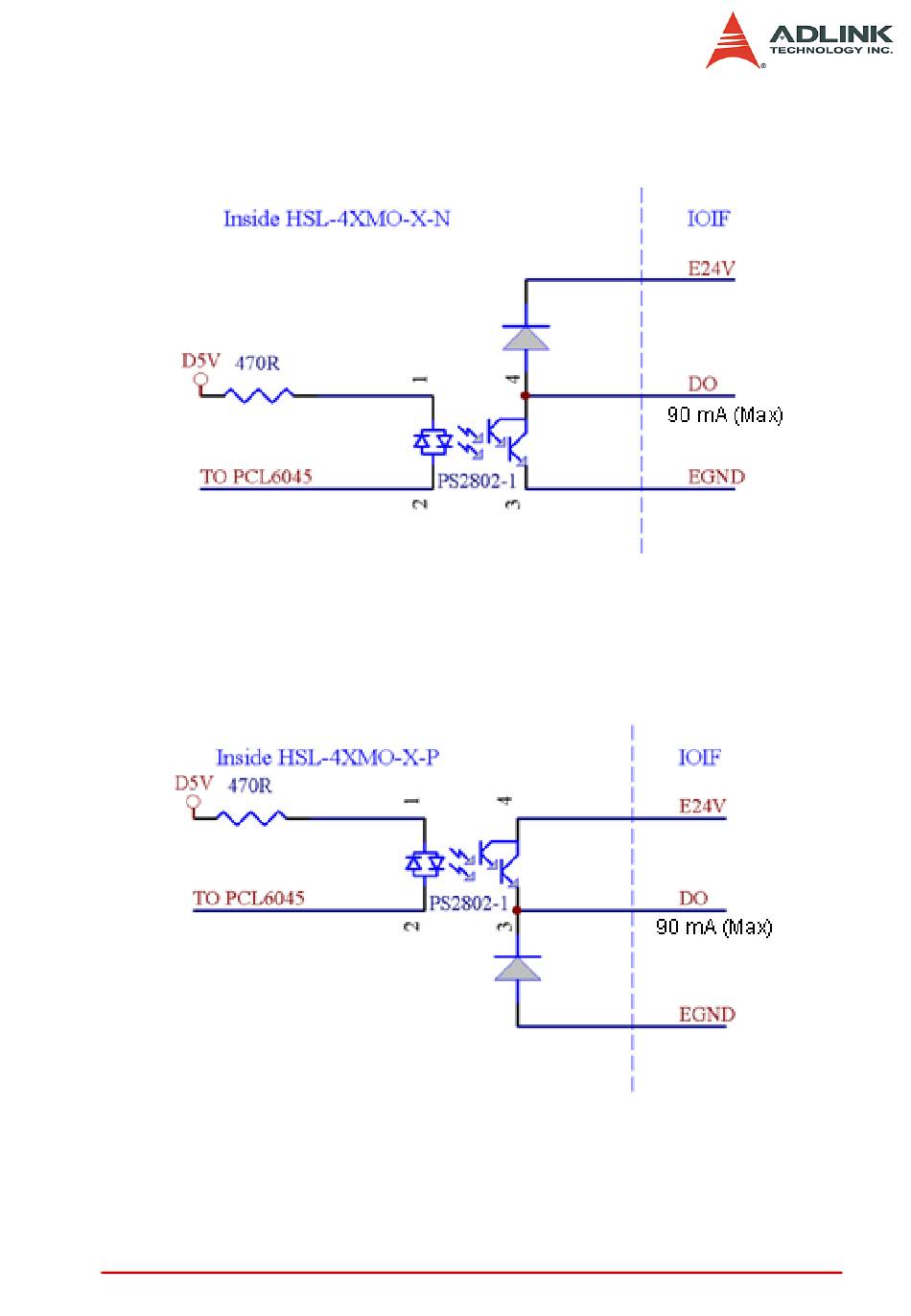

NPN type general purpose Output (available in –N modules):
Figure 3-17: NPN Type General Purpose Output
PNP type general purpose Output (available in –P modules):
Figure 3-18: PNP Type General Purpose Output
Signal Connections
25
