closed) contact switches can be used. The type of switch can be
configured by software.

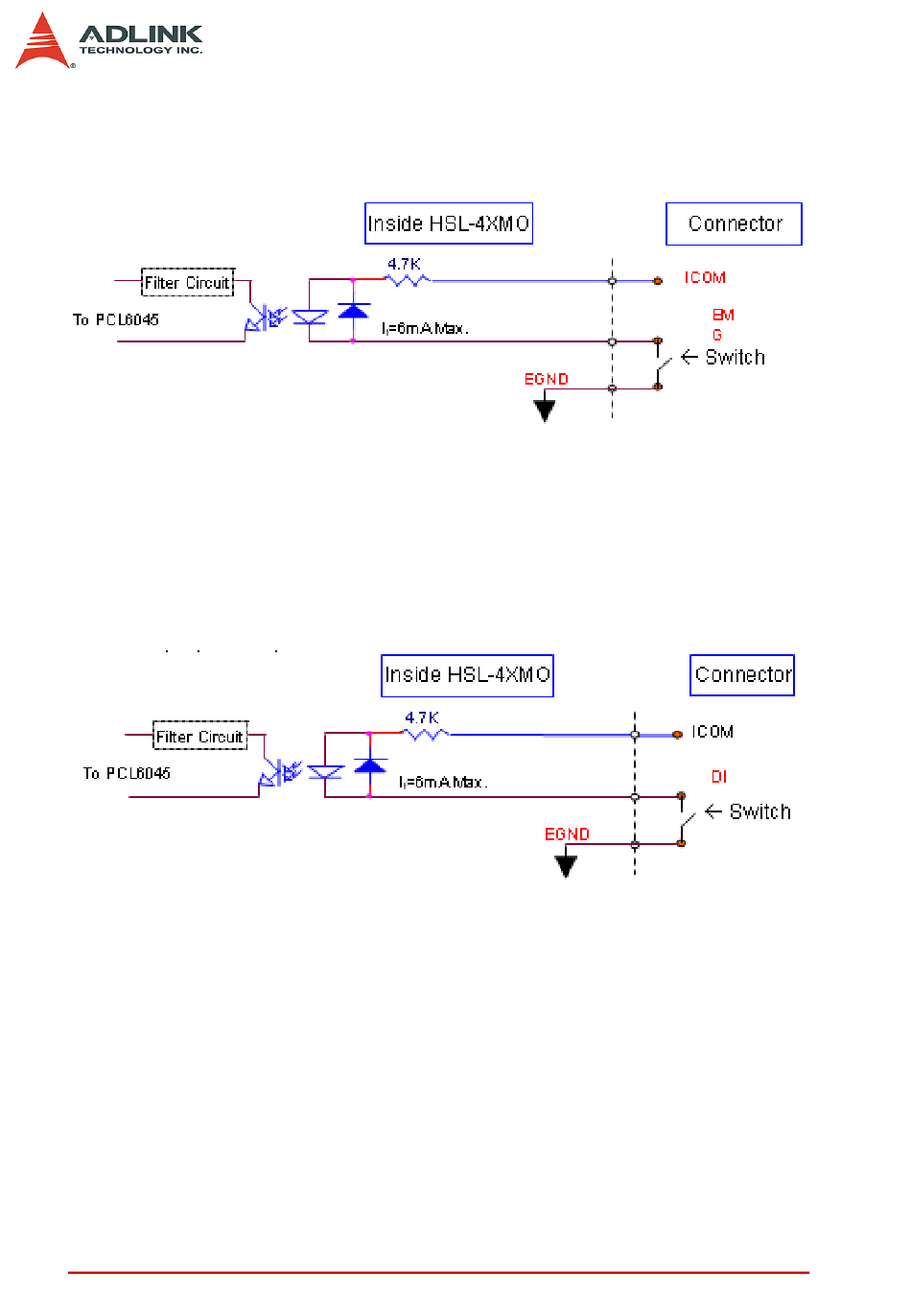

Figure 3-15: Emergency Stop Input EMG

3.13 General-purpose Input

HSL-4XMO has 4 opto-isolated digital inputs for general-purposed
use. The following wiring diagrams are of these signals

Figure 3-16: General-purpose Input

3.14 General-purpose Output

HSL-4XMO has 4 opto-isolated digital outputs for general-pur-
posed use. The following wiring diagrams are of these signals
24 Signal Connections
