ADLINK Technical Document
Abstract
How to Use Pulse Measurement
OS
Windows
Keyword
GPTC

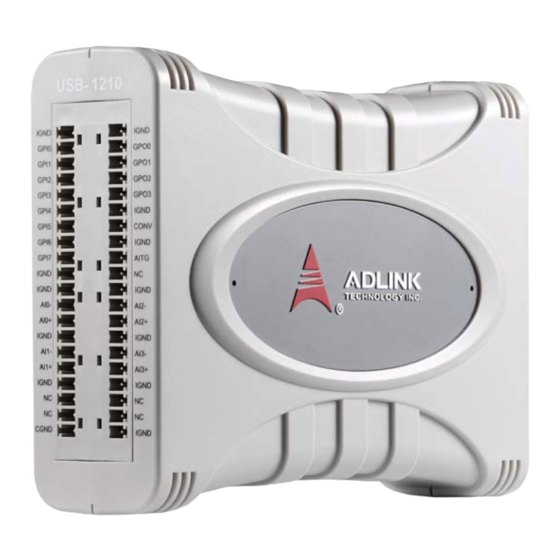

Related Products
USB-1210, USB-1901, USB-1902, USB-1903
Date
2021-12-28
Issue Details:
This document outlines how to use pulse width measurement, one of the several GPTC functions
available to users.
More information:
Single period measurement calculates the period of the signal from GPTC_GATE in terms of
GPTC_CLK signal. The counter calculates the number of active edges on GPTC_CLK between two
active edges of GPTC_GATE.
Single pulse width measurement calculates the pulse width of the signal from GPTC_GATE in terms
of GPTC_CLK. The counter calculates the number of active edges on GPTC_CLK.
No.

Advertisement

loading
Need help?

Need help?

Do you have a question about the USB-1210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ADLINK Technology USB-1210

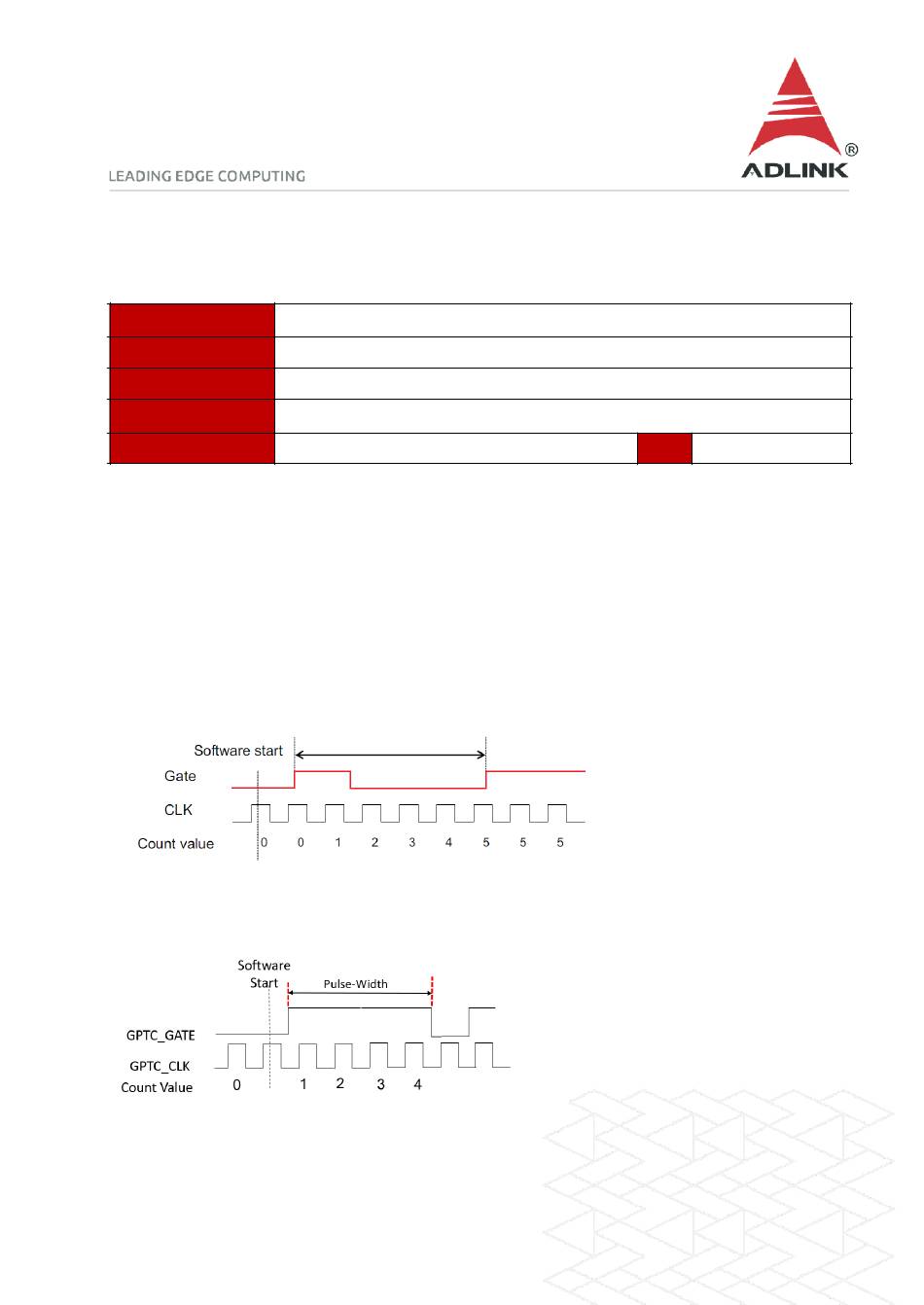

  • Page 1 ADLINK Technical Document Abstract How to Use Pulse Measurement Windows Keyword GPTC Related Products USB-1210, USB-1901, USB-1902, USB-1903 Date 2021-12-28 ● Issue Details: This document outlines how to use pulse width measurement, one of the several GPTC functions available to users.
  • Page 2 Refer to the user manual and check the pin definitions to find the GPTC_CLK and GPTC_GATE pin numbers. For the USB-1210, the GPTC_CLK is pin 19 and the GPTC_GATE is pin 17. For the USB-1900 series, the GPTC_CLK is pin 31, the GPTC_GATE is pin 33.
  • Page 3 Step 2: Connect pins Connect the source signal for measurement to GPTC_GATE (pin 17). Step 3: Install U-Test Download and install the U-Test utility from the ADLINK website.
  • Page 4 Step 4: Launch sample program 1. Launch U-test 2. Click Digital Input/Output in the left pane 3. Select the GPTC tab in the right pane 4. Under ModeOperation, select Single Period Measure or Single Pulse-Width...
  • Page 5 Step 5: Set gate and clock Set GPTC_GATE to External and GPTC_CLK to Internal. Step 6: Run Press the run button (highlighted below) and the DAQ card will start to measure the period. The source signal is 100Hz, the period is 1/100 = 0.01...
