4.1.1 Adaptation of the displays for gas analysis

Hint
The position of the measured and calculated values (gas analysis sub-menu)
on the display pages is free selectable
For alteration of the existing succession, proceed as follows:
- Press <Enter> / „Display values" / <Enter> to activate the function
- Select line with cursor keys (Up/Down)
- Select desired parameter with cursor keys (Right/Left)
- Repeat procedure until desired layout is completed
- Press <Enter> to deactivate the function

4.1.2 Positioning the probe, search the core stream

Hint
The correct positioning of the probe in the gas stream is necessary in order to
achieve an impressive measuring result.
To correctly position the probe in the gas stream, proceed as follows:
- Connect the probe hose to the device "connection gas temperature"

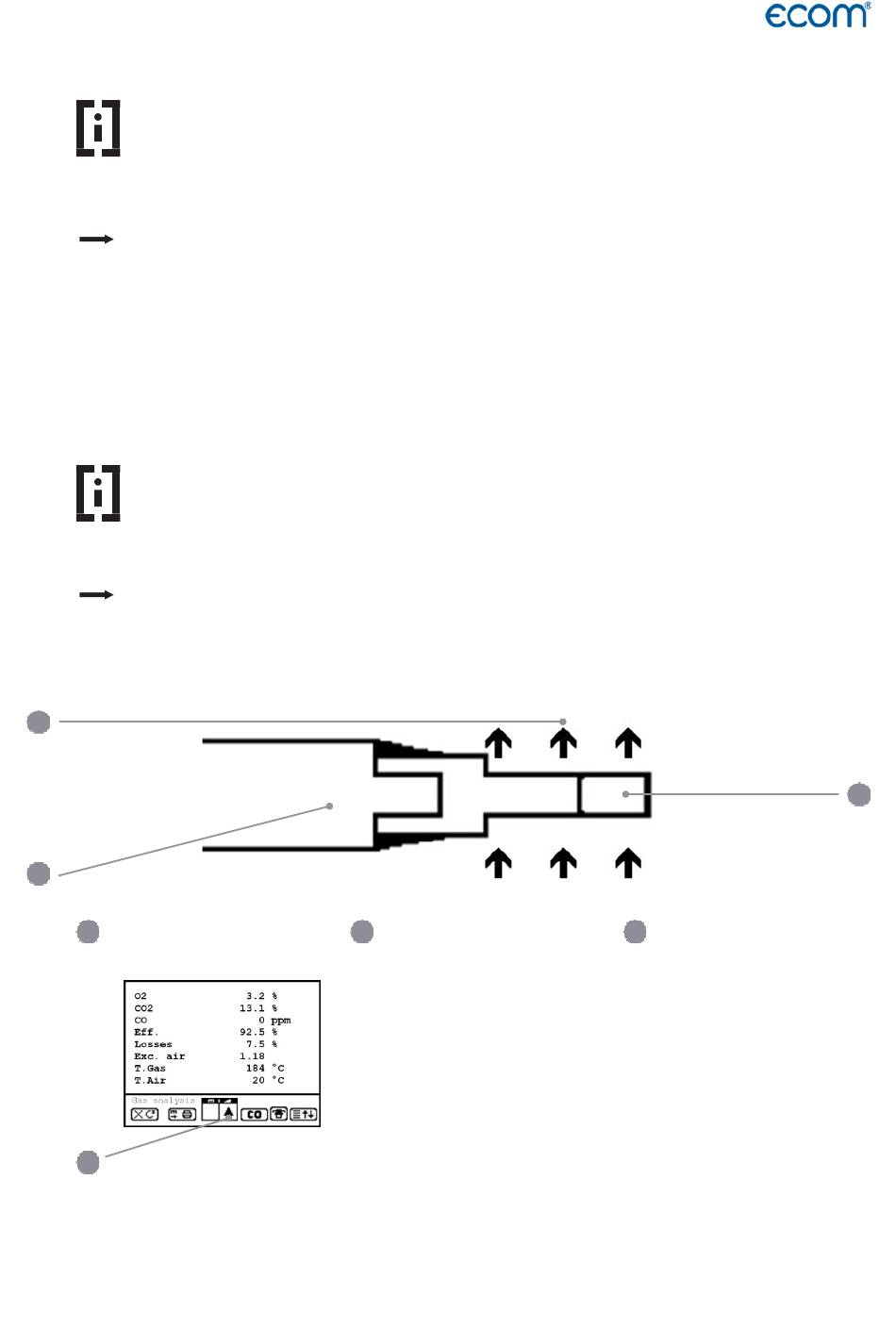

- Position the sampling probe in the exhaust channel, so that the thermocouple is fully
surrounded with the gas (see drawing).
1
3
1
Gas stream
4
Core stream search
If an arrow in downwards direction is displayed, it means you move the probe away from the
core stream and the temperature sinks.
ecom-EN3
2
Protection bow
Position the sampling probe in the exhaust channel
(Position in the hottest gas temperature area).
Observe trend for T.Gas in the measurement display.
As long as the display shows an arrow in upwards
direction, the measured temperature increases, it means
the probe tip moves towards the core stream center.
3
Probe tip
2
Page 23
