6-10
Running the Array Configuration Utility
Create logical drives across the physical
drives.
When creating a logical drive, you can select a fault-tolerance (RAID level)
option and provide information regarding the drive size and array accelerator.
1.
Select Array A or the Unused Space icon under Array A in the Logical
Configuration View.
2.
Click the Create Logical Drive button. A screen similar to the following
figure displays.

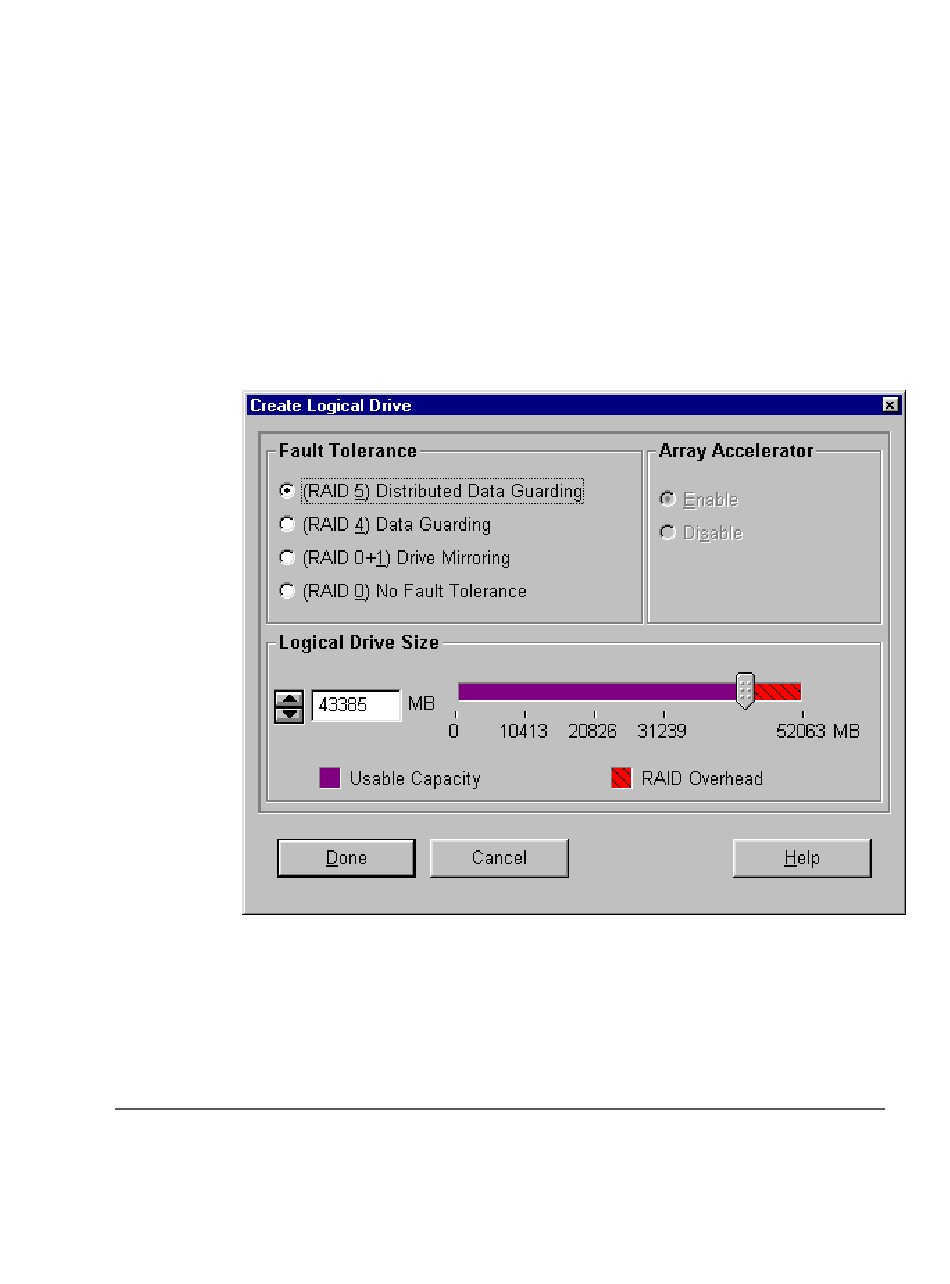

Figure 6-7. Create Logical Drive screen
3. In the upper-left area of this screen, click the Distributed Data Guarding
(RAID 5) button.
4.
Click the Array Accelerator Enable button.
Writer: Karen Hale Project: Compaq Smart Array 221 Controller User Guide Comments: 388541-001
File Name: G-CH06.DOC Last Saved On: 11/5/98 1:41 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
