Page 66 of 220 Installing the hardware

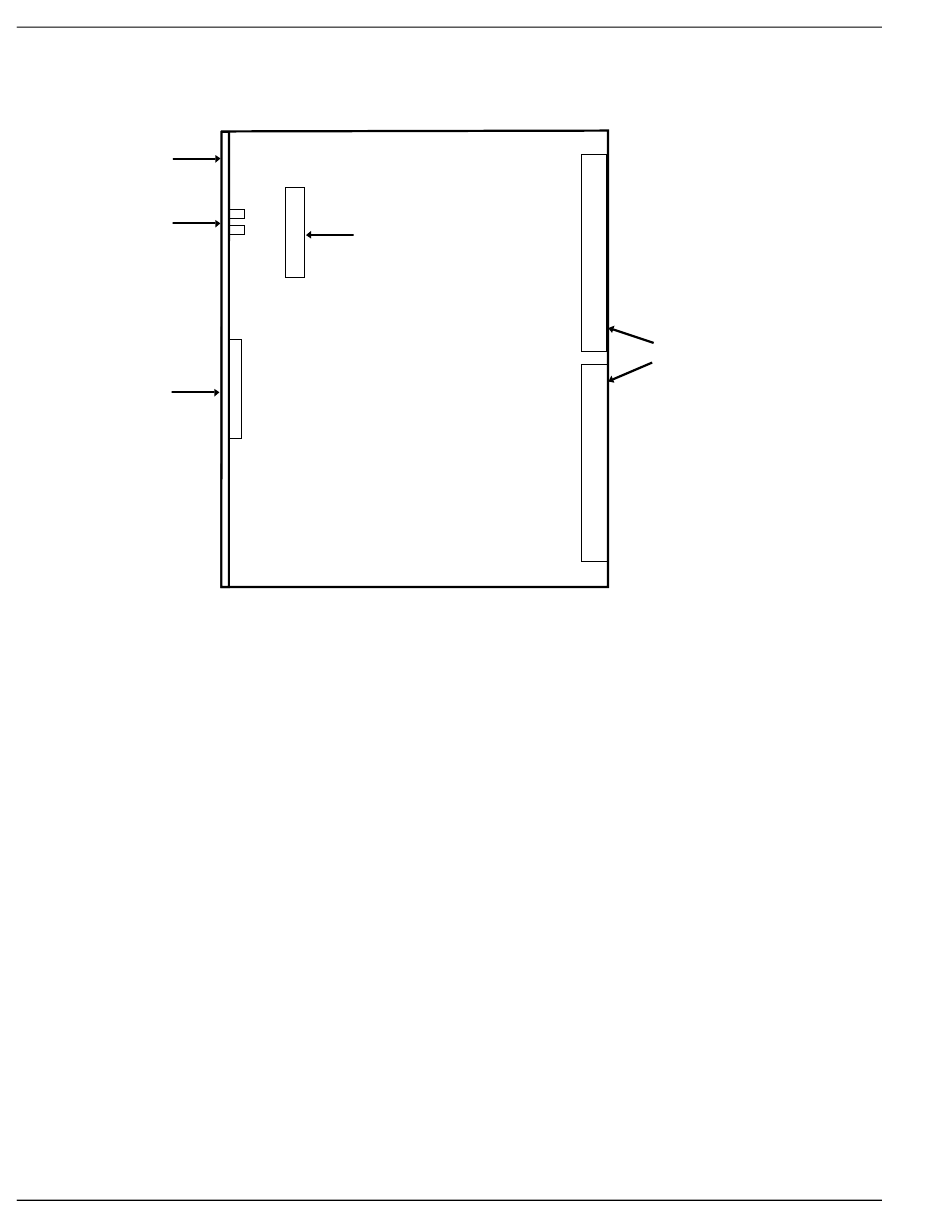

Figure 28: P2 plug location
front
faceplate
LEDs
J2
553-3601-200 Standard 7.00 November 1998
CMCC component side
P2 connector
5.
Fasten the ROM card securely to the standoffs.
6.
Install the CMCC on the IPE Module. The CMCC must be located to the
left of any CMRC, CMLC or CMBC.
7.
Connect the J1 plug of the last faceplate cable to the CMCC and verify
appropriate card LED behavior, as described in "Normal LED behavior
upon installation" on page 59.
Figure 29 illustrates how the system looks after you have installed cards and
interboard faceplate cable harnesses.
