Page 134 of 220 Maintenance

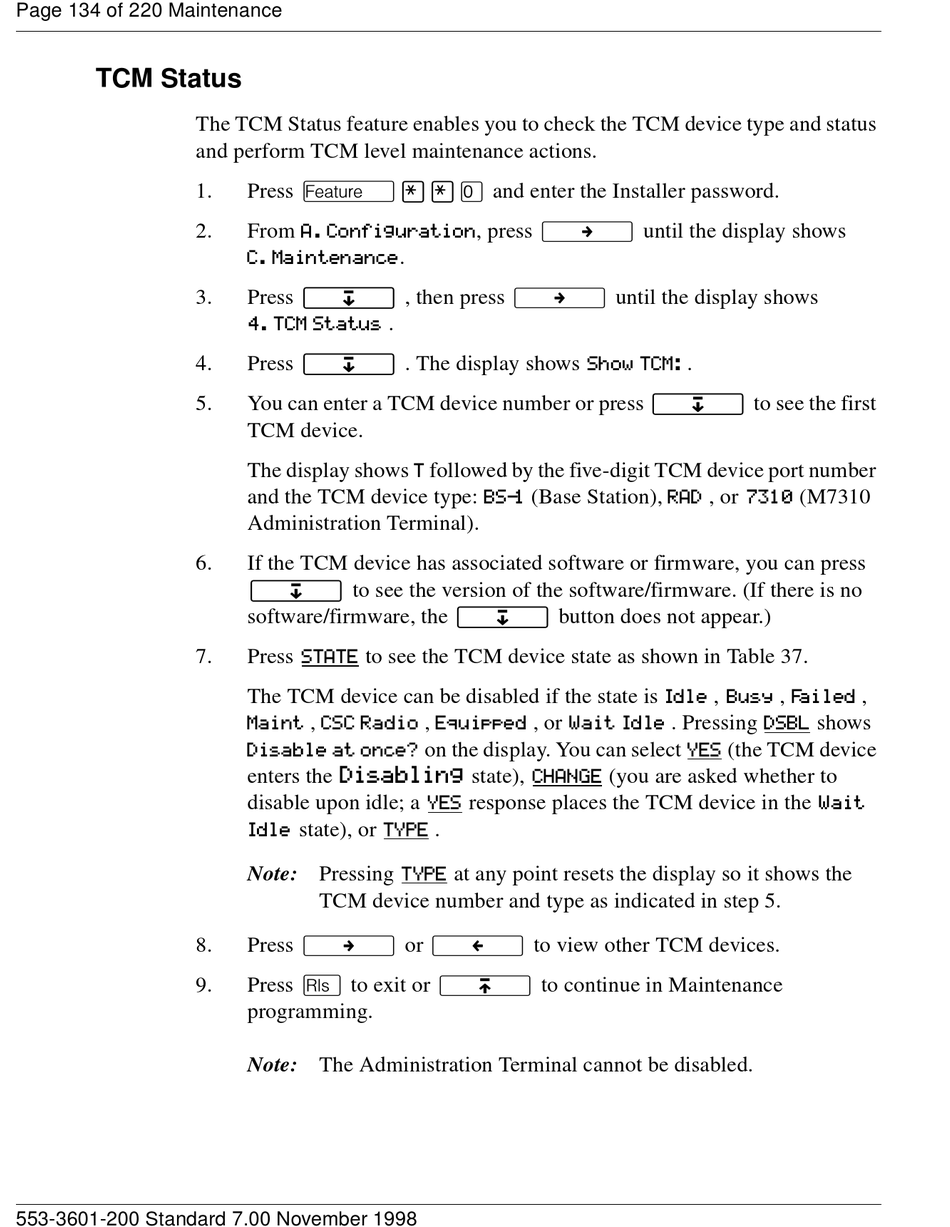

TCM Status

553-3601-200 Standard 7.00 November 1998
The TCM Status feature enables you to check the TCM device type and status
and perform TCM level maintenance actions.
Press ƒ••‚ and enter the Installer password.
1.
From A. Configuration, press * until the display shows
2.
C. Maintenance.
Press ^ , then press * until the display shows
3.
4. TCM Status .
Press ^ . The display shows Show TCM: .
4.
You can enter a TCM device number or press ^ to see the first
5.
TCM device.
The display shows T followed by the five-digit TCM device port number
and the TCM device type: BS- 1 (Base Station), RAD , or 7310 (M7310
Administration Terminal).
6. If the TCM device has associated software or firmware, you can press
^ to see the version of the software/firmware. (If there is no
software/firmware, the ^ button does not appear.)
7. Press STATE to see the TCM device state as shown in Table 37.
The TCM device can be disabled if the state is Idle , Busy , Failed ,
Maint , CSC Radio , Equipped , or Wait Idle . Pressing DSBL shows
Disable at once? on the display. You can select YES (the TCM device
Disabling
enters the
disable upon idle; a YES response places the TCM device in the Wait
Idle state), or TYPE .
Note: Pressing TYPE at any point resets the display so it shows the
TCM device number and type as indicated in step 5.
Press * or & to view other TCM devices.
8.
Press ® to exit or % to continue in Maintenance
9.
programming.
Note: The Administration Terminal cannot be disabled.
state), CHANGE (you are asked whether to
