Page 34 of 220 Installing the hardware
553-3601-200 Standard 7.00 November 1998

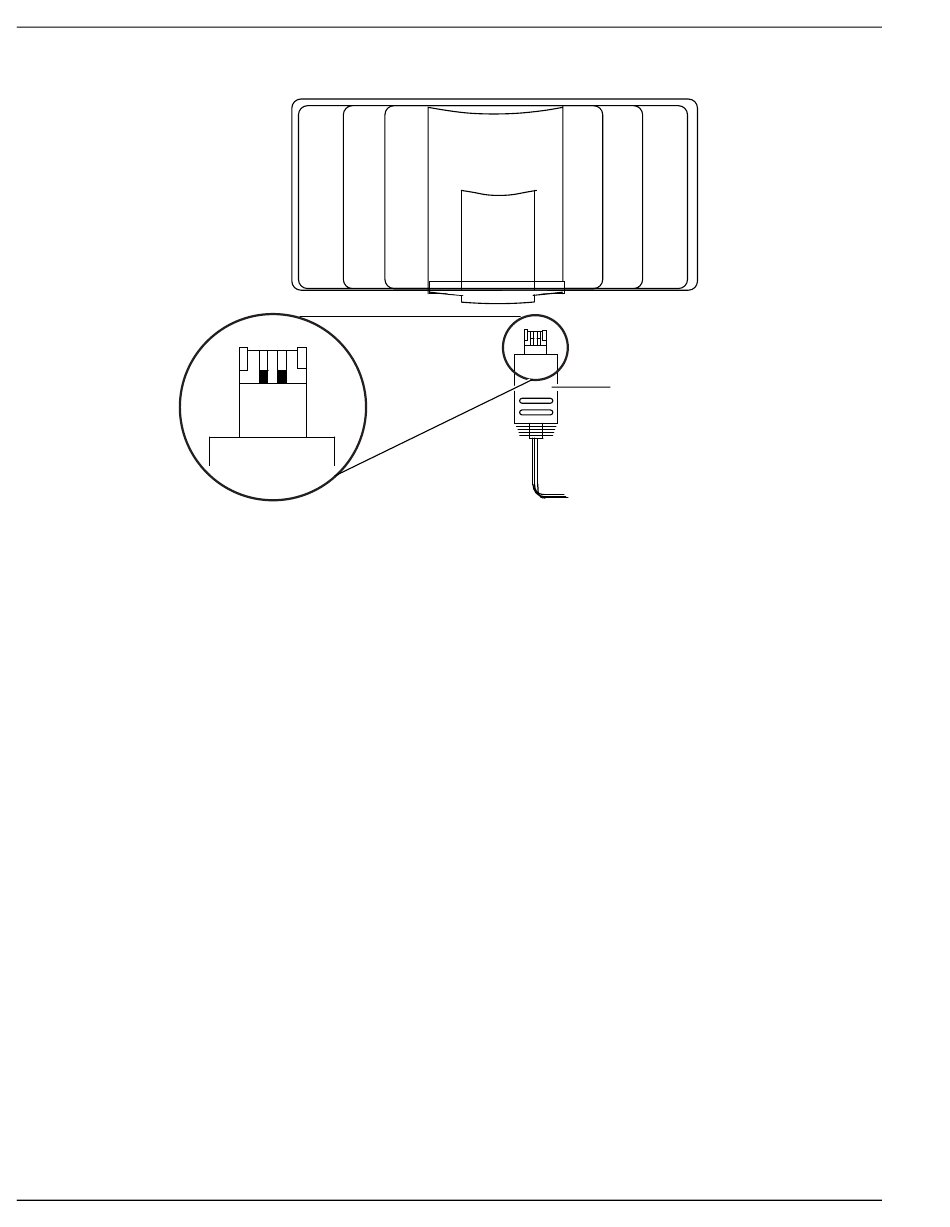

Figure 15 : Plug-top power supply connector
9.
Plug the power supply into the ac outlet. The green light turns on and the
red light flashes (if not, see "Troubleshooting a Base Station" on
page 177).
10.
Record the associated port number in the space provided on the printed
label affixed on the lower right corner of the mounting bracket.
Note: Include the labeling information for each Base Station on the
completed installation floor plans and the Meridian Companion
Programming and Provisioning Record for reference.
11.
Slide the cover onto the bracket, using the guide to position it properly.
Snap the cover into place.
Figure 16 shows a configuration for small installations in which the Base
Station is located near an existing ac power source or the Base Station is
farther from an RPI unit than 3,000 ft.
