Page 14 of 220 Installing the hardware

Mounting a Base Station

3 1 / 2 in. from
other objects
Base Station
553-3601-200 Standard 7.00 November 1998
Base Stations can be mounted on a wall or on a ceiling (when mounting on a
wall, install it with the cover at the bottom, as shown in Figure 9 on page 22).
Allow for the following clearance around the Base Station.

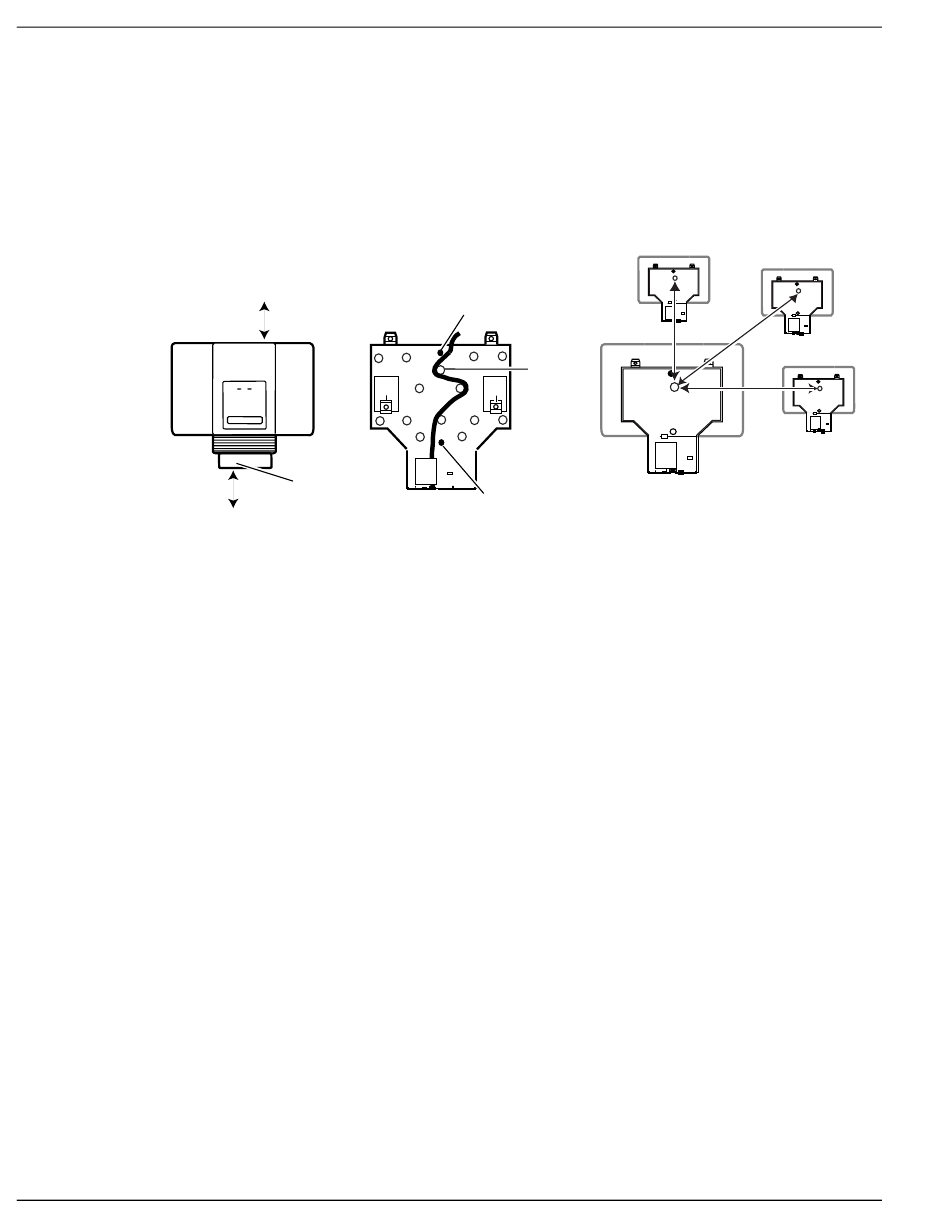

Figure 2 : Clearance for the Base Station
3 1 / 2 in. from
other objects
cover
Mounting a Base Station
1. Fasten the bracket into position using two #8 1
2. Route the telephone cable from the distribution block through the top (or
bottom) opening.
3. Wind any excess telephone cable around the posts to secure it, then
fasten it under the strain relief.
4. Connect the cable wires to the BIX connector on the termination board
as shown in Figure 4 on page 16.
bracket mounting
screw hole
center
bracket mounting
screw hole
54 in.
bracket
1
/ -in. screws.
2
54 in.
54 in.
