Functional description

1 Functional description

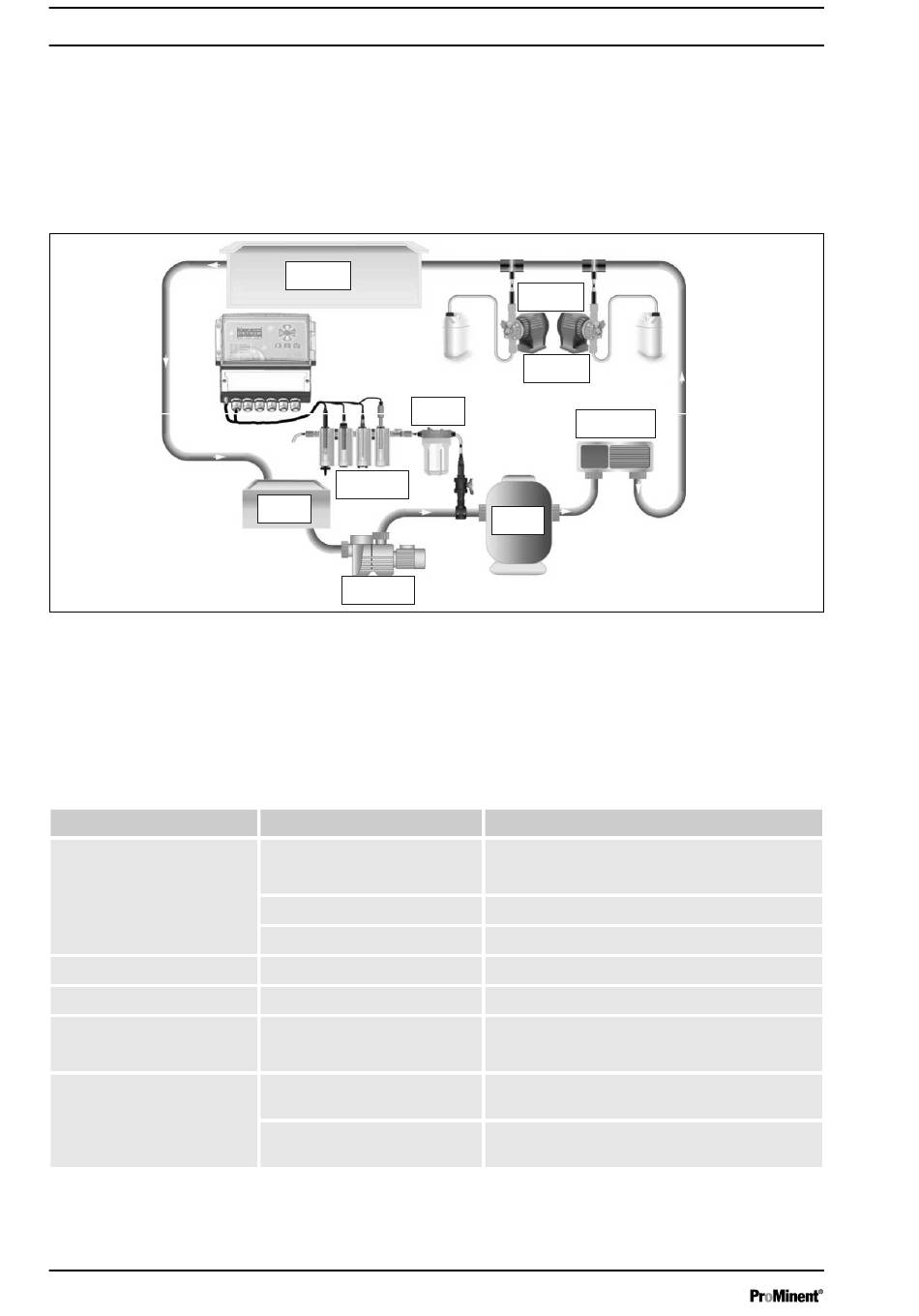

Fig. 1: Functional elements of the complete system
1. Swimming pool
2. Metering pump for chlorine
3. Metering pump for acid (pH)
4. Heat exchanger
5. Secondary flow filter for the in-line probe housing
The key functions
Designation
Control mode
Type of actuators
Control direction
Alarms
Control
6
The swimming pool controller was designed to measure and con‐
trol temperature, pH, chlorine or bromine values using sensors and
the control in conjunction with the corresponding adjustable com‐
ponents of the entire system.
The swimming pool controller will henceforth be referred to as the
'controller' throughout these operating instructions.
1.
5.
6.
9.
8.
Function
P.I.D.
Hysteresis
All or nothing
Output relay outputs
Up or down
Low and high alarms
Control of flow rate
Storage tank level
2.
3.
4.
7.
6. In-line probe housing
7. Primary flow filter for the swimming pool
8. Circulating pump
9. Compensation tank
Description
Injection time calculated as a %.
240 second relay injection cycle time.
Control of width modulation
Expressed in actual measured values.
Control with high and low threshold.
Regulation of injection to control water circu‐
lation.
Regulation of injection to control the height of
the product to be injected.
A1532
