Setting measuring and control parameters
8.1.2.1
General input symbols
8.1.2.2
Configuring 4 ... 20 mA analogue or potentiometric inputs
82
1.
2.
3.

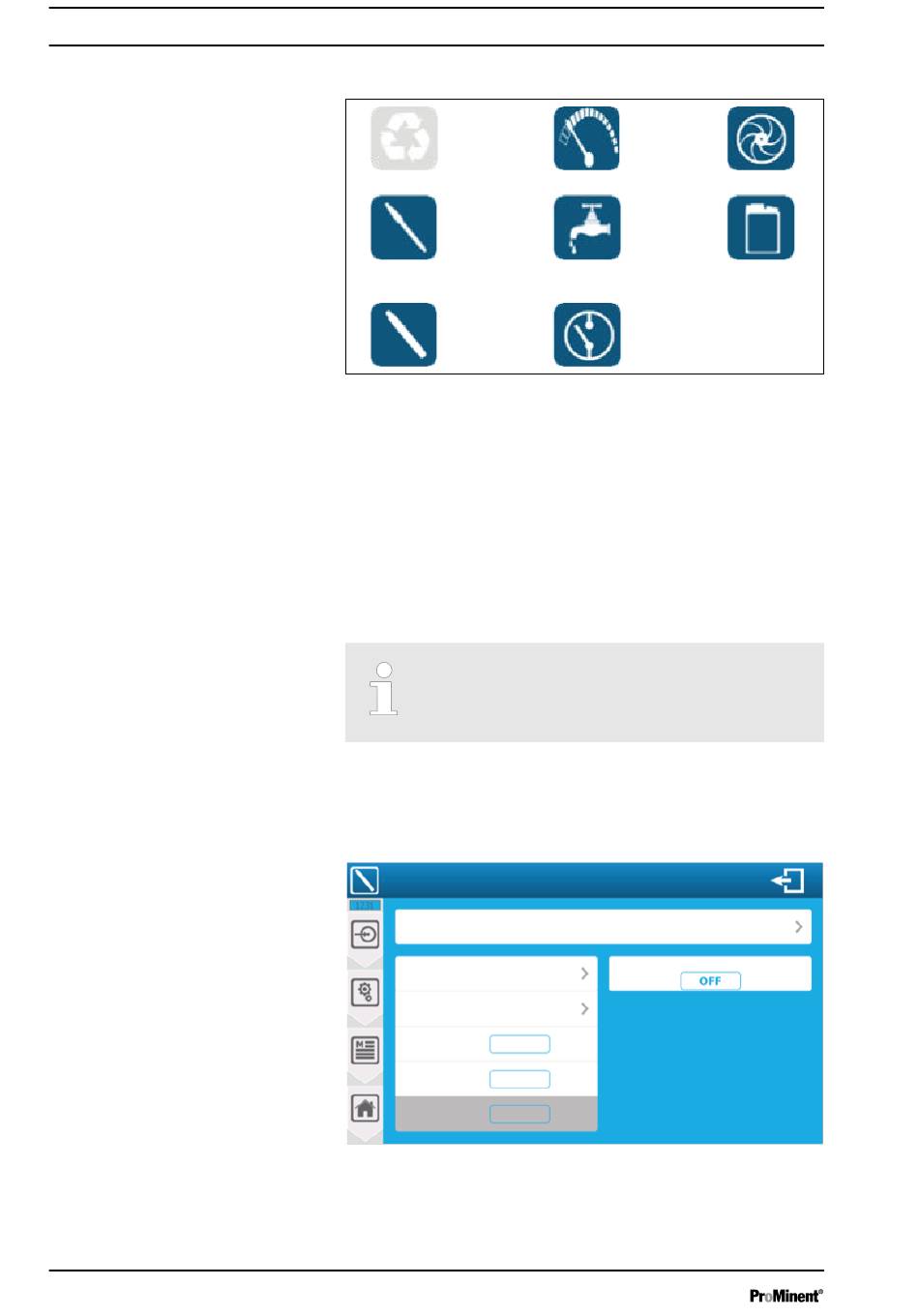

Fig. 69: General symbols
1
Unused entry
2
Input with a potentiometric sensor
3
Input with a 4 ... 20 mA sensor
4
Input with a volume sensor
5
Input with a flow sensor
6
Input with a flow switch
7
Enter R.I.C. command and contact
8
Input with a level switch
The AI3 and AI4 4 ... 20 mA inputs are not isolated
when the above option is enabled. Make sure that
the sensor selected for these inputs is an isolated
sensor.
You can configure the 4 ... 20 mA analogue or potentiometric
inputs here. Press the selection button to be set and set the
respective input within the possible parameters.
To remove a sensor from the selection: select " NO " from the func‐
tion list and save your configuration by pressing "SAVE".
Setting the analogue input
PI 1 pH sensor
Scaling: Customer
Unit: pH
Min. value
0
Max. value
14
Slope
1.14 mV/pH
Fig. 70: Configuring 4 ... 20 mA analogue or potentiometric inputs
4.
5.
6.
Start delay time
pH
pH
7.
8.
A3113
A3114
