8.1.3 Menu: Configuration and installation of the outputs

1
3
5
Fig. 78: General symbols
8.1.3.1 Relay outputs in metering (On/Off) control mode
Temperature sensor: the pH measurement is dependent on the
temperature of the sample medium. You have the option of
selecting a temperature sensor (if one is installed) under
'Temperature compensation' . The temperature sensor is used to
adjust the measurement, correlated to the temperature of the
sample medium. The value displayed is then the compensated
value and no longer the measured value.
It is possible to select a temperature compensation sensor to
adjust the pH value to the temperature of the sample medium. This
sensor is "optional" and is not included in the basic calculation.
'OUTPUTS' menu lets you access the configuration of the
The
relays and the 4 ... 20 mA outputs to be used. Press
to open the following screen.
Output settings
Relay with power supply
Metering
C.R.T. relay
Not used
Electronic relay
Not used

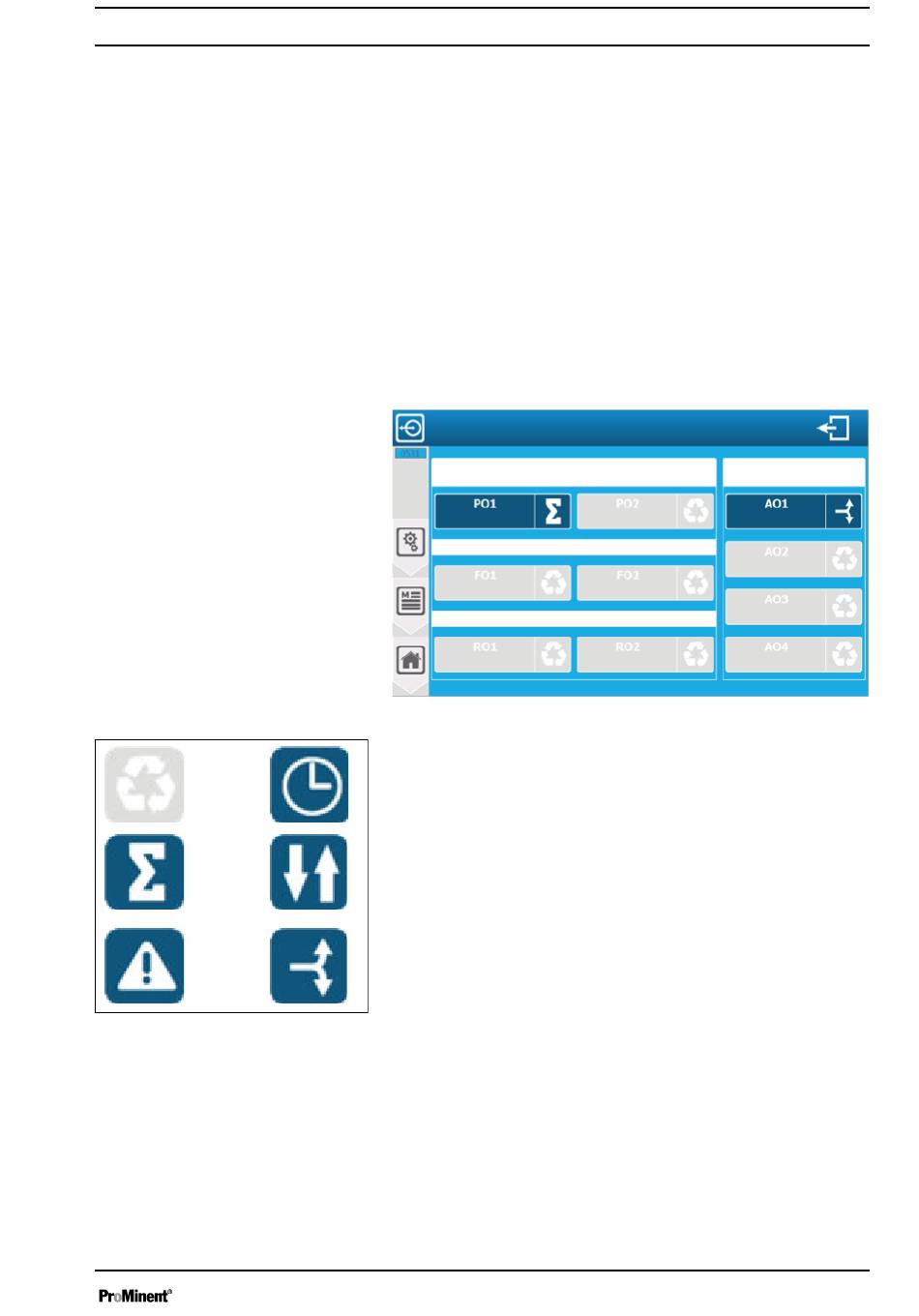

Fig. 77: Menu: Configuration and installation of the outputs
1 Unused output
2 Timer-controlled output
3 Metering-controlled output
2
4 Status-controlled output (contact)
5 Alarm-controlled output
6 4 ... 20 mA transfer output
The screen displays the configured and unused outputs. You can
4
configure its installation by pressing configured outputs, changing
the configuration or by pressing an unused output.
PO1 and PO2: self-powered relay outputs. These outputs do not
have pulse frequency modulation (PFM).
6
FO1 and FO2 CRT: potential-free relay outputs. These outputs
have pulse frequency modulation (PFM) but are limited to 180
pulses per minute.
A3124
RO1 and RO2: electronic relay outputs (single contact). These out‐
puts have pulse frequency modulation (PFM), programmable up to
500 pulses/minute.
For your convenience, the names of the outputs POx, FOx, ROx,
AOx are screen printed in front of the terminal of your device.
An example of processing a relay in metering mode. Press
[PO1 metering ∑] to open the following screen.
Setting measuring and control parameters
Not used
Not used
Not used
'OUTPUTS'
Analogue outputs
Transfer
Not used
Not used
Not used
