Communication programming instructions

7 Communication programming instructions

7.1 Power supply output connector (PWR)

7.2 RS485 communication bus connections

58
If you wish, you can use chlorine or bromine sensors that require
an external power supply.

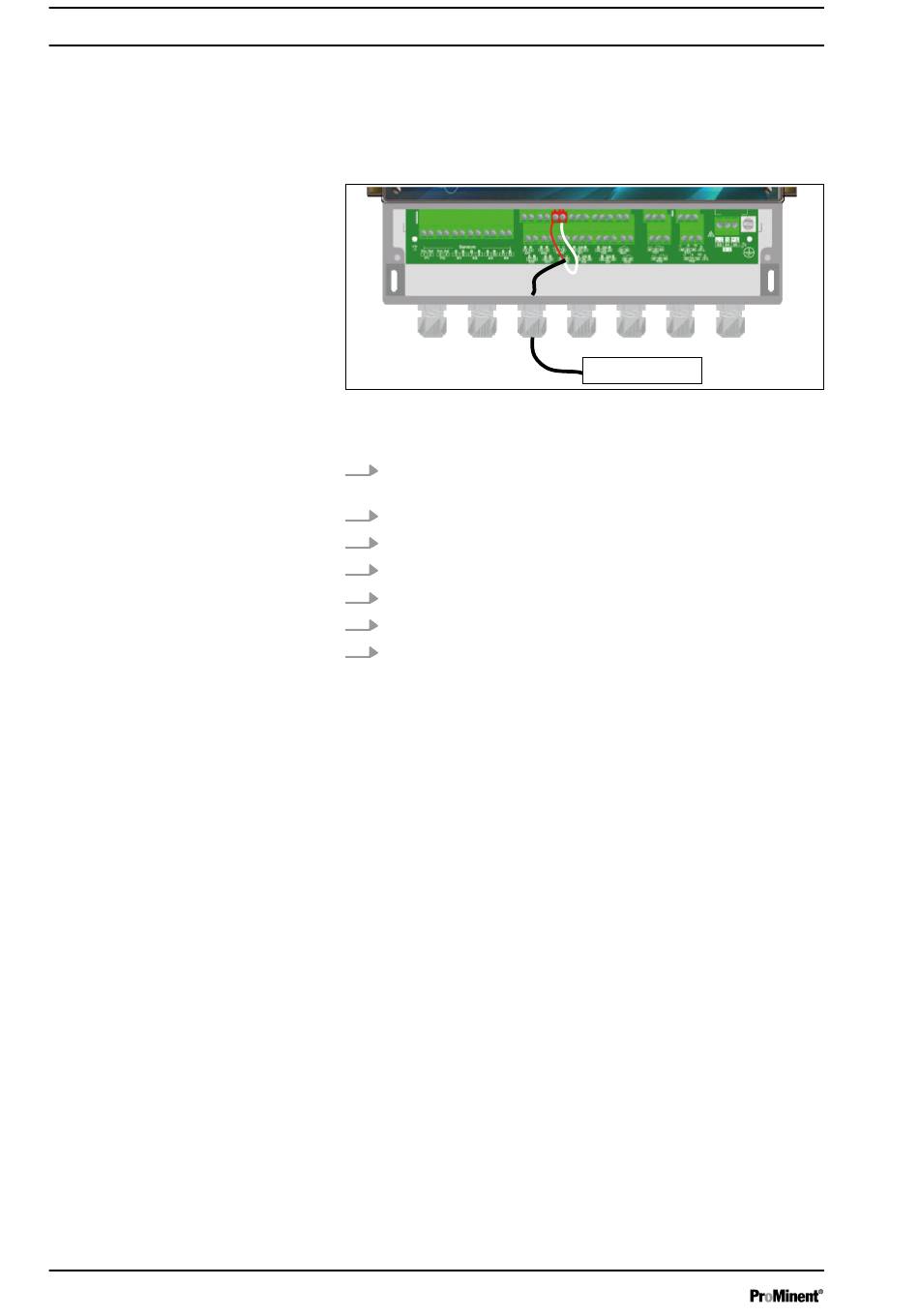

Fig. 54: Power supply output connector (PWR)
1 DWR equipment
1. Use a 2-lead cable designed appropriately for use for voltage
and power.
2. Remove the protective sleeve of the cable.
3. Strip away 7 mm of the insulation on the leads.
4. Guide the cable through the cable gland.
5. Connect the lead (plus) to the terminal block (+12 V) 17.
6. Connect the lead (minus) to the terminal block (C) 18.
7. Tighten the cable gland to make a seal.
The device has an RS485 communication port for connection to a
computer. The computer must be equipped with a 485-port and
communication software to record the measured values, alarms,
and various statuses of the device.
1
A3018
