4.3.6 Primary power supply

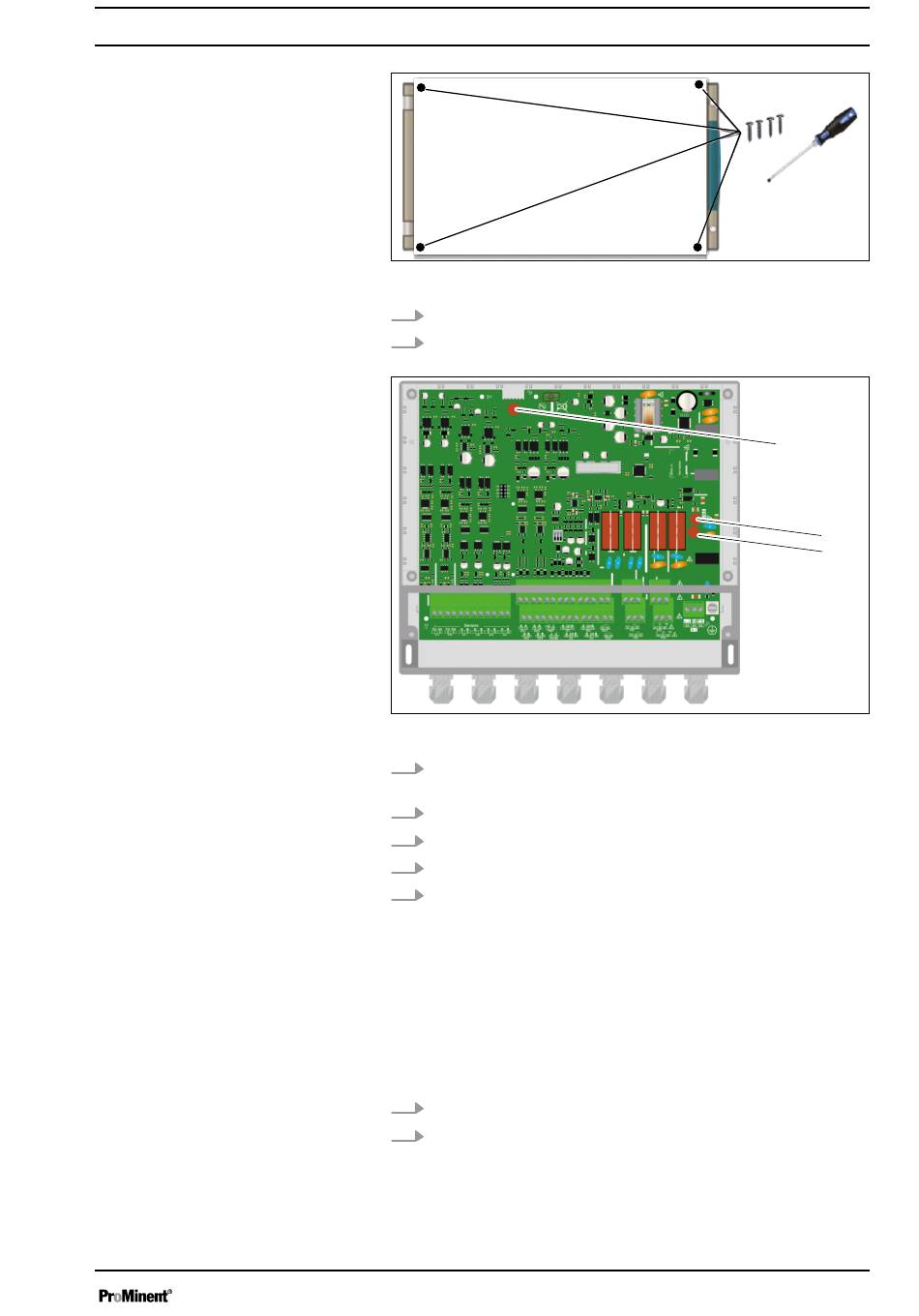

Fig. 6: 4 screws
3.
Use an appropriate screwdriver to loosen the 4 screws.
4.
Disconnect the connecting ribbon cable between the lower
circuit board and the upper part of the device.
Fig. 7: Fuse (F1 or F2)
5.
Look for the fuse to be replaced (F1 or F2) on the lower cir‐
cuit board.
6.
Remove the fuse to be replaced.
7.
Fit a new fuse with the correct power rating.
8.
Reconnect the connecting ribbon cable.
9.
Use an appropriate screwdriver to tighten the 4 screws.
The device has its own wide range power unit. The device can be
operated with an alternating voltage of between 90 V ... 240 V
50/60 Hz.
The device does not have its own mains switch. The device is fed
directly when it is connected to the mains/power supply.
1.
Use a 3-lead 1.5 mm
2.
Strip away 7 mm of the insulation on the leads.
Installation and assembly
cable to connect up the power supply.
2
A2995
F5
F1
F2
A2996
19
