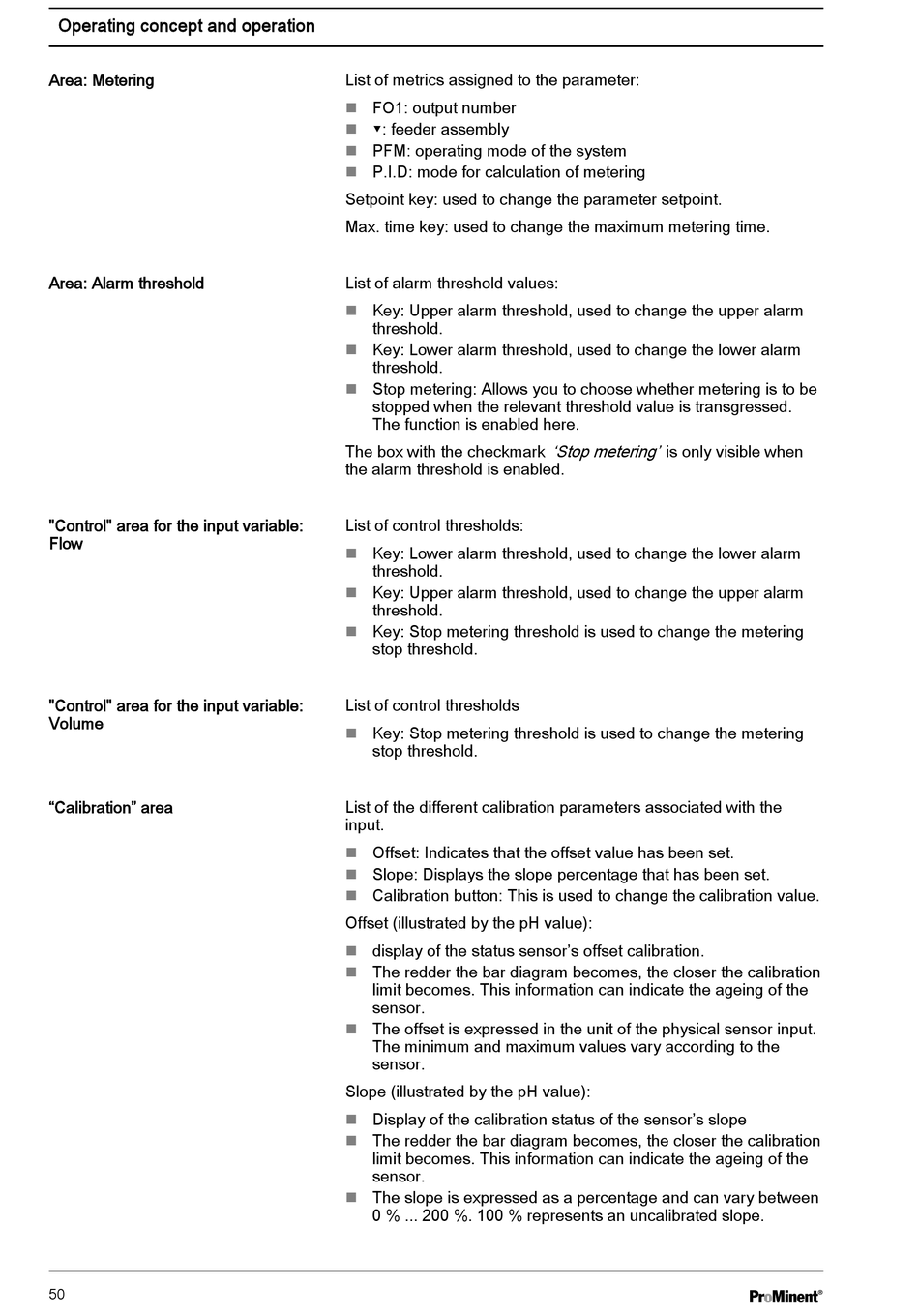

Operating concept and operation
Area: Metering
Area: Alarm threshold
"Control" area for the input variable:
Flow
"Control" area for the input variable:
Volume
"Calibration" area
50
List of metrics assigned to the parameter:
FO1: output number
n
▼: feeder assembly
n
PFM: operating mode of the system
n
P.I.D: mode for calculation of metering
n
Setpoint key: used to change the parameter setpoint.
Max. time key: used to change the maximum metering time.
List of alarm threshold values:
Key: Upper alarm threshold, used to change the upper alarm
n
threshold.
Key: Lower alarm threshold, used to change the lower alarm
n
threshold.
Stop metering: Allows you to choose whether metering is to be
n
stopped when the relevant threshold value is transgressed.
The function is enabled here.
The box with the checkmark
the alarm threshold is enabled.
List of control thresholds:
Key: Lower alarm threshold, used to change the lower alarm
n
threshold.
Key: Upper alarm threshold, used to change the upper alarm
n
threshold.
Key: Stop metering threshold is used to change the metering
n
stop threshold.
List of control thresholds
Key: Stop metering threshold is used to change the metering
n
stop threshold.
List of the different calibration parameters associated with the
input.
Offset: Indicates that the offset value has been set.
n
Slope: Displays the slope percentage that has been set.
n
Calibration button: This is used to change the calibration value.
n
Offset (illustrated by the pH value):
display of the status sensor's offset calibration.
n
The redder the bar diagram becomes, the closer the calibration
n
limit becomes. This information can indicate the ageing of the
sensor.
The offset is expressed in the unit of the physical sensor input.
n
The minimum and maximum values vary according to the
sensor.
Slope (illustrated by the pH value):
Display of the calibration status of the sensor's slope
n
The redder the bar diagram becomes, the closer the calibration
n
limit becomes. This information can indicate the ageing of the
sensor.
The slope is expressed as a percentage and can vary between
n
0 % ... 200 %. 100 % represents an uncalibrated slope.
'Stop metering' is only visible when
