'User' - 'OUTPUTS TEST' menu

9.7

'User' - 'INFO' menu

9.8
Outputs test
PO1 Metering
FO1 alarm
RO1 Not used
Transfer Not used

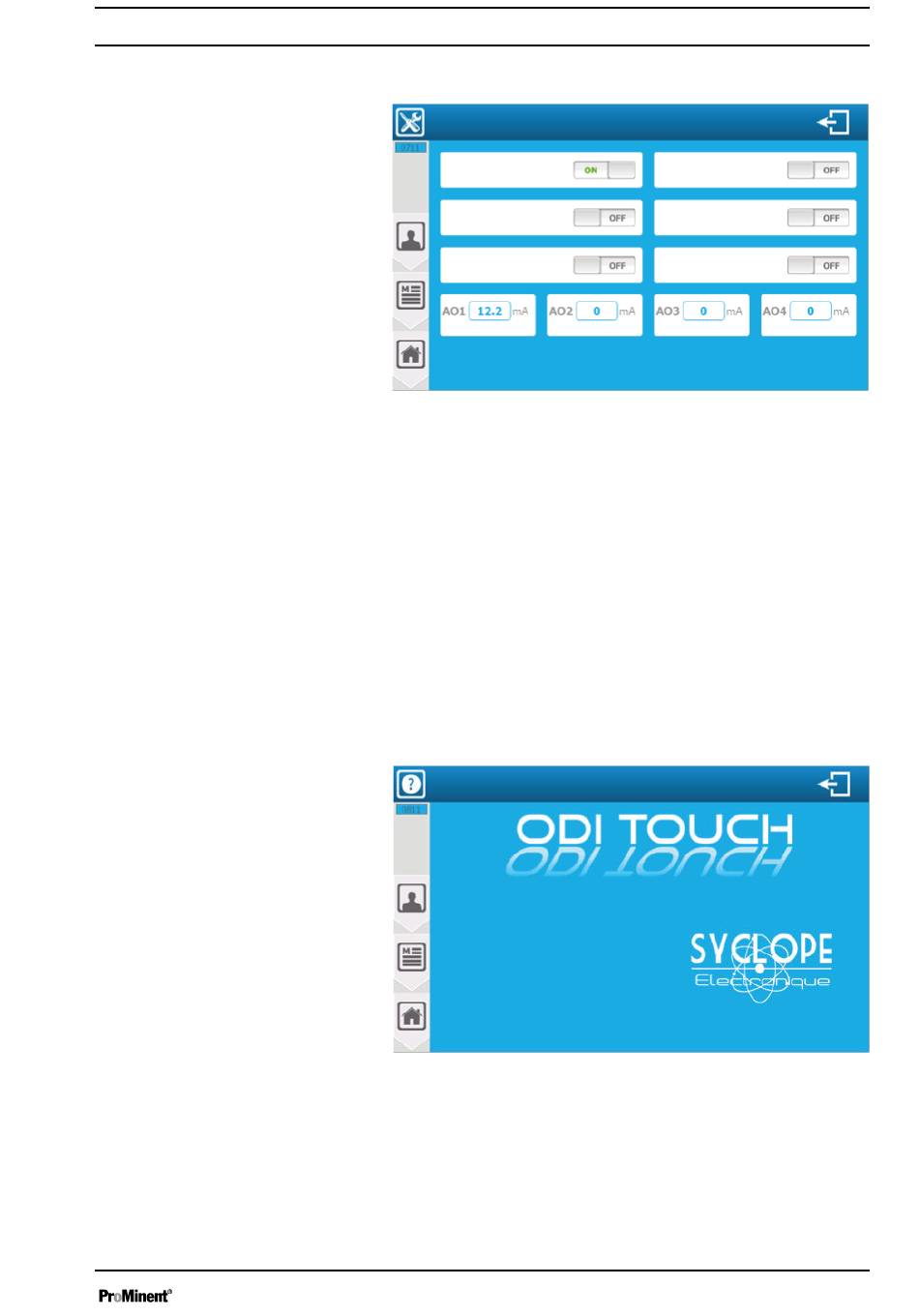

Fig. 124: 'User' - 'OUTPUTS TEST' menu by way of example
' PO1 metering' : if the name and function of the affected output
are affected, then press the affected display to switch the relay on
and off. Each press reverses the state.
'OFF' = Relay output is inactive.
'ON' = Relay output is active.
' AO1 transfer' : Enter the name and the affected function of the
output, then press the affected display to open the numeric key‐
board and enter the required value.
Unaffected outputs can also be tested.
'INFO' menu you can view the different versions of the
In the
installed modules and the serial number of the device.
Information
Software versions:
Interface: 1.08 beta
Wi-fi: xxxxx
Controller: xxxxx
PI2 input: xxxxx
PI2 input: xxxxx
AI1 input: xxxxx
AI2 input: xxxxx
PO1&2 outputs: xxxxx
PO3&4 outputs: xxxxx
MO1 module: xxxxx
Fig. 125: 'User' - 'INFO' menu
The controller consists of different firmware. It is possible to view
the installed modules and their versions on this screen.
Serial number - The serial number of your controller (unique).
If an element is greyed out, it means that the function is not avail‐
able.
'USER' programming screen
PO2 Metering
FO2 Not used
RO2 Not used
Not used Not used
Serial number: 3.141592653589793238462
A3183
A3184
