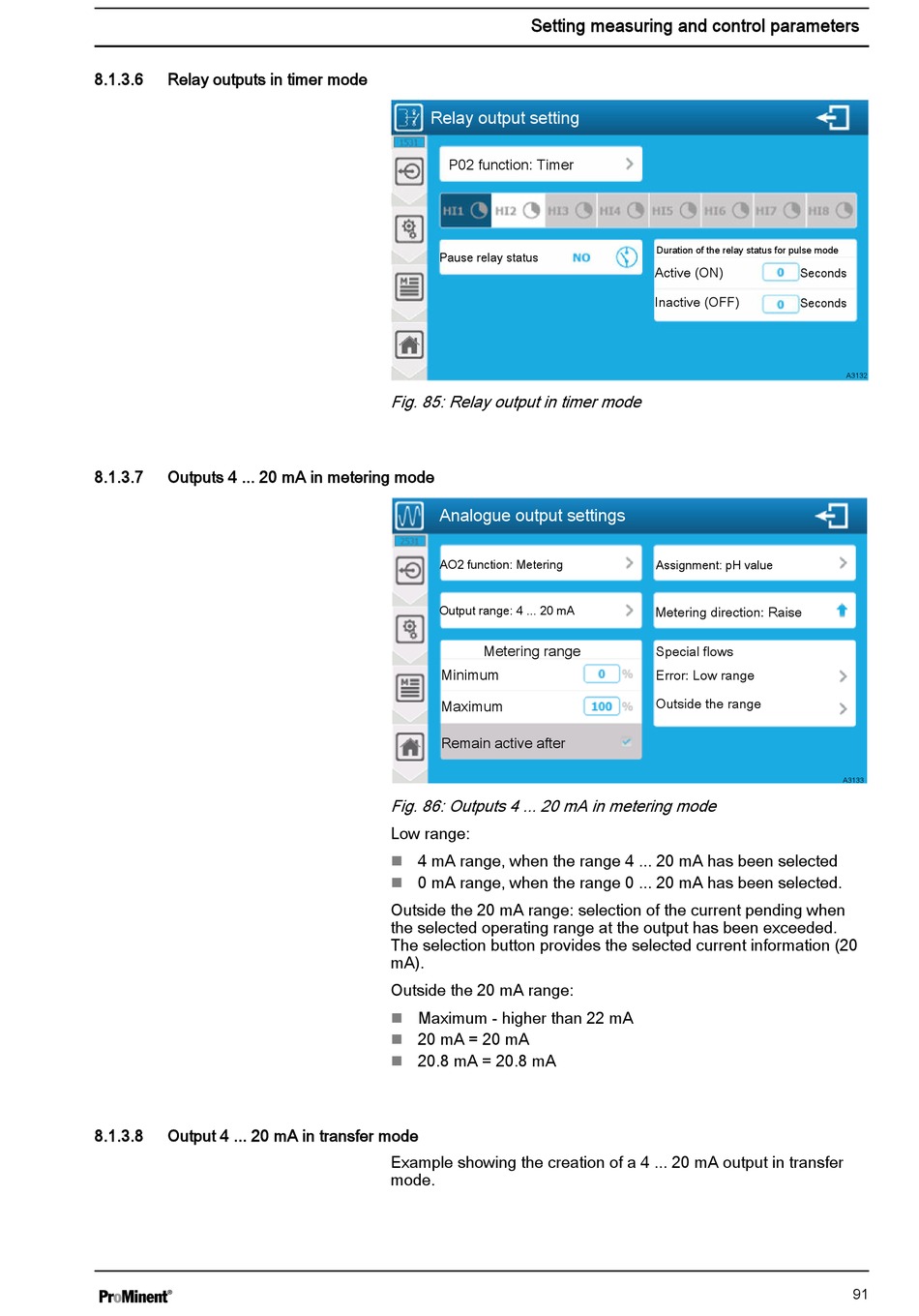

8.1.3.6 Relay outputs in timer mode
8.1.3.7 Outputs 4 ... 20 mA in metering mode
8.1.3.8 Output 4 ... 20 mA in transfer mode
Setting measuring and control parameters
Relay output setting
P02 function: Timer
Pause relay status
Fig. 85: Relay output in timer mode
Analogue output settings
AO2 function: Metering
Output range: 4 ... 20 mA
Metering range
Minimum
Maximum
Remain active after
Fig. 86: Outputs 4 ... 20 mA in metering mode
Low range:
4 mA range, when the range 4 ... 20 mA has been selected
n
0 mA range, when the range 0 ... 20 mA has been selected.
n
Outside the 20 mA range: selection of the current pending when
the selected operating range at the output has been exceeded.
The selection button provides the selected current information (20
mA).
Outside the 20 mA range:
Maximum - higher than 22 mA
n
20 mA = 20 mA
n
20.8 mA = 20.8 mA
n
Example showing the creation of a 4 ... 20 mA output in transfer
mode.
Duration of the relay status for pulse mode
Active (ON)
Seconds
Inactive (OFF)
Seconds
Assignment: pH value
Metering direction: Raise
Special flows
Error: Low range
Outside the range
A3132
A3133
