Communication programming instructions

7.6 Modbus communication register

70
Communication
INFO
Communication information
SSID: Rooftop pool
Status: Connected
Signal: Very good
Unique ID 00:00:F3:EB:35:E5
Hose name: ODT_W194120974
DHCP enabled: YES
IP address: 10.10.1.91
Screen 255.255.255.0
Gateway 10.10.1.200
DNS1 10.10.1.100
DNS2 10.10.1.200
Bandwidth: 19200
Parity: None
Address: 1
Port: 502
Periphery: Wi-Fi

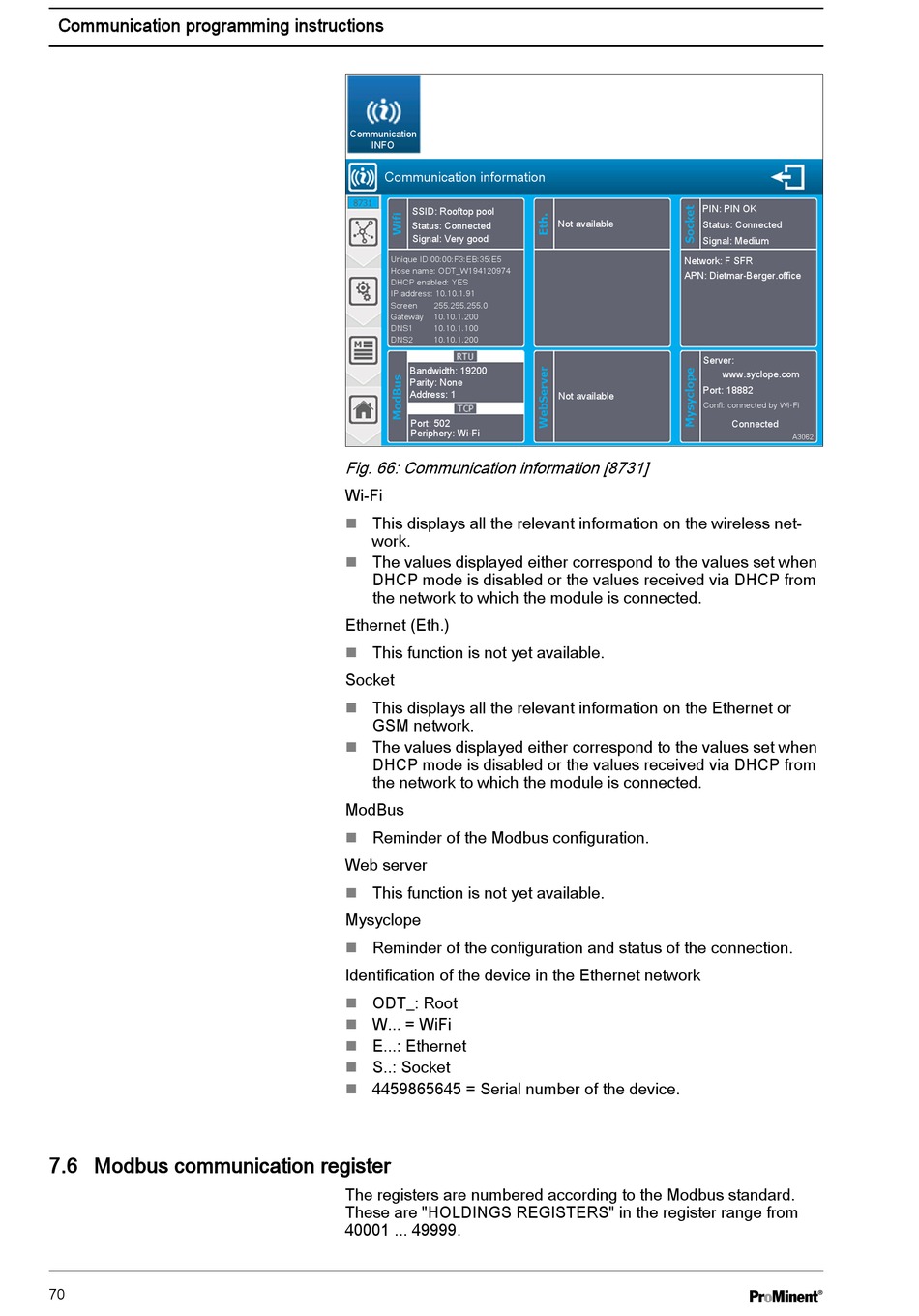

Fig. 66: Communication information [8731]
Wi-Fi
This displays all the relevant information on the wireless net‐
n
work.
The values displayed either correspond to the values set when
n
DHCP mode is disabled or the values received via DHCP from
the network to which the module is connected.
Ethernet (Eth.)
This function is not yet available.
n
Socket
This displays all the relevant information on the Ethernet or
n
GSM network.
The values displayed either correspond to the values set when
n
DHCP mode is disabled or the values received via DHCP from
the network to which the module is connected.
ModBus
Reminder of the Modbus configuration.
n
Web server
This function is not yet available.
n
Mysyclope
Reminder of the configuration and status of the connection.
n
Identification of the device in the Ethernet network
ODT_: Root
n
W... = WiFi
n
E...: Ethernet
n
S..: Socket
n
4459865645 = Serial number of the device.
n
The registers are numbered according to the Modbus standard.
These are "HOLDINGS REGISTERS" in the register range from
40001 ... 49999.
PIN: PIN OK
