Output
AO1
AO2
AO3
AO4

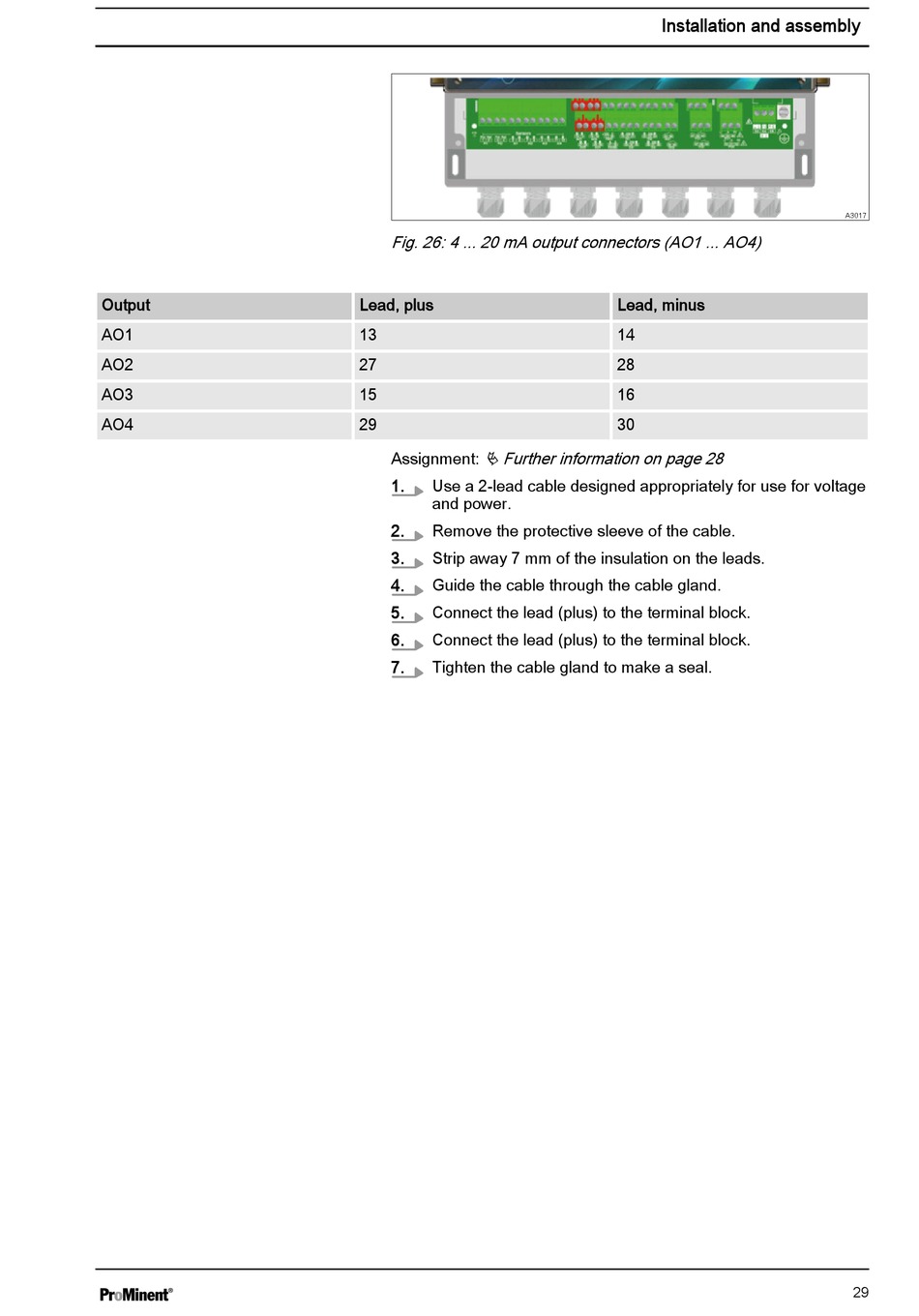

Fig. 26: 4 ... 20 mA output connectors (AO1 ... AO4)
Lead, plus
13
27
15
29
Assignment:
Ä Further information on page 28
1.
Use a 2-lead cable designed appropriately for use for voltage
and power.
2.
Remove the protective sleeve of the cable.
3.
Strip away 7 mm of the insulation on the leads.
4.
Guide the cable through the cable gland.
5.
Connect the lead (plus) to the terminal block.
6.
Connect the lead (plus) to the terminal block.
7.
Tighten the cable gland to make a seal.
Installation and assembly
Lead, minus
14
28
16
30
A3017
29
