Emergency System Multi-Cell Installation
With the exception of power input terminations, ArcSystem emergency system installation
requirements are the same as those of the standard ArcSystem.

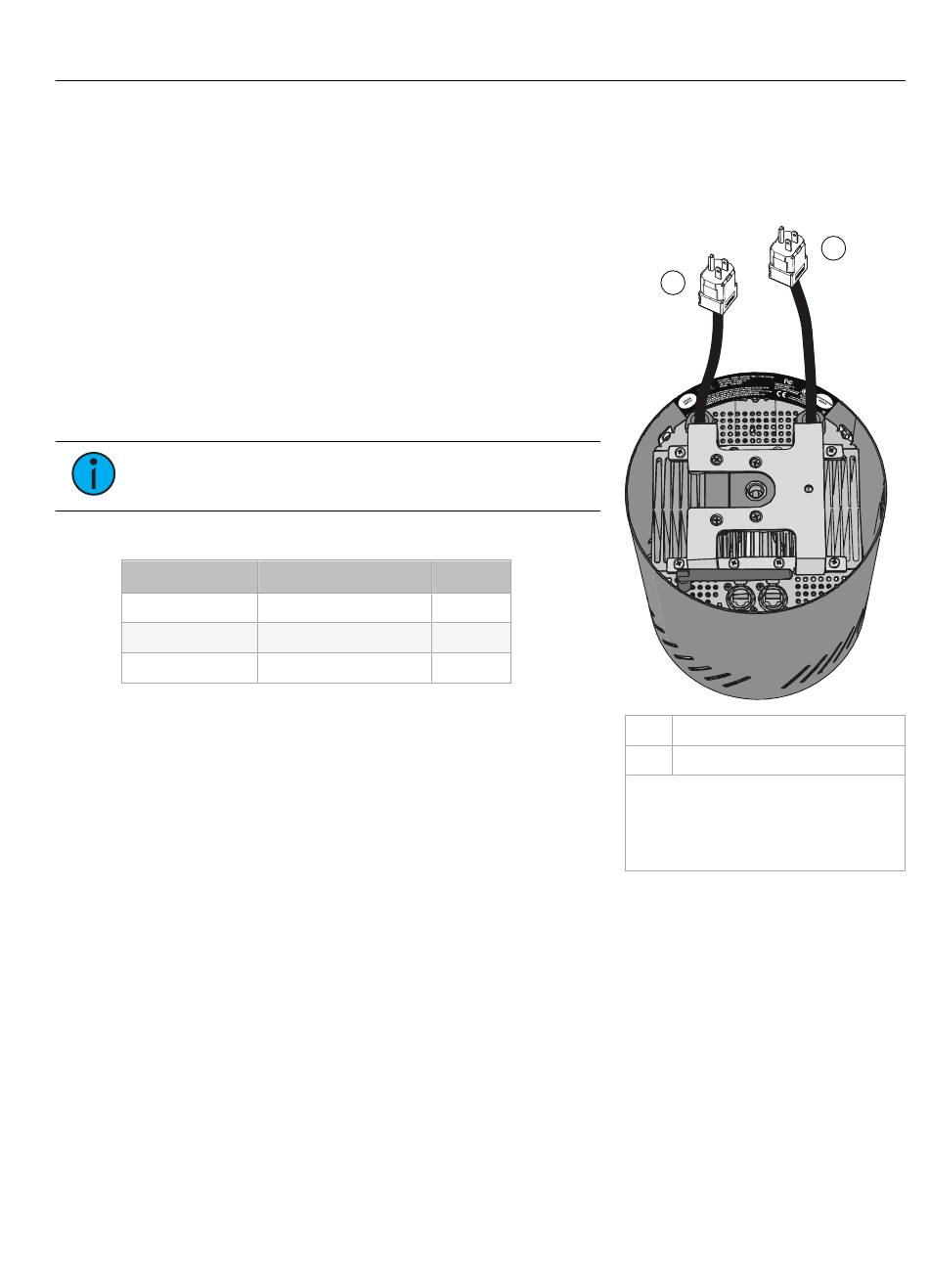

Installing Four-Cell Round Emergency Luminaires
ArcSystem Pro Four-Cell Round emergency luminaires are
supplied with hard-wired power cables with NEMA 5-15
connectors for North America and bare ends for Europe and
the rest of the world. The cables are labeled near the strain
reliefs for Maintained Input and Sense Input.
Aside from having multiple power cables, these luminaires
are installed in the same way that standard ArcSystem Pro
Four-Cell Round luminaires are installed. See
100–240 V Four-Cell Round Luminaires on page 9
Note:
are only for use in 100–125 V applications.
Factory Wire Colors
Model
Europe
Europe
Europe
Emergency System Multi-Cell Installation
Luminaires with NEMA 5-15 connectors
Color
green/yellow
brown
blue
Installing
.
Type
earth
live
neutral
A
A
Sense Input*
B
Maintained Input*
* European models have cables
with bare ends. Actual cable
length is 2.1 m (7 ft) for all
models.
B
23
