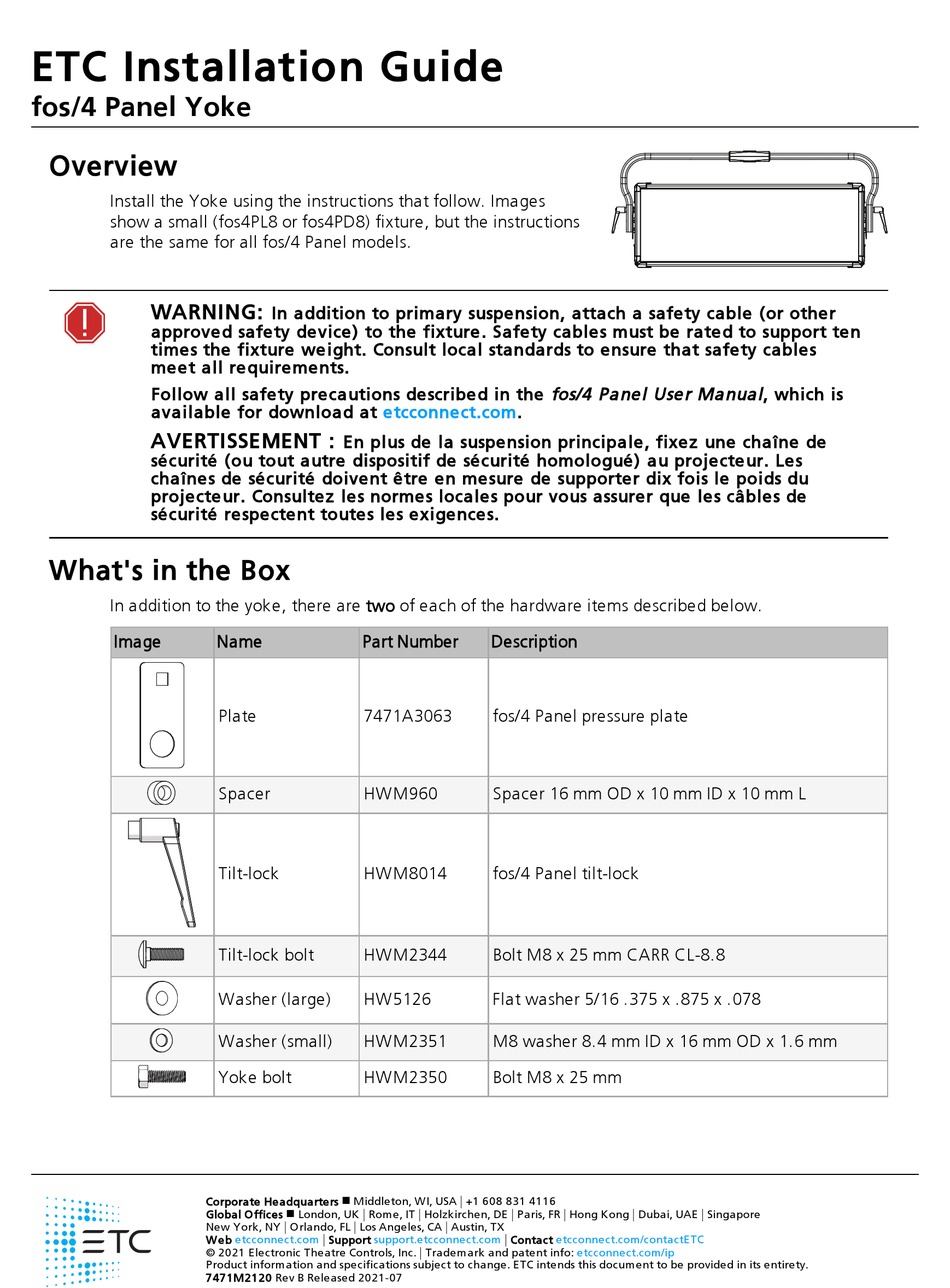

ETC Installation Guide

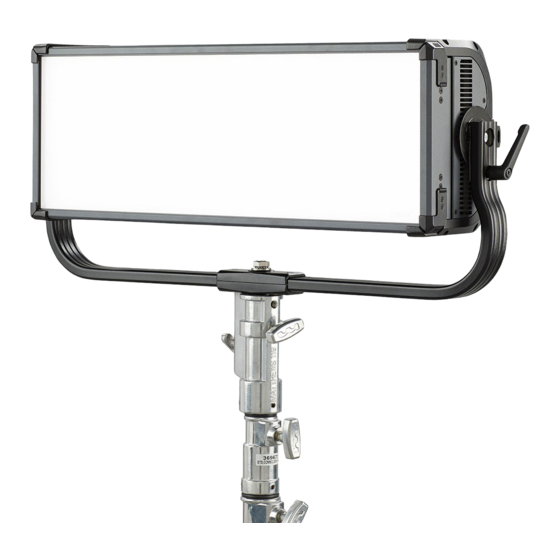

fos/4 Panel Yoke

Overview

Install the Yoke using the instructions that follow. Images
show a small (fos4PL8 or fos4PD8) fixture, but the instructions
are the same for all fos/4 Panel models.
WARNING:
approved safety device) to the fixture. Safety cables must be rated to support ten
times the fixture weight. Consult local standards to ensure that safety cables
meet all requirements.
Follow all safety precautions described in the fos/4 Panel User Manual , which is
available for download at etcconnect.com.
AVERTISSEMENT :
sécurité (ou tout autre dispositif de sécurité homologué) au projecteur. Les
chaînes de sécurité doivent être en mesure de supporter dix fois le poids du
projecteur. Consultez les normes locales pour vous assurer que les câbles de
sécurité respectent toutes les exigences.

What's in the Box

In addition to the yoke, there are two of each of the hardware items described below.
Corporate Headquarters
Global Offices
New York, NY
Web
© 2021 Electronic Theatre Controls, Inc.
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7471M2120 Rev B Released 2021-07
In addition to primary suspension, attach a safety cable (or other
En plus de la suspension principale, fixez une chaîne de
Name Part Number
Plate 7471A3063
Spacer HWM960
Tilt-lock HWM8014
Tilt-lock bolt HWM2344
Washer (large) HW5126
Washer (small) HWM2351
Yoke bolt HWM2350
n
Middleton, WI, USA
n |
London, UK Rome, IT
| |
Orlando, FL Los Angeles, CA
etcconnect.com | Support support.etcconnect.com
Description
fos/4 Panel pressure plate
Spacer 16 mm OD x 10 mm ID x 10 mm L
fos/4 Panel tilt-lock
Bolt M8 x 25 mm CARR CL-8.8
Flat washer 5/16 .375 x .875 x .078
M8 washer 8.4 mm ID x 16 mm OD x 1.6 mm
Bolt M8 x 25 mm
