Install the Luminaire

Instructions for installing 100–277 V standard luminaires are below. See
Emergency Multi-Cell Luminaires on page 24
luminaires.

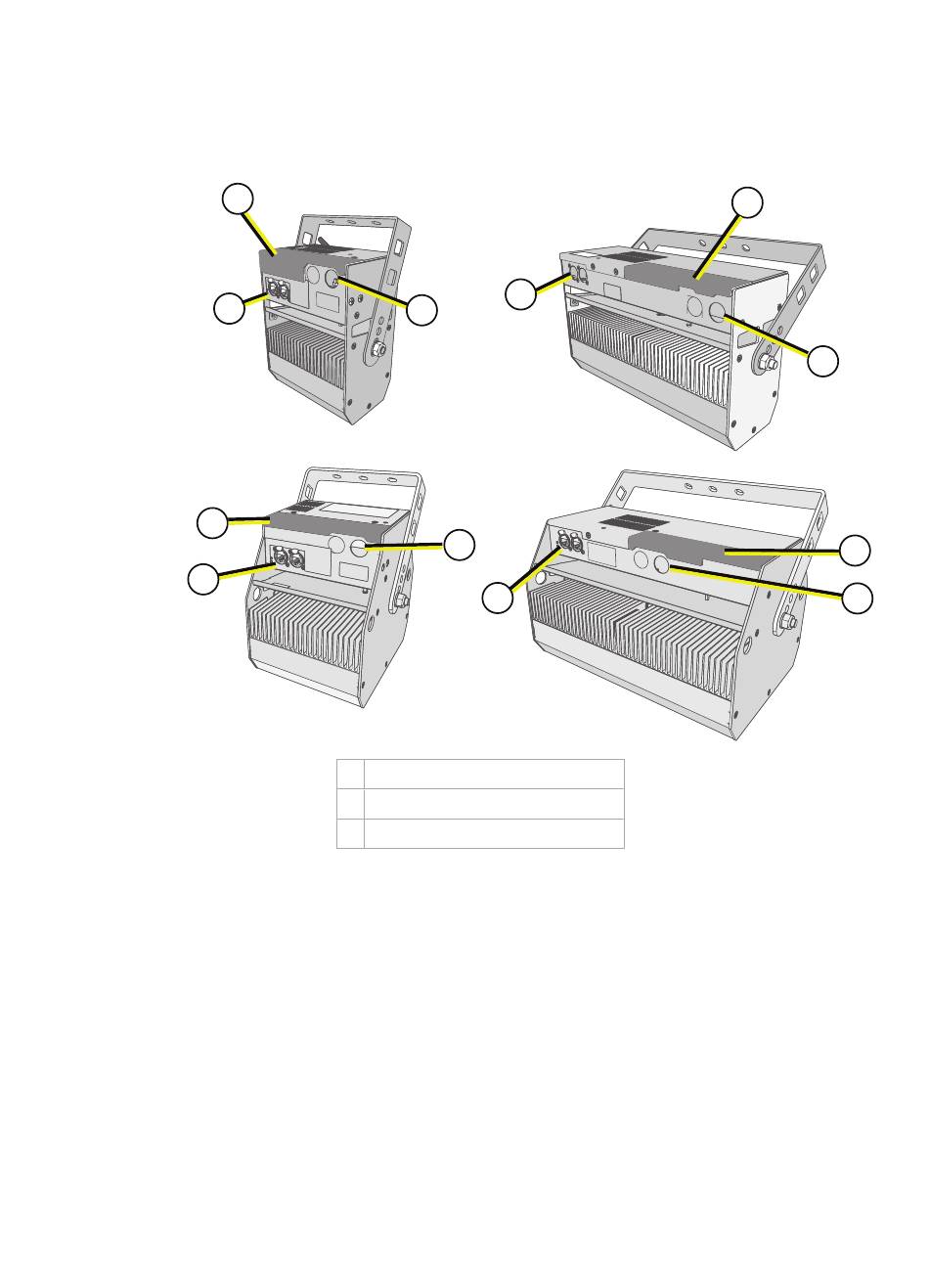

Two-cell
luminaire
A
C
Four-cell
square luminaire
A
C
1. Make sure power is off at the main circuit breaker.
2. Attach a C-clamp or other mounting hardware (not provided) to the yoke of the luminaire.
3. Attach the luminaire to a pipe or other approved mounting device.
4. Insert or attach additional accessories, if desired.
5. Using a Phillips head screwdriver, remove the screws securing the cover to the luminaire's
wiring compartment. Set the screws aside for later re-installation. The cover is grounded
to the enclosure by a tether.
6. Install conduit hardware at the conduit entry in the side of the wiring compartment.
Installing 100–277 V Multi-Cell Luminaires
for instructions on installing 100–277 V emergency
Four-cell
linear luminaire
C
B
Eight-cell
luminaire
B
C
A wiring compartment
B conduit entry for 1/2 in conduit
C DMX in and thru
Installing 100–277 V
A
B
A
B
