Installing 100–240 V Four-Cell Round Luminaires
Note:
luminaire.

Installing to Threaded Rod

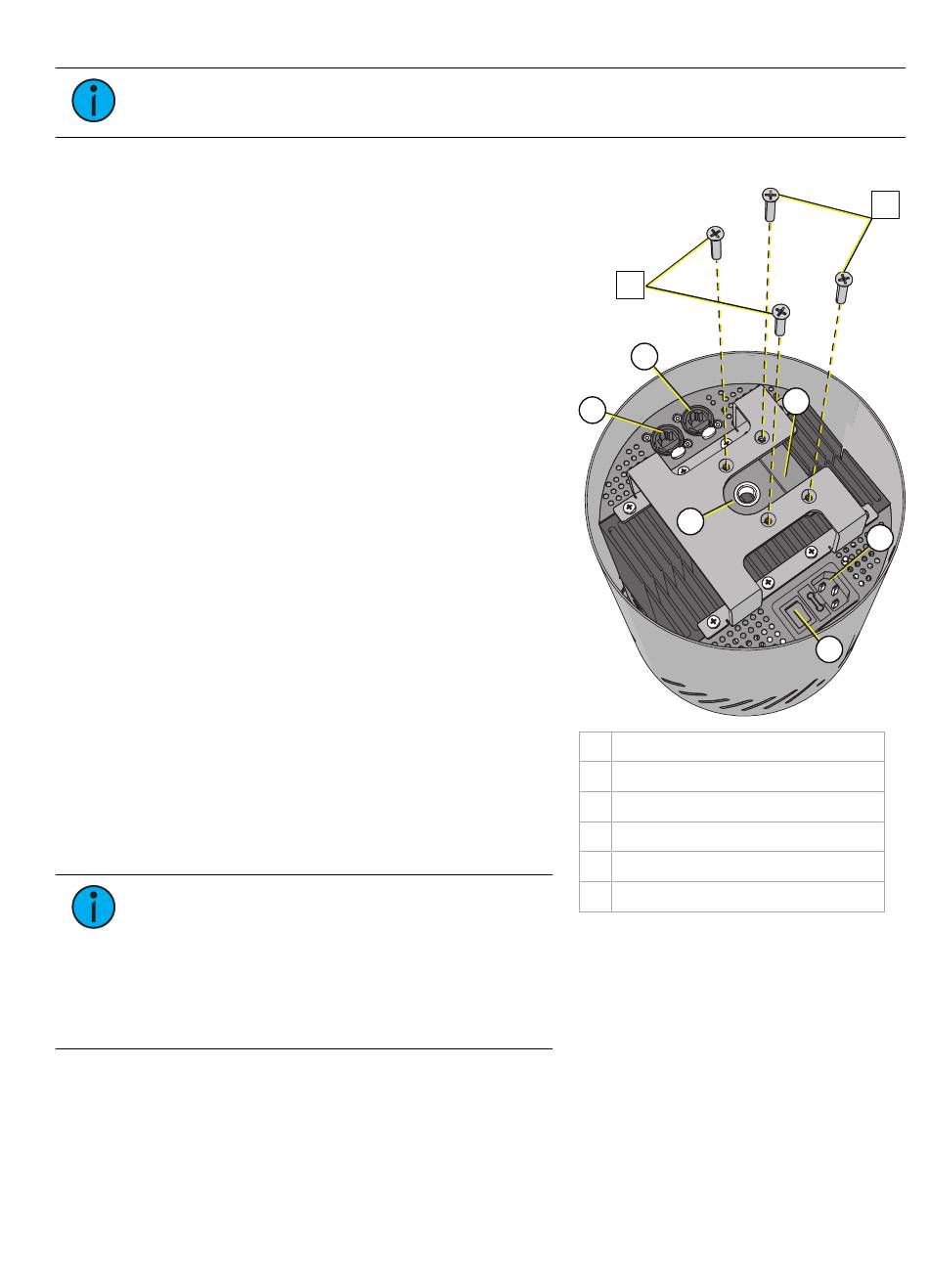

The luminaire attaches to threaded rod with a two-
piece nut: a nut with a threaded hole for the rod (A in
the illustration below), and a bar to secure the nut (B
in the illustration below). Three types of nut are
provided to fit different threaded rods:
1/2-13 inch
•
M10x1.5
•
M12x1.75
•
Installation Steps
1. Choose one of the nuts discussed above (A)
and install it with the two provided M4x16
flathead screws (1, shown to the right).
2. Install the other piece of the nut (B) with the
two provided M4x16 flathead screws (2,
shown to the right).
3. Attach the luminaire to installed threaded rod.
4. Plug in the provided power cable to E in the
illustration to the right.
5. If using hard wired DMX, plug in the RJ45
connector into the "DMX IN" port on the top
of the luminaire (C in the illustration to the
right).
6. If linking additional luminaires via DMX, plug
a RJ45 cable into the "DMX THRU" port on the
rear of the luminaire (D in the illustration to
the right).
7. Toggle the power switch to "ON" (F in the
illustration to the right).
Note:
terminating. You must terminate the last
luminaire in line with a 120 Ω resistor.
To purchase an RJ45 terminator, please
contact your ETC customer service
representative and request part number
N4086.
Installing 100–240 V Multi-Cell Luminaires
Mounting hardware and installation location must support the weight of the
ArcSystem luminaires are not self
1
D
C
A
A Threaded nut
B Bar
C "DMX IN"
D "DMX THRU"
E Input power connector
F Power switch
2
B
E
F
