Installing 100–277 V Emergency Multi-Cell
Luminaires
Instructions for installing 100–277 V emergency luminaires are below. See
Multi-Cell Luminaires on page 10
For instructions on installing the 100–277 V emergency pendant, see
Emergency Four-Cell Pendant on page 27
Two-cell
luminaire
A
C
Four-cell
square luminaire
A
C
With the exception of power input terminations, ArcSystem 100–277 V emergency system
installation requirements are the same as those of ArcSystem 100–277 V non-emergency
systems. Complete the installation as follows, referencing these sections for installation details:
1. Complete the steps of
2. Install conduit hardware at the knockout or second hole in the side of the wiring
compartment.
Note:
multi-cell luminaires.
24
for instructions on installing 100–277 V standard luminaires.

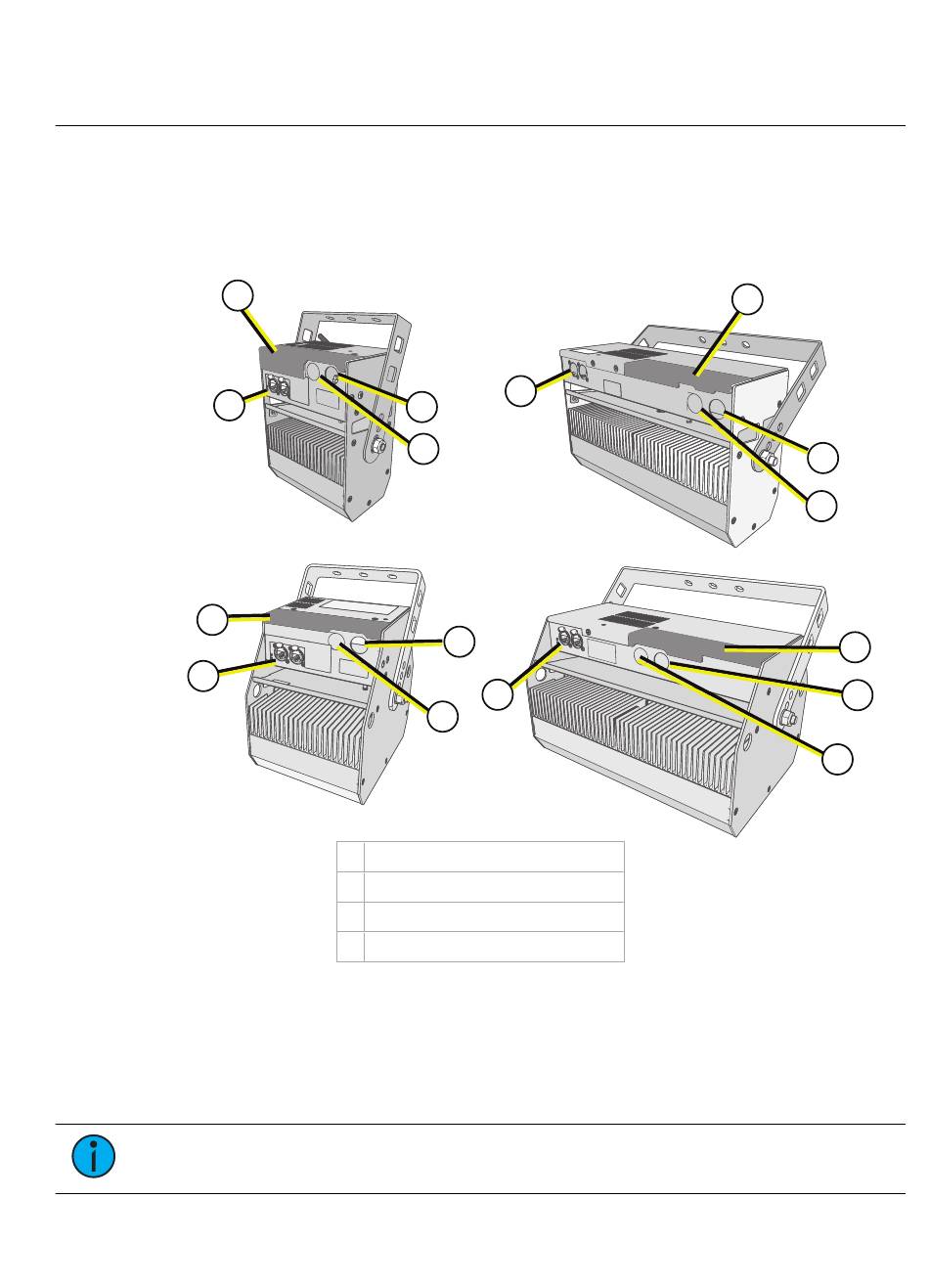

A wiring compartment
B conduit entry for 1/2 in conduit
C DMX in and thru
D knockout for 1/2 in conduit
Installing 100–277 V Multi-Cell Luminaires on page 10
Use flexible metal conduit when installing and focusing 277 V emergency
.
