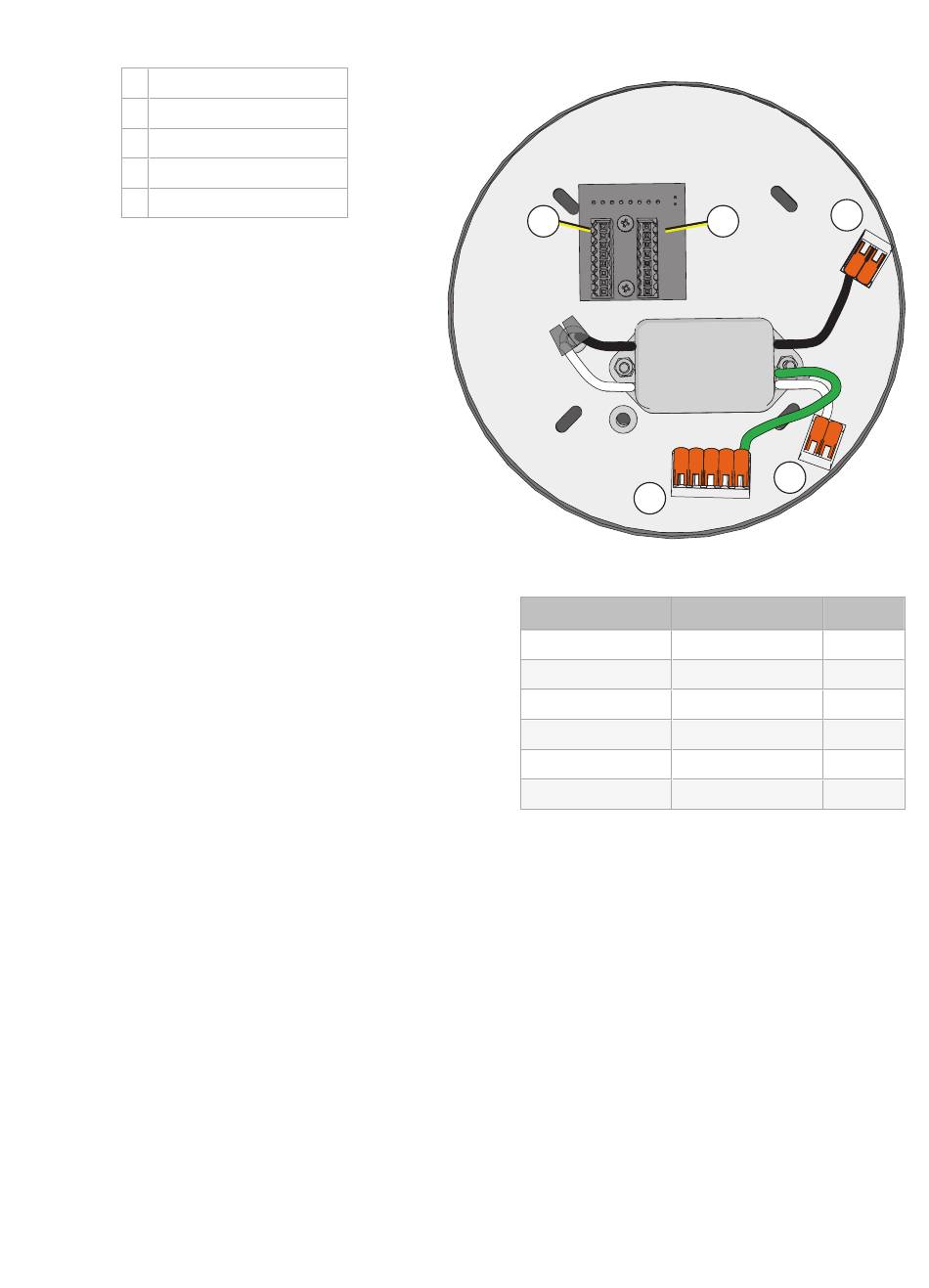

Terminate Building Wiring to the Canopy

A DMX In
B DMX Thru
C Power line/hot (black)
D Power common (white)
E Ground (green)
Terminate Power
1. See Electrical and Wiring
Specification on page 10
specification of wire and strip
length. Prepare wires
accordingly.
2. Terminate ground.
a. Locate the
WAGO connector on the
ground wire (green, E in the
illustration at
Building Wiring to the
Canopy above
b. Run a ground wire (typically
green/yellow) through
conduit, into the junction box, and
to a free position on the
WAGO connector.
c. Lift up the orange clip, insert the
ground wire, and press the clip
down onto the wire.
d. Tug gently to make sure the wire is
secure.
3. Terminate neutral.
a. Locate the WAGO connector on
the neutral wire (white, D in the
illustration at
Wiring to the Canopy above
b. Run a neutral wire (typically white or gray) through conduit, into the junction box, and
to a free position on the WAGO connector.
c. Lift up the orange clip, insert the neutral wire, and press the clip down onto the wire.
d. Tug gently to make sure the wire is secure.
4. Terminate line (hot).
a. Locate the WAGO connector on the line (hot) wire (black, C in the illustration at
Terminate Building Wiring to the Canopy above
b. Run a line (hot) wire through conduit, into the junction box, and to a free position on
the WAGO connector.
c. Lift up the orange clip, insert the line (hot) wire, and press the clip down onto the
wire.
d. Tug tently to make sure the wire is secure.
18
for
Terminate
.
Terminate Building
).
A DMX IN DMX THRU
E
Factory Wire Colors
Model Color
North America green/yellow
North America black
North America white
Europe green/yellow
Europe brown
Europe blue
).
ArcSystem Pro Multi-Cell Installation Guide
C
B
D
Type
ground
line/hot
common
earth
live
neutral
