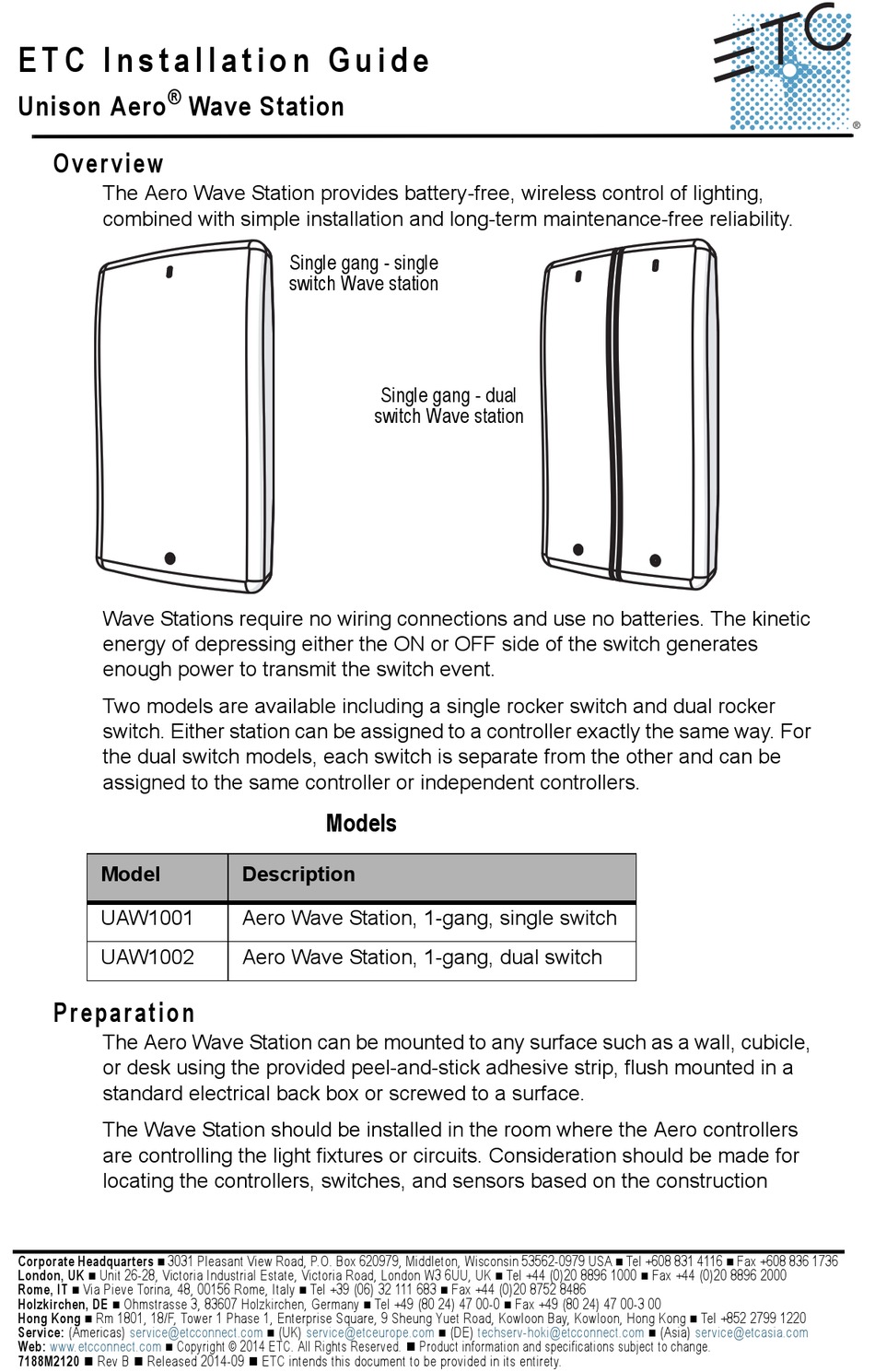

E T C I n s t a l l a t i o n G u i d e
®
Unison Aero

Overview

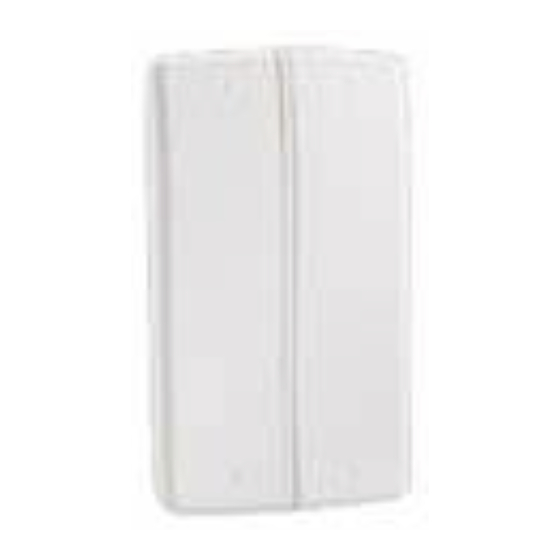

The Aero Wave Station provides battery-free, wireless control of lighting,
combined with simple installation and long-term maintenance-free reliability.
Wave Stations require no wiring connections and use no batteries. The kinetic
energy of depressing either the ON or OFF side of the switch generates
enough power to transmit the switch event.
Two models are available including a single rocker switch and dual rocker
switch. Either station can be assigned to a controller exactly the same way. For
the dual switch models, each switch is separate from the other and can be
assigned to the same controller or independent controllers.
Model
UAW1001
UAW1002
Preparat ion
The Aero Wave Station can be mounted to any surface such as a wall, cubicle,
or desk using the provided peel-and-stick adhesive strip, flush mounted in a
standard electrical back box or screwed to a surface.
The Wave Station should be installed in the room where the Aero controllers
are controlling the light fixtures or circuits. Consideration should be made for
locating the controllers, switches, and sensors based on the construction
