Terminate Power Wiring

ArcSystem 100–277 V systems are supplied with WAGO connectors in the wiring compartment
for convenient power connections in normal and emergency luminaires. ArcSystem 100–277 V
emergency systems are supplied with one three-position WAGO (ETC part number J4629,
WAGO part number 221-413) and four two-position WAGO connectors (ETC part number
J4717, WAGO part number 221-412).
Factory Wire Colors
Model Color
North America green/yellow
North America black
North America white
Europe green/yellow
Europe brown
Europe blue

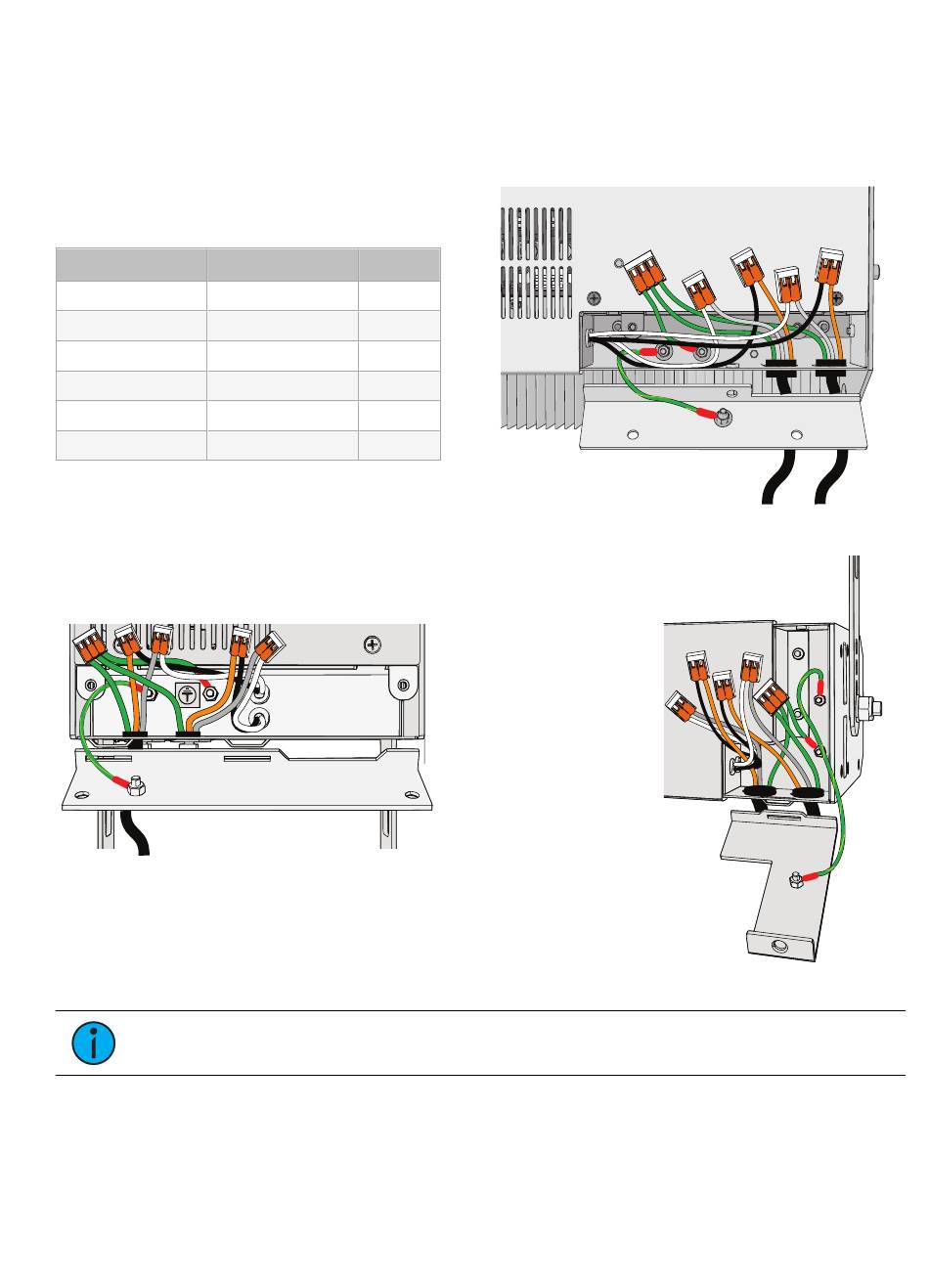

Detail of two-cell emergency luminaire or
four-cell square emergency luminaire
wiring compartment
Note:
Installing 100–277 V Emergency Multi-Cell Luminaires
Type
ground
line/hot
common
earth
live
neutral
Building wire colors may be different than shown.
Detail of eight-cell emergency luminaire
wiring compartment
Detail of four-cell linear
emergency luminaire
wiring compartment
