ETC Installation Guide
ColorSource CYC v1.7/v3.1
Overview

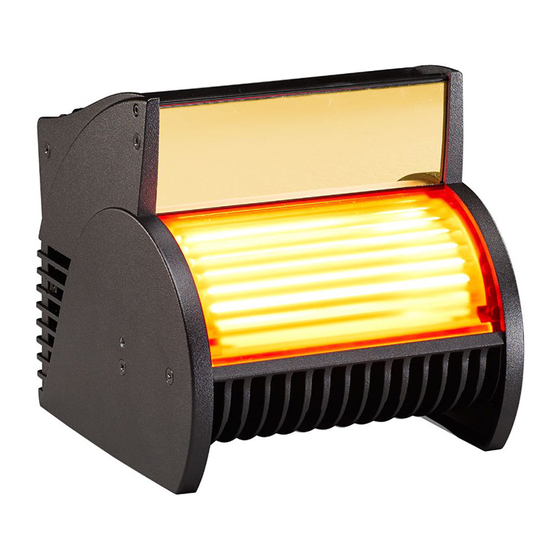

The ColorSource CYC is an affordable LED fixture that uses the RGBIL
(red, green, blue, indigo, and lime) color system to provide a rich,
bright light.
Note:
version of software. For information on updating fixture
software, see
Features described in this document require the latest
Update the Fixture Software on
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
Global Offic es n London, UK | Rome, IT | Holzkirchen, DE | Paris, FR | Hong Kong
Dubai, UAE | Singapore | New York, NY | Orlando, FL | Los Angeles, CA | Austin, TX
Web
etcconnect.com
Contac t
etcconnect.com/contactETC
Trademark and patent info:
subject to change. ETC intends this document to be provided in its entirety.
7415M 2100-1.7 Rev D Released 2022-02
| Support
support.etcconnect.com
| © 2022 Electronic Theatre Controls, Inc.
etcconnect.com/ip
| Product information and specifications
page 9.
Advertisement
Related Manuals for ETC ColorSource CYC
Summary of Contents for ETC ColorSource CYC
- Page 1 ETC Installation Guide ColorSource CYC v1.7/v3.1 Overview The ColorSource CYC is an affordable LED fixture that uses the RGBIL (red, green, blue, indigo, and lime) color system to provide a rich, bright light. Note: Features described in this document require the latest version of software.
- Page 2 WARNING: RISK OF ELECTRIC SHOCK! The light source in this luminaire is not user-replaceable, and must be replaced only by a qualified technician. Contact ETC Customer Support for assistance. AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE! La source lumineuse de ce projecteur n'est pas remplaçable par...
-
Page 3: Installation
Protective earth (ground) Protection Classe I Mise à la terre Installation Mounting Safety cable anchor point Yoke The ColorSource CYC is locking designed for floor knob mounting. You can also use the yoke accessory (included) for top-hang pipe mounting with a clamp. - Page 4 Data (DMX512/RDM): Two five-pin XLR connectors OR two • RJ45 connectors for data in and thru Conversion cables are available from ETC. Please contact your ETC customer service representative and request part number W6538 for RJ45 to female XLR or part number W6539 for RJ45 to male XLR.
- Page 5 ETC Installation Guide ColorSource CYC v1.7/v3.1 Adjust the Tilt When pipe-mounting the fixture, tilt the fixture so that the base of the fixture is perpendicular to the cyclorama. 1. Loosen, but do not remove the yoke locking knobs. 2. Tilt the fixture so that the base of the fixture is perpendicular to the cyclorama.
- Page 6 ColorSource CYC v1.7/v3.1 Note: Direct mode ( ) on the ColorSource CYC is not a calibrated mode. As a result, you may see discrepancies in color between fixtures. ETC recommends operating in one of the calibrated modes, such as 5-channel mode or RGB mode.
- Page 7 ETC Installation Guide ColorSource CYC v1.7/v3.1 Play Presets and Sequences The fixture has twelve factory-configured presets and five factory- configured sequences. When you play a preset or sequence on a fixture: The same preset number or sequence number plays on any •...
- Page 8 ETC Installation Guide ColorSource CYC v1.7/v3.1 Re-record Presets 1. Using DMX, set the desired levels for the new preset. 2. Press the Mode button to access the Presets/Sequences menu. 3. Press the Up button or Down button to navigate to the preset number that you want to re-record.
-
Page 9: Troubleshooting And Maintenance
ColorSource CYC v1.7/v3.1 Troubleshooting and Maintenance Update the Fixture Software ETC recommends using UpdaterAtor software to manage software updates. For information on UpdaterAtor, see the UpdaterAtor Software Quick Guide and the UpdaterAtor Software Release Note , which you can download from etcconnect.com. -
Page 10: Specifications And Reference
: Screen toggles between to indicate a problem • with the color calibration. The fixture will need to be returned to the ETC factory; contact your local dealer to set up a repair. : Screen toggles between to indicate that the •... - Page 11 130.4 W 0.59 A RDM Values Parameter Value Description Manufacturer ID 0x6574 Electronic Theatre Controls ColorSource CYC (v1.7) or Model ID 0x0215 ColorSource CYC CPU2 (v3.1) DMX Start Address 0x00F0 Range = 1–512 1 = 5 Channel 2 = Direct DMX Personality...
- Page 12 ETC Installation Guide ColorSource CYC v1.7/v3.1 FCC Compliance ColorSource CYC (For any FCC matters): Electronic Theatre Controls, Inc. 3031 Pleasant View Road Middleton, WI 53562 +1 (608) 831-4116 etcconnect.com This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful...
