Prepare the Cylinder and Stem

Complete the following steps as directed for the standard
Four-Cell Pendant:
1. Connect the Stem to the Cylinder on page 16
2. Wire the Cylinder on page 16

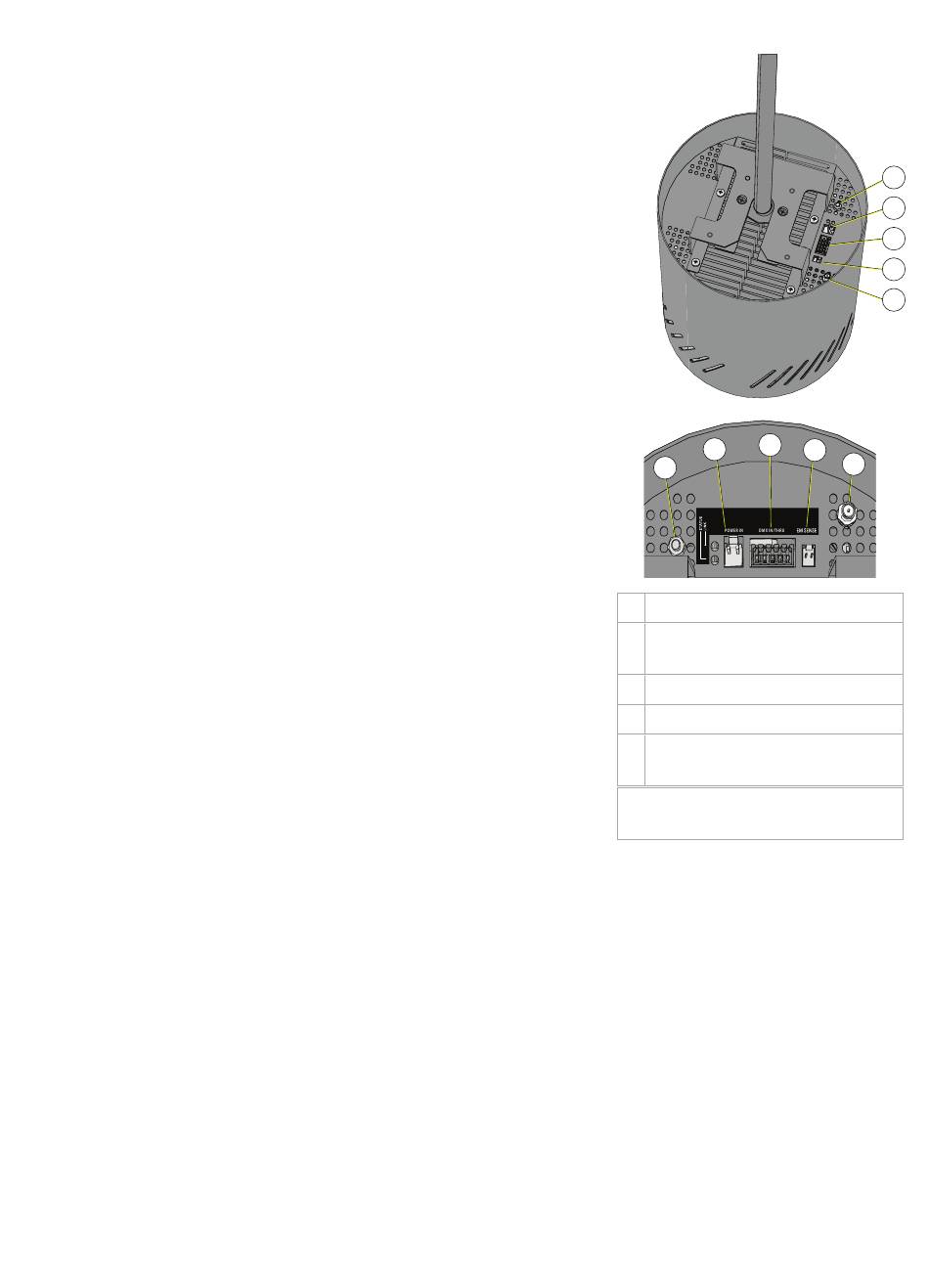

After completing the steps at the link above, install the
connector for the sense input (twisted pair, red and
black, two-wire harness) onto the mating receptacle
on the cylinder (E in the illustration to the right).
Remove the Canopy Cover on page 16
3.
4. Install the Stem Grounding Harness on page 17

Prepare the Back Box

Install the voltage barrier as directed in
on page 17 .
28
Prepare the Back Box
C
B
A
A Ground stud
"POWER IN" emergency/
B
maintained low-voltage input
C "DMX IN/THRU"
D Antenna receptacle*
"EM SENSE" normal/sense
E
input
*Antenna receptacle not present
on RDM luminaires.
ArcSystem Pro Multi-Cell Installation Guide
A
B
C
E
D
E
D
