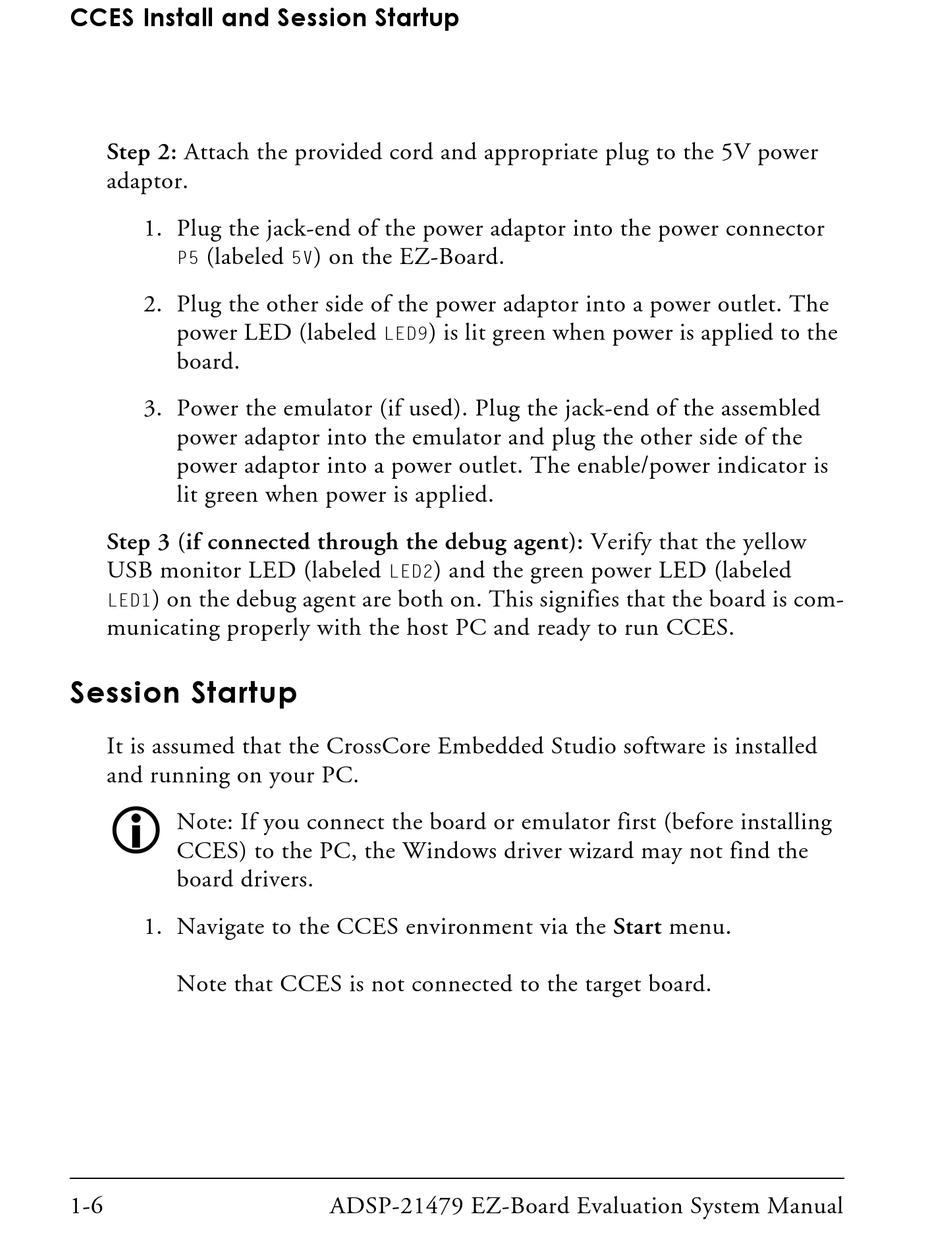

CCES Install and Session Startup
Step 2: Attach the provided cord and appropriate plug to the 5V power
adaptor.
1. Plug the jack-end of the power adaptor into the power connector
(labeled
P5
2. Plug the other side of the power adaptor into a power outlet. The
power LED (labeled
board.
3. Power the emulator (if used). Plug the jack-end of the assembled
power adaptor into the emulator and plug the other side of the
power adaptor into a power outlet. The enable/power indicator is
lit green when power is applied.
Step 3 (if connected through the debug agent): Verify that the yellow
USB monitor LED (labeled
) on the debug agent are both on. This signifies that the board is com-
LED1
municating properly with the host PC and ready to run CCES.

Session Startup

It is assumed that the CrossCore Embedded Studio software is installed
and running on your PC.

Note: If you connect the board or emulator first (before installing
CCES) to the PC, the Windows driver wizard may not find the
board drivers.
1. Navigate to the CCES environment via the Start menu.
Note that CCES is not connected to the target board.
1-6
) on the EZ-Board.
5V
) is lit green when power is applied to the
LED9
) and the green power LED (labeled
LED2
ADSP-21479 EZ-Board Evaluation System Manual
