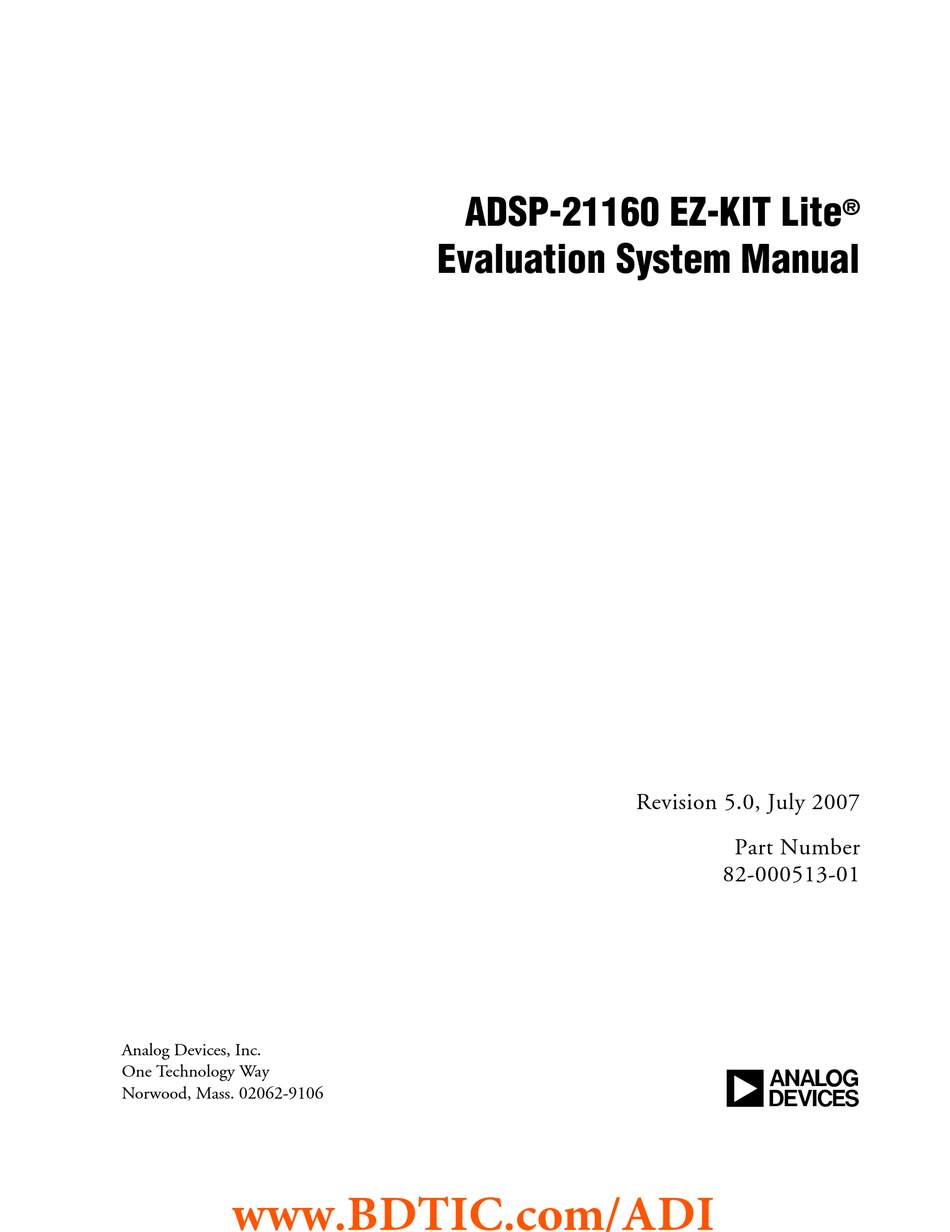

ADSP-21160 EZ-KIT Lite
®
Evaluation System Manual
Revision 5.0, July 2007
Part Number
82-000513-01
Analog Devices, Inc.
One Technology Way
a
Norwood, Mass. 02062-9106
www.BDTIC.com/ADI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADSP-21160 EZ-KIT Lite and is the answer not in the manual?

Questions and answers

Related Manuals for Analog Devices ADSP-21160 EZ-KIT Lite

Summary of Contents for Analog Devices ADSP-21160 EZ-KIT Lite

  • Page 1 ADSP-21160 EZ-KIT Lite ® Evaluation System Manual Revision 5.0, July 2007 Part Number 82-000513-01 Analog Devices, Inc. One Technology Way Norwood, Mass. 02062-9106 www.BDTIC.com/ADI...
  • Page 2 Analog Devices or from an authorized dealer. Disclaimer Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use;...
  • Page 3 Regulatory Compliance The ADSP-21160 EZ-KIT Lite is designed to be used solely in a labora- tory environment. The board is not intended for use as a consumer end product or as a portion of a consumer end product. The board is an open system design which does not include a shielded enclosure and therefore may cause interference to other electrical devices in close proximity.
  • Page 4 ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 5: Table Of Contents

    Accessing Documentation From VisualDSP++ ....xviii Accessing Documentation From Windows ......xviii Accessing Documentation From Web ........xix Printed Manuals ............... xix VisualDSP++ Documentation Set ......... xix Hardware Tools Manuals ............xix Processor Manuals ..............xx ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...
  • Page 6 JTAG Emulation Port ............. 2-5 Jumper and Switches ..............2-6 Audio Input Selection Jumper (JP1) ........2-6 Boot Mode Select Switch (SW1) ..........2-7 LEDs and Push Buttons ..............2-8 Reset LED (LED7) ..............2-8 ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...
  • Page 7 Audio Connectors (J4 and J5) ..........2-14 SPORT0 Connector (P11) ............. 2-15 Specifications ................2-16 Power Supply ................ 2-16 Board Current Measurements ..........2-16 ADSP-21160 EZ-KIT LITE BILL OF MATERIALS ADSP-21160 EZ-KIT LITE SCHEMATIC Title Page ..................B-1 ADSP-21160 Processor ..............B-2 Memory ..................B-3 Audio Codec ................
  • Page 8 CONTENTS Connectors ................... B-6 Power ................... B-7 Bypass Caps .................. B-8 INDEX viii ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...
  • Page 9 PREFACE ® Thank you for purchasing the ADSP-21160 EZ-KIT Lite , Analog ® Devices, Inc. evaluation system for SHARC digital signal processors (DSPs). SHARC processors are based on a 32-bit super Harvard architecture that includes a unique memory architecture comprised of two large on-chip,...
  • Page 10 The ADSP-21160 EZ-KIT Lite provides example programs to demon- strate the capabilities of the evaluation board. The ADSP-21160 EZ-KIT Lite installation is part of the Visu- alDSP++ installation. The EZ-KIT Lite is a licensed product that offers an unrestricted evaluation license for the first 90 days. For details about evaluation license restrictions after the 90 days, refer “Evaluation License Restrictions”...
  • Page 11 SPORT0 Additionally, the EZ-KIT Lite board provides access to most of the pro- cessor’s peripheral ports on populated expansion interface connectors. For information about the expansion interface, see “External Port” on page 2-3. ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 12: Purpose Of This Manual

    VisualDSP++ Installation Quick Reference Card. The manual provides guidelines for running your own code on the ADSP-21160 EZ-KIT Lite. Finally, a schematic and a bill of materials are provided as a reference for future designs.

  • Page 13: Manual Contents

    ADSP-21160 EZ-KIT Lite Evaluation System Manual is located in the folder on the installation CD. Docs\EZ-KIT Lite Manuals Alternatively, the book can be found at the Analog Devices Web site, www.analog.com/processors What’s New in This Manual This edition of the ADSP-21160 EZ-KIT Lite Evaluation System Manual documents ADSP-21160 EZ-KIT Lite compliance with the RoHS and WEEE directives.

  • Page 14: Technical Or Customer Support

    Technical or Customer Support Technical or Customer Support You can reach Analog Devices, Inc. Customer Support in the following ways: • Visit the Embedded Processing and DSP products Web site at http://www.analog.com/processors/technicalSupport • E-mail tools questions to processor.tools.support@analog.com • E-mail processor questions to processor.support@analog.com (World wide support)

  • Page 15: Product Information

    MyAnalog.com is a free feature of the Analog Devices Web site that allows MyAnalog.com customization of a Web page to display only the latest information on products you are interested in.

  • Page 16: Related Documents

    Product Information You may also obtain additional information about Analog Devices and its products in any of the following ways. • E-mail questions or requests for information to processor.support@analog.com (World wide support) processor.europe@analog.com (Europe support) processor.china@analog.com (China support) • Fax questions or requests for information to...

  • Page 17: Online Technical Documentation

    VisualDSP++ documentation set for any topic of interest. For easy printing, supplementary files of most manuals are provided in the .pdf folder on the VisualDSP++ installation CD. Docs Each documentation file type is described as follows. ADSP-21160 EZ-KIT Lite Evaluation System Manual xvii www.BDTIC.com/ADI...

  • Page 18: Accessing Documentation From Visualdsp

    To view VisualDSP++ Help, click on the Help menu item or go to the Windows task bar and navigate to the VisualDSP++ documentation via the Start menu. To view ADSP-21160 EZ-KIT Lite Help, which is part of the Visu- alDSP++ Help system, use the Contents or Search tab of the Help window.

  • Page 19: Accessing Documentation From Web

    To purchase VisualDSP++ manuals, call 1-603-883-2430. The manuals may be purchased only as a kit. If you do not have an account with Analog Devices, you are referred to Analog Devices distributors. For information on our distributors, log onto http://www.analog.com/salesdir/continent.asp...

  • Page 20: Processor Manuals

    1-800-ANALOGD (1-800-262-5643); they also can be downloaded from the Web site. To have a data sheet faxed to you, call the Analog Devices Faxback System at 1-800-446-6212. Follow the prompts and a list of data sheet code numbers will be faxed to you. If the data sheet you want is not listed, check for it on the Web site.

  • Page 21: Notation Conventions

    A Warning identifies conditions or inappropriate usage of the product that could lead to conditions that are potentially hazardous for the devices users. In the online version of this book, the word Warning appears instead of this symbol. ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...
  • Page 22 Notation Conventions Additional conventions, which apply only to specific chapters, may appear throughout this document. xxii ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 23: Using Adsp-21160 Ez-Kit Lite

    1 USING ADSP-21160 EZ-KIT LITE This chapter provides specific information to assist you with development of programs for the ADSP-21160 EZ-KIT Lite evaluation system. The information appears in the following sections. • “Package Contents” on page 1-2 Lists the items contained in the EZ-KIT Lite package.

  • Page 24: Package Contents

    “Related Documents” on page xvi. Package Contents Your ADSP-21160 EZ-KIT Lite evaluation system package contains the following items. • ADSP-21160M EZ-KIT Lite board • VisualDSP++ Installation Quick Reference Card • CD containing: VisualDSP++ software...

  • Page 25: Default Configuration

    Store unused EZ-KIT Lite boards in the protective shipping package. The ADSP-21160 EZ-KIT Lite board is designed to run outside your per- sonal computer as a stand-alone unit. You do not have to open your computer case.
  • Page 26 LED2 LED4 4. Connect one end of the USB cable to an available full speed USB port on your PC and the other end to on the ADSP-21160 EZ-KIT Lite board. ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 27: Installation And Session Startup

    Ensure SHARC is selected in Processor family. In Choose a target processor, select ADSP-21160. Click Next. 5. The Select Connection Type page of the wizard appears on the screen. Select EZ-KIT Lite and click Next. ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...
  • Page 28 Installation and Session Startup 6. The Select Platform page of the wizard appears on the screen. Ensure that the selected platform is ADSP-21160 EZ-KIT Lite via Debug Agent. Specify your own Session name for your session or accept the default name.

  • Page 29: Evaluation License Restrictions

    Using ADSP-21160 EZ-KIT Lite Evaluation License Restrictions The ADSP-21160 EZ-KIT Lite installation is part of the VisualDSP++ installation. The EZ-KIT Lite is a licensed product that offers an unre- stricted evaluation license for the first 90 days. Once the initial unrestricted 90-day evaluation license expires: •...
  • Page 30 0x0080 0000 0x0087 FFFF (flash memory ~MSO ~BMS External (SBRAM) 0x0280 0000 0x0281 FFFF ~MS1 memory All other locations Not used 1 When viewing external memory with VisualDSP++, ensure that is set to MSIZE ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 31: Flag Pins

    To use the pins, enable the specific IRQ, as well as enable the global interrupts. You also need to write a special interrupt service routine to handle the interrupts when they occur. ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 32: Example Programs

    IRQ2–0 Example Programs Example programs are provided with the ADSP-21160 EZ-KIT Lite to demonstrate various capabilities of the evaluation board. These programs are installed with the EZ-KIT Lite software and can be found in the subdirectory of the Visu- …\211xx\Examples\ADSP-21160 EZ-KIT Lite...

  • Page 33: Adsp-21160 Ez-Kit Lite Hardware

    This chapter describes the hardware design of the ADSP-21160 EZ-KIT Lite board. The following topics are covered. • “System Architecture” on page 2-2 Describes the configuration of the ADSP-21160 EZ-KIT Lite board and explains how the board components interface with the processor. •...

  • Page 34: System Architecture

    Stereo In/Out LEDs (3) SPORT0 Connectors Connectors Connector and PBs (3) Figure 2-1. System Architecture Block Diagram The ADSP-21160M processor’s core voltage is 2.5V. The voltage of the processors’ peripheral interface is 3.3V. ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 35: External Port

    All of the address, data, and control signals are available externally via the expansion connectors ( ). The pinout of these connectors can be found P1— 3 “ADSP-21160 EZ-KIT Lite Schematic” on page B-1. ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 36: Sport0 Audio Interface

    “ADSP-21160 EZ-KIT Lite Sche- matic” on page B-1. Analog Devices does not populate these connectors or provide any additional support for the interface. The mechanical dimen- sions of the connectors can be found in “Board Current Measurements”...

  • Page 37: Jtag Emulation Port

    Additional circuitry can also add extra loading to signals, decreasing their maximum effective speed. Analog Devices does not support and is not responsible for the effects of additional circuitry. JTAG Emulation Port The JTAG emulation port allows an emulator to access the processor’s internal and external memory, as well as the special function registers, through a 14-pin interface.

  • Page 38: Jumper And Switches

    1 and 3 and pins 2 and 4, connects to the mono channel. When the MIC1 jumper connects pins 3 and 5 and pins 4 and 6, connects to the stereo ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 39: Boot Mode Select Switch (Sw1)

    OFF (output) Boot from 8-bit flash memory (default) OFF (input) Boot from host OFF (input) Booting from link port ON (input) No boot (execute from external memory) ON (input) Reserved X (input) Reserved ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 40: Leds And Push Buttons

    ICs is active. LED7 Reset LED does not necessarily indicate that the USB interface has been reset. The USB interface resets on power-up or when USB communica- tion has not been initialized. ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 41: Flag Leds (Led2-4)

    When VisualDSP++ is actively communicating with the EZ-KIT Lite tar- get board, the LED can flicker, indicating communications handshake. Power LED (LED6) When is lit (green), it indicates that power is being properly supplied LED6 to the board. ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 42: Board Reset Push Button (Sw2)

    IRQs when programming the processor. The push button reference designators and corresponding interrupt signals are summarized in Table 2-5. Table 2-5. Interrupt Push Buttons Interrupt Signal Push Button Reference Designator IRQ0 IRQ1 IRQ2 2-10 ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 43: Connectors

    ADSP-21160 EZ-KIT Lite Hardware Connectors This section describes the connector functionality and provides informa- tion about mating connectors. Figure 2-4 shows the connector locations. Figure 2-4. Connector Locations ADSP-21160 EZ-KIT Lite Evaluation System Manual 2-11 www.BDTIC.com/ADI...

  • Page 44: Expansion Connectors (P1-3)

    Connectors Expansion Connectors (P1–3) Three board-to-board connectors provide signals for most of the proces- sor’s peripheral interfaces. Analog Devices does not populate the expansion connectors or provide any additional support for the interface. “Expansion Interface” on page 2-4 for more information on the expansion interface.

  • Page 45: Link Port Connectors (P5 And P6)

    The connectors does not link to the processor’s USB interface. Part Description Manufacturer Part Number Type B USB receptacle MILL-MAX 897-30-004-90-000000 DIGI-KEY ED90064-ND Mating Connector (provided with the EZ-KIT Lite) USB cable ASSMANN AK672-5 DIGI-KEY AK672-5ND ADSP-21160 EZ-KIT Lite Evaluation System Manual 2-13 www.BDTIC.com/ADI...

  • Page 46: Jtag Connector (Zp4)

    There are two 3.5 mm stereo audio jacks: one input and one output. Part Description Manufacturer Part Number 3.5 mm stereo jack ( A/D ELECTRONICS ST-323-5 Mating Connector 3.5 mm stereo plug to 3.5 mm stereo RADIO SHACK 42-2387A cable 2-14 ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 47: Sport0 Connector (P11)

    ADSP-21160 EZ-KIT Lite Hardware SPORT0 Connector (P11) links to a 20-pin connector. The connector pinout can be found in SPORT0 “ADSP-21160 EZ-KIT Lite Schematic” on page B-1. Part Description Manufacturer Part Number 20-position AMPMODU system 50 TYCO 5-104069-1 receptacle (...

  • Page 48: Specifications

    Table 2-7. Current Measurements Resistor Voltage Plane Description Core voltage of the processor VDD_EXT IO voltage of the processor VDD_INT 2-16 ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...
  • Page 49 EPSON MA-505 OSC005 24.5760M-C3:ROHS 74LVC00AD PHILIPS 74LVC00AD SOIC14 MT58L64L32 U8-9 CYPRESS CY7C199D-12VXI TQFP100_B LT1765 LINEAR TECH LT1765ES8#PBF SOIC8 40MHZ DIGI-KEY SG-8002CA-PCC-ND OSC003 (40.000M) FDC658P FAIRCHILD FDC658P SOT23-6 AD1881AJST ANALOG AD1881AJSTZ Z LQFP48 DEVICES ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...
  • Page 50 SWITCHCRAFT RAPC712X 2.5MM_JACK CON005 LNKPRT P5-6 HONDA(TSUSHI RMCA-EA26LMY-0M03-A+ 12X2 CON010 .05 10X2 TYCO 5-104069-1 CON014 MOMEN- SW2-5 PANASONIC EVQ-PAD04M TARY SWT013 DIP4 TDA04HOSB1 SWT018 IDC 7X2 68737-414HLF IDC7X2 2.5A RAYCHEM SMD250F-2 RESETABLE FUS001 ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 51: Adsp-21160 Ez-Kit Lite Bill Of Materials

    ADSP-21160 EZ-KIT Lite Bill Of Materials Ref. Qty. Description Reference Manufacturer Part Number Designator SJ1-2 DIGI-KEY S9001-ND 2PIN_JUMPE R_SHORT 3.5MM J4-5 A/D ELECTRON- ST-323-5 STEREO_JAC K CON001 IDC 3X2 SULLINS GEC03DAAN IDC3X2 0 1/4W 5% R6-7,R18-20, 0.0ECTRk7372BTTED 1206 R28,R68-70 220UF 10V...
  • Page 52 500MA 1206 0.047UF 16V 12065C473JATME 10% 1206 270PF 50V C12,C19 12061A271JAT2A 10% 1206 1UF 16V 10% C1-2,C4,C7, PANASONIC ECJ2FB1E105K 0805 C27,C37,C41, 470PF 100V C13-16 12061A471JAT2A 10% 1206 10 1/10W 5% VISHAY CRCW080510R0FKEA 0805 ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...
  • Page 53 ADSP-21160 EZ-KIT Lite Bill Of Materials Ref. Qty. Description Reference Manufacturer Part Number Designator 10UF 25V C22,C46-49 PANASONIC ECJ4YF1E106Z +80-20% 1210 10UH 20% 445-2014-1-ND IND001 10K 31MW 746X101103JP 5% RNET8 0 1/10W 5% R4,R8-12,R17, VISHAY CRCW08050000Z0EA 0805 11.3K 1/10W DIGI-KEY 311-11.3KCRTR-ND...
  • Page 54 R13-15,R21 VISHAY CRCW120610K0JNEA 1206 4.7K 1/8W R22-23,R25-26 VISHAY CRCW12064K70JNEA 5% 1206 255.0K VISHAY CRCW06032553FK 1/10W 1% 0603 80.6K 1/10W DIGI-KEY 311-80.6KHRCT-ND 1% 0603 6.8UH 25% DIGI-KEY 308-1328-1-ND IND009 4A SSB43L VISHAY SSB43L DO-214AA ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...

  • Page 55: Adsp-21160 Ez-Kit Lite Schematic

    ADSP-21160 EZ-KIT Lite ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD ADSP-21160 EZ-KIT LITE Title TITLE Size Board No. A0164-2001 www.BDTIC.com/ADI Date 8-24-2006_9:22 Sheet...
  • Page 56 DMAR2 DMAR2 ID[0:2] L5DAT4 L5DAT5 MS[0:3] L5DAT6 L5DAT7 L5ACK ANALOG 20 Cotton Road RESET RESET L5CLK Nashua, NH 03063 DEVICES ADSP-21160N ADSP-21160MKBZ-80 PH: 1-800-ANALOGD ADSP-21160N ADSP-21160MKBZ-80 PBGA400 PBGA400 ADSP-21160 EZ-KIT LITE Title Size Board No. A0164-2001 www.BDTIC.com/ADI Date 8-16-2006_15:00 Sheet...

  • Page 57: Memory

    DQ32 MT58L64L32 MT58L64L32 MT58L64L32 MT58L64L32 TQFP100_B TQFP100_B BRST 3.3V 3.3V CLKIN 0805 0805 ANALOG 20 Cotton Road Nashua, NH 03063 74LVC00AD 74LVC00AD SOIC14 SOIC14 DEVICES PH: 1-800-ANALOGD ADSP-21160 EZ-KIT LITE Title MEMORY Size Board No. A0164-2001 www.BDTIC.com/ADI Date 8-24-2006_9:42 Sheet...

  • Page 58: Audio Codec

    0805 0805 AGND AD8532ARZ SOIC8 VC0805 VC0805 VC0805 VC0805 470PF 1206 0805 0805 ANALOG 20 Cotton Road AGND Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD SHGND 0805 ADSP-21160 EZ-KIT LITE Title AUDIO CODEC Size Board No. A0164-2001 www.BDTIC.com/ADI Date 10-4-2006_17:45 Sheet...
  • Page 59 SSOP20 1206 1206 1206 1206 3.3V 0805 IRQ2 0805 1206 IRQ2 74LVC14A 74LVC14A SWT013 SOIC14 SOIC14 MOMENTARY ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD ADSP-21160 EZ-KIT LITE Title PB/LED Size Board No. A0164-2001 www.BDTIC.com/ADI Date 8-16-2006_15:00 Sheet...
  • Page 60 Engineer to Engineer Note EE-68 which can be found at DA_EMULATOR_TDO DA_GP0 ANALOG 20 Cotton Road IDC7X2 http://www.analog.com DA_GP1 RESET RESET Nashua, NH 03063 DA_GP2 DEVICES DA_SOFT_RESET DA_SOFT_RESET PH: 1-800-ANALOGD DA_GP3 ADSP-21160 EZ-KIT LITE Title DEBUG_AGENT CONNECTORS Size Board No. A0164-2001 SHGND www.BDTIC.com/ADI Date 8-16-2006_15:00 Sheet...
  • Page 61 SOT23-6 0603 FDC658P CT12 CT13 SSB43L SOT23-6 47UF 2.2UF 0805 DO-214AA PGND 255.0K 0603 PGND 0805 PGND ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD ADSP-21160 EZ-KIT LITE Title POWER Size Board No. A0164-2001 www.BDTIC.com/ADI Date 10-6-2006_14:30 Sheet...
  • Page 62 MT58L64L32 (U9) IDT74FCT3244APY (U6) 74LVC00AD (U5) ADM708SAR (U4) 74LVC14A (U7) AT49BV040 (U7) AD1885JST ANALOG (U10) OSC (U2) ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD ADSP-21160 EZ-KIT LITE Title BYPASS CAPS Size Board No. A0164-2001 www.BDTIC.com/ADI Date 8-24-2006_9:42 Sheet...
  • Page 63 FLAG system registers, P3 (expansion), 2-3, 2-4, 2-12 flash P4 (power), 1-4, 2-12 memory, xi, 1-7, 1-8, P5-6 (link port), 2-13 memory boot mode, ZJ1 (USB), 1-4, 2-13 frequency, ZP4 (JTAG), 2-5, 2-14 ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...
  • Page 64 R6-7 (current measurements) resistors, 2-16 LINE IN stereo input channel, 2-4, RCLK0 pins, link port reset boot mode, LED (LED7), connectors, 2-13 push button (SW2), 2-10 restrictions, of the license, measurements, of this EZ-KIT Lite, 2-16 ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...
  • Page 65 SW1 (boot mode select) switch, SW2 (reset) push button, 2-10 VDD_EXT voltage plane, 2-16 SW3-5 (interrupt) push buttons, 1-10, 2-10 VDD_INT voltage plane, 2-16 SYSCON register, VisualDSP++ system architecture, documentation, online Help, voltage planes, 2-16 ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...
  • Page 66 INDEX ADSP-21160 EZ-KIT Lite Evaluation System Manual www.BDTIC.com/ADI...
