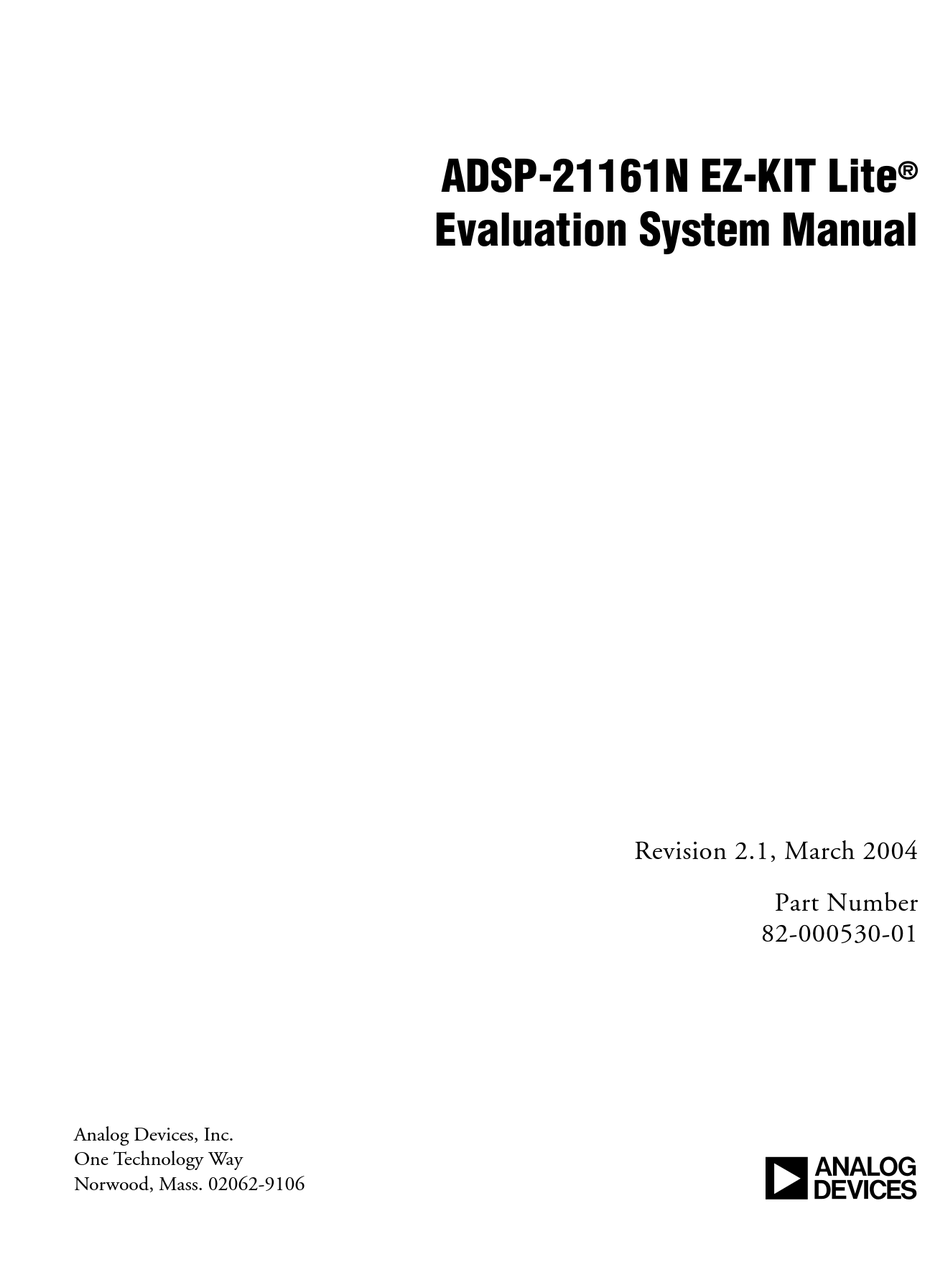

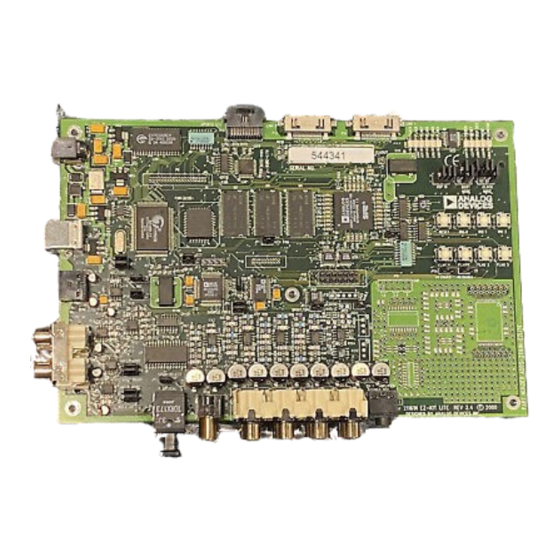

ADSP-21161N EZ-KIT Lite
®
Evaluation System Manual
Revision 2.1, March 2004
Part Number
82-000530-01
Analog Devices, Inc.
One Technology Way
a
Norwood, Mass. 02062-9106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADSP-21161N EZ-KIT Lite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analog Devices ADSP-21161N EZ-KIT Lite

Summary of Contents for Analog Devices ADSP-21161N EZ-KIT Lite

  • Page 1 ADSP-21161N EZ-KIT Lite ® Evaluation System Manual Revision 2.1, March 2004 Part Number 82-000530-01 Analog Devices, Inc. One Technology Way Norwood, Mass. 02062-9106...
  • Page 2 Analog Devices or from an authorized dealer. Disclaimer Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use;...
  • Page 3 Regulatory Compliance The ADSP-21161N EZ-KIT Lite evaluation system has been certified to comply with the essential requirements of the European EMC directive 89/336/EEC (inclusive 93/68/EEC) and, therefore, carries the “CE” mark. The ADSP-21161N EZ-KIT Lite evaluation system had been appended to the Technical Construction File referenced “DSPTOOLS1”...
  • Page 4 CONTENTS ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 5: Table Of Contents

    Related Documents ..............xviii Online Documentation ............xix Printed Manuals ............... xix VisualDSP++ Documentation Set ......... xix Hardware Manuals ..............xx Data Sheets ................xx Contacting DSP Publications ............. xx Notation Conventions ..............xxi ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 6 Using SDRAM Memory ............... 2-3 Using FLAG Pins ................. 2-5 Using Interrupt Pins ..............2-6 Using Audio Interface ..............2-6 Example Programs ................ 2-8 Using Flash Programmer Utility ............ 2-8 Using EZ-KIT Lite VisualDSP++ Interface ........2-9 ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 7 EZ-KIT LITE HARDWARE REFERENCE System Architecture ..............3-2 External Port ................3-3 Host Processor Interface (HPI) ..........3-3 SPORT Audio Interface ............3-3 SPI Audio Interface ..............3-4 Breadboard Area ..............3-4 JTAG Emulation Port .............. 3-5 ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 8 Reset LEDs (LED1 and LED8) ..........3-14 FLAG LEDs (LED2–7) ............3-14 VERF LED (LED9) .............. 3-14 USB Monitor LED (LED10) ..........3-15 Power LED (LED11) ............3-15 Programmable FLAG Push Buttons (SW1–4) ......3-15 viii ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 9 Link Port Connectors (P13–14) ..........3-19 SPORT1 and SPORT3 Connector (P15) ....... 3-20 Power Connector (P16) ............3-20 Specifications ................3-21 Power Supply ................ 3-21 Board Current Measurements ..........3-21 BILL OF MATERIALS INDEX ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 10 CONTENTS ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 11 PREFACE ® Thank you for purchasing the ADSP-21161N EZ-KIT Lite , Analog ® Devices (ADI) evaluation system for SHARC processors. The SHARC processors are based on a 32-bit super Harvard architecture that includes a unique memory architecture comprised of two large...
  • Page 12 Analog Devices JTAG emulators offer faster communication between the host PC and target hardware. Analog Devices carries a wide range of in-circuit emulation products. To learn more about Analog Devices emulators and DSP development tools, go to http://www.analog.com/dsp/tools/...
  • Page 13 4 Push Button Flags 3 Push Button Interrupts 6 LED Outputs • Analog Devices ADP3338 and ADP3339 Voltage Regulators • Breadboard area with typical SMT footprints The EZ-KIT Lite board has a Flash memory device that can be used to store user-specific boot code.

  • Page 14: Purpose Of This Manual

    PC. The text includes guidelines for running your own code on the ADSP-21161N EZ-KIT Lite. The manual also describes the board’s con- figuration and components. Finally, a schematic and a bill of materials are provided as a reference for future ADSP-21161N board designs.

  • Page 15: Manual Contents

    CD to see the schematics. Manuals What’s New in This Manual This is the third edition of the ADSP-21161N EZ-KIT Lite Evaluation System Manual. The new edition includes the updated installation and license registration procedures. ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 16: Technical Or Customer Support

    The ADSP-21161N EZ-KIT Lite evaluation system supports Analog Devices ADSP-21161N SHARC processors. Product Information You can obtain product information from the Analog Devices website, from the product CD-ROM, or from the printed publications (manuals). ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 17: Myanalog.com

    MyAnalog.com MyAnalog.com is a free feature of the Analog Devices website that allows customization of a webpage to display only the latest information on products you are interested in. You can also choose to receive weekly email notification containing updates to the webpages that meet your interests.

  • Page 18: Related Documents

    Description of the linker function and com- for 32-Bit Processors mands for the 32-bit processors VisualDSP++ 3.5 Loader Manual for 32-Bit Description of the loader function and com- Processors mands for the 32-bit processors xviii ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 19: Online Documentation

    Windows task bar and select Start –>Programs –>Analog Devices–>Visu- alDSP++ for 32-bit Processors –>VisualDSP++ Documentation. To view ADSP-21161N EZ-KIT Lite Help, which now is a part of the VisualDSP++ Help system, go the Contents tab of the Help window and select Manuals –>Hardware Tools –>EZ-KIT Lite Evaluation Systems.

  • Page 20: Hardware Manuals

    Product Information If you do not have an account with Analog Devices, you will be referred to Analog Devices distributors. To get information on our distributors, log onto www.analog.com/salesdir/continent.asp Hardware Manuals Printed copies of hardware reference and instruction set reference manuals can be ordered through the Literature Center or downloaded from the Analog Devices website.

  • Page 21: Notation Conventions

    A caution providing information about critical design or programming Caution: issues that influence operation of a product. In the online version of this book, the word Caution appears instead of this symbol. ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 22 Notation Conventions xxii ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 23: Getting Started

    “Installation Tasks” on page 1-3 Describes the step-by-step procedures for setting up the hardware and software. Contents of EZ-KIT Lite Package Your ADSP-21161N EZ-KIT Lite evaluation system package contains the following items. • ADSP-21161N EZ-KIT Lite board • EZ-KIT Lite Installation Procedure •...
  • Page 24 VisualDSP++ 3.5 for 32-bit processors with a limited license ADSP-21161N EZ-KIT Lite debug software USB driver files Example programs ADSP-21161N EZ-KIT Lite Evaluation System Manual (this document) • Universal 7V DC power supply • USB 2.0 type cable • Registration card (please fill out and return) If any item is missing, contact the vendor where you purchased your EZ-KIT Lite or contact Analog Devices, Inc.

  • Page 25: Pc Configuration

    Installation Tasks The following task list is provided for the safe and effective use of the ADSP-21161N EZ-KIT Lite. Follow the instructions in the presented order to ensure correct operation of your software and hardware. 1. VisualDSP++ and EZ-KIT Lite software installation 2.

  • Page 26: Installing Visualdsp++ And Ez-Kit Lite Software

    VisualDSP++ and EZ-KIT Lites are licensed products. You may run only one copy of the software for each license purchased. Once a new copy of the VisualDSP++ or EZ-KIT Lite software is installed on your PC, you must install, register, and validate your licence. ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 27: Setting Up Ez-Kit Lite Hardware

    Store unused EZ-KIT Lite boards in the protective shipping package. The ADSP-21161N EZ-KIT Lite board is designed to run outside your personal computer as a stand-alone unit. You do not have to open your computer case.

  • Page 28: Installing Ez-Kit Lite Usb Driver

    USB port. • “Windows 98 USB Driver” on page 1-7 describes the installation on Windows 98. • “Windows 2000 USB Driver” on page 1-11 describes the installa- tion on Windows 2000. ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 29: Windows 98 Usb Driver

    Windows 98 USB Driver Before using the ADSP-21161N EZ-KIT Lite for the first time, the Win- dows 98 USB driver must first be installed. To install the USB driver: 1.
  • Page 30 3. Select Search for the best driver for your device, as shown in Figure 1-3. Figure 1-3. Windows 98 – Searching for Driver 4. Click Next. 5. Select CD-ROM drive, as shown in Figure 1-4. Figure 1-4. Windows 98 – Searching for CD-ROM ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 31 CD, as WmUSBEz.inf shown in Figure 1-5. Figure 1-5. Windows 98 – Locating Driver 7. Click Next. The Coping Files dialog box appears (Figure 1-6). Figure 1-6. Windows 98 – Searching for .SYS File ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 32 Figure 1-7. Windows 98 – Opening .SYS File 9. In Drives, select your CD-ROM drive. 10. Click OK. The Copying Files dialog box (Figure 1-8) appears. Figure 1-8. Windows 98 – Copying .SYS File 1-10 ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 33: Windows 2000 Usb Driver

    Prior to running the VisualDSP++ 3.5 installer, ensure there are no other Hardware Wizard windows running in the background. If there are any wizard windows running, close them before starting the installer. ADSP-21161N EZ-KIT Lite Evaluation System Manual 1-11...

  • Page 34: Windows Xp Usb Driver

    To install the USB driver: 1. If VisualDSP++ 3.5 is already installed on your system, go to step 2. Otherwise, run VisualDSP++ 3.5 installation. Refer to the Visu- alDSP++ 3.5 Installation Quick Reference Card for a detailed 1-12 ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 35 By connecting the device to the USB port you activate the Win- dows XP Found New Hardware Wizard, shown in Figure 1-10. Figure 1-10. Windows XP – Found New Hardware Wizard 3. Select Install the software automatically (Recommended) and click Next. ADSP-21161N EZ-KIT Lite Evaluation System Manual 1-13...

  • Page 36: Verifying Driver Installation

    2. Press and release the RESET button ( ) on the evaluation board. 3. Verify that the red DSP RESET LED ( ) blinks once and then LED8 blinks again in 15 seconds. 1-14 ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 37 PC. When Windows 98 is booted and you are logged on, re-connect the USB cable to the board. The operation should continue normally from this point. ADSP-21161N EZ-KIT Lite Evaluation System Manual 1-15...

  • Page 38: Starting Visualdsp

    4. Click New Session. 5. The New Session dialog box, shown in Figure 1-13, appears on the screen. Figure 1-13. New Session Dialog Box 6. In Debug Target, choose EZ-KIT Lite (ADSP-21161N). 1-16 ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 39 7. In Processor, choose the appropriate processor, ADSP-21161N. 8. Type a new target name in Session Name or accept the default name. 9. Click OK to return to the Session List. Highlight the new session and click Activate. ADSP-21161N EZ-KIT Lite Evaluation System Manual 1-17...
  • Page 40 Installation Tasks 1-18 ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 41: Using Ez-Kit Lite

    2 USING EZ-KIT LITE This chapter provides specific information to assist you with developing programs for the ADSP-21161N EZ-KIT Lite evaluation system. This information appears in the following sections. • “EZ-KIT Lite License Restrictions” on page 2-2 Describes the restrictions of the VisualDSP++ license shipped with the EZ-KIT Lite.

  • Page 42: Ez-Kit Lite License Restrictions

    The configuration of internal SRAM is detailed in the ADSP-21161 SHARC Processor Hardware Reference. The ADSP-21161N EZ-KIT Lite board contains 512K x 8-bits of exter- nal Flash memory. The Flash memory is connected to the processors’s memory select pins.

  • Page 43: Using Sdram Memory

    Listing 2-1. Listing 2-1. ADSP-21161N EZ-KIT Lite – SDRAM Settings /* SDRAM Controller Setup for the ADSP-21161N EZ-KIT Lite /* Assumes SDRAM part# Micron MT48LC16M16A1-7SE (1Mx16-bit, 2 banks) /* Default Factory Hardware settings (rev2.3) /* LK_CFG[1:0]= 10,~CLDBL=1 /* CLKIN=25 MHz, =>...

  • Page 44: Using Sdram Memory" On Page

    The SDRAM registers are configured automatically through the debugger. Checking the Manual External Mem configuration box in the Target Options dialog box, as shown in Figure 2-1 on page 2-10, disables the automatic setting. ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 45: Using Flag Pins

    FLAG3 FLAG3 input. connect to LEDs on the EZ-KIT Lite FLAG4–FLAG9 LED2–LED7 FLAG4–9 board and are for user output. Not connected Not available FLAG10 FLAG11 are available on connector FLAG0–FLAG3 ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 46: Using Interrupt Pins

    Digital audio JP11 input can be provided on either a single RCA mono jack ( ) or an optical input connector ( determines the source. Three of the stereo out- ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 47 AD1836, depending on the setting of jumpers. See “MIC Gain Selection Jumpers (JP9–10)” on page 3-8 “ADC1 Input Selec- tion Jumper (JP11)” on page 3-9 for more information. Two RCA jacks ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 48: Example Programs

    This signal may also be used by interpolation filters to provide error correction. Example Programs Example programs are provided with the ADSP-21161N EZ-KIT Lite to demonstrate various capabilities of the evaluation board. These programs are installed with the EZ-KIT Lite software and can be found in .

  • Page 49: Using Ez-Kit Lite Visualdsp++ Interface

    Target Options Choosing Target Options from the Settings menu opens the Target Options dialog box (Figure 2-1). Use target options to control certain aspects of the processor on the ADSP-21161N EZ-KIT Lite evaluation system. ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 50: While Target Is Halted And On Emulator Exit Options

    SPORT-receive data cannot be held off, it is lost, and the overrun bit is set. The direct write buffer (internal memory write) and the EP pad buffer are allowed to flush any remaining data to internal memory. Other Options Table 2-6 describes other available target options. 2-10 ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 51: Core Hang Conditions

    If an attempt to halt the processor is made during one of these conditions, the EZ-KIT Lite may encounter a core hang. ADSP-21161N EZ-KIT Lite Evaluation System Manual 2-11...

  • Page 52: Hardware Breakpoints

    Performs a software reset on the target board. Hardware Breakpoints Hardware breakpoints work similarly to watchpoints. Set hardware break- points on: • Data transfers within a user-defined memory range • Instructions • Register reads and writes 2-12 ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 53: Common Hardware Breakpoint Attributes

    Each of the three tabs in the Hardware Breakpoints dialog box has com- mon attributes. The common attributes are described in Table 2-8. Global Hardware Breakpoint Options For ADSP-21161N DSPs, the options listed in Table 2-9 apply to all hardware breakpoints, regardless of their type. ADSP-21161N EZ-KIT Lite Evaluation System Manual 2-13...

  • Page 54: Common Hardware Breakpoint Attributes

    . Otherwise, the Skip Count remains at its current value. RESTART AND All Break- ANDs the interrupts to form the composite interrupt. Normally, the group points interrupts are ORed to create a composite interrupt. 2-14 ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 55: Data Hardware Breakpoints

    The two data breakpoints are ORed to generate a single data breakpoint condition. The Data page of the Hardware Breakpoints dialog box, which permits the specification of two data breakpoints, is shown in Figure 2-3. Figure 2-3. Data Page of Hardware Breakpoints Dialog Box ADSP-21161N EZ-KIT Lite Evaluation System Manual 2-15...

  • Page 56: Instruction Hardware Breakpoints

    Shown below is the Instruction page of the Hardware Breakpoints dialog box, which permits the specification of four individual instruction breakpoints. Figure 2-4. Instruction Page of Hardware Breakpoints Dialog Box 2-16 ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 57: Other Breakpoints

    Enables IO breakpoints. IO breakpoints are triggered by accesses made on the IO Address Bus. Use an IO breakpoint to break on accesses made dur- ing DMA transfers, MMS accesses, and Host accesses. ADSP-21161N EZ-KIT Lite Evaluation System Manual 2-17...

  • Page 58: Tips And Tricks Using Hardware Breakpoints

    For more information on these illegal loca- tions, refer to your DSP’s Hardware Reference. Setting a Breakpoint on a Single Address To set a breakpoint on a single address, set the Start Address equal to the End Address. 2-18 ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 59: Restricted Software Breakpoints

    That is, under some conditions, break- points cannot be placed effectively. Such conditions depend on bus architecture, pipeline depth, and ordering of the EZ-KIT Lite and its tar- get processor. ADSP-21161N EZ-KIT Lite Evaluation System Manual 2-19...
  • Page 60 Using EZ-KIT Lite VisualDSP++ Interface 2-20 ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 61: Ez-Kit Lite Hardware Reference

    This chapter describes the hardware design of the ADSP-21161N EZ-KIT Lite board. The following topics are covered. • “System Architecture” on page 3-2 Describes the configuration of the ADSP-21161N EZ-KIT Lite board and explains how the board components interface with the processor. •...

  • Page 62: System Architecture

    A 25 MHz through-hole oscillator supplies the input clock to the proces- sor. Footprints are provided on the board for a surface-mount oscillator and a through-hole crystal for alternate user-installed clocks. The speed at ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 63: External Port

    AD1836 codec ( ). A 3.5 mm SPORT0 SPORT2 stereo jack and four RCA mono jacks facilitate an audio input, while a 3.5 mm stereo jack and eight RCA mono jacks facilitate an audio output. ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 64: Spi Audio Interface

    • All board voltages and grounds • Package footprints: 1x SOIC16 1x SOIC20 4x SOT23-6 1x PSOP44 2x SOT23 27x 0805 Analog Devices does not support and is not responsible for the effects of additional circuitry. ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 65: Jtag Emulation Port

    14-pin header. For a detailed description of the interface’s connectors, see EE-68 pub- lished on the Analog Devices website. For more information, see “JTAG Connector (P12)” on page 3-19.

  • Page 66: Mclk Selection Jumper (Jp3)

    JP10: Mic Gain Left JP7: ADC2 Input Mode Left JP8: ADC2 Input Mode Right Figure 3-2. Jumper Locations MCLK Selection Jumper (JP3) jumper is used to select the MCLK source for the AD1836 and AD1852. ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 67: Flag0 Enable Jumper (Jp4)

    SPI can no longer communicate with the AD1852. Sample Frequency Jumper (JP6) jumper is used to select the sample frequency for the AD1852 device. Table 3-3 shows the valid frequency modes. ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 68: Adc2 Input Mode Selection Jumpers (Jp7-8)

    JP10 microphone circuit (see Table 3-5). The gain for the left and right channel should be configured the same. Table 3-5. MIC Pre Amp Gain Jumper Position Gain Not Installed 0 dB ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 69: Adc1 Input Selection Jumper (Jp11)

    . The jumper settings are illustrated in Table 3-6). (The words are on the board as a LINE reference.) Table 3-6. Audio Input Jumper Settings Microphone Input Stereo LINE_IN (Default) JP11 JP11 LINE LINE ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 70: Processor Id Jumper (Jp19)

    Pins 3 & 4 Pins 5 & 6 Not installed Installed Not installed EPROM BOOT (default) (output) Installed Installed Not installed Host Processor Boot (input) Installed Not installed Installed (input) Serial Boot via SPI 3-10 ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 71: Clock Mode Selection Jumper (Jp21)

    Pins 5 & 6 Ratio Clock Ratio Not installed Installed Installed Not installed Installed Not installed Not installed Not installed Installed 1x (default) Installed Installed Installed Installed Installed Not installed Installed Not installed Installed ADSP-21161N EZ-KIT Lite Evaluation System Manual 3-11...

  • Page 72: Bms Enable Jumper (Jp22)

    JP26 SW2 Enable Jumper (JP27) push button is attached though a driver to of the processor. FLAG1 To disconnect the driver from (for example, to use as an output), FLAG1 remove JP27 3-12 ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 73: Leds And Push Buttons

    LEDs and push buttons. USB Monitor: LED10 VERF: LED9 DSP Reset: LED8 Reset: LED1 Power: LED11 FLAG4-9: LED2 - 7 Reset: IRQ0-2: SW5-7 FLAG0-3: SW1-4 Figure 3-3. LED and Push Button Locations ADSP-21161N EZ-KIT Lite Evaluation System Manual 3-13...

  • Page 74: Reset Leds (Led1 And Led8)

    LED indicates that there is a possible error in the audio stream VERF of the CS8414 digital receiver. The error may occur when digital audio cables disconnect from the optical or coaxial SPDIF connectors. 3-14 ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 75: Usb Monitor Led (Led10)

    Three push buttons are provided for general-purpose user interrupts. SW5– connect to the processor’s programmable FLAG pins. The push but- tons are active “ ” and, when pressed, send a to the HIGH High (1) ADSP-21161N EZ-KIT Lite Evaluation System Manual 3-15...

  • Page 76: Board Reset Push Button (Sw8)

    This section describes the connector functionality and provides informa- tion about mating connectors. Figure 3-4 shows the connector locations. USB Connector (P2) The USB connector ( ) is a standard Type B USB receptacle. 3-16 ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 77 EZ-KIT Lite Hardware Reference Figure 3-4. Connector Locations Part Description Manufacturer Part Number Type B USB receptacle Mill-Max 897-30-004-90-000 Digi-Key ED90003-ND Mating Connector (provided with the EZ-KIT Lite) USB cable Assmann AK672-5 Digi-Key AK672-5ND ADSP-21161N EZ-KIT Lite Evaluation System Manual 3-17...

  • Page 78: Audio Connectors (P4-8, P17)

    A 40-pin 0.05' spacing connector provides access to some of the proces- sor’s External Port signals. By default, this connector is not populated. Part Description Manufacturer Part Number 40-pin 0.05’ (male) Samtec FTSH-120-01-F-D-K Mating Connector Female to female cable Samtec FFSD-20-D-5.000-01-N 3-18 ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 79: Host Processor Interface Connector (P10)

    Berg 54102-T08-07 Link Port Connectors (P13–14) Each link port is connected to a 26-pin connector. Refer to EE-106 found on the ADI website at for more information http://www.analog.com about the link port connectors. ADSP-21161N EZ-KIT Lite Evaluation System Manual 3-19...

  • Page 80: Sport1 And Sport3 Connector (P15)

    Power Connector (P16) The power connector ( ) provides all of the power necessary to operate the EZ-KIT Lite board. Part Description Manufacturer Part Number 2.5 mm Power Jack ( SWITCHCRAFT RAPC712 Digi-Key SC1152-ND 3-20 ADSP-21161N EZ-KIT Lite Evaluation System Manual...

  • Page 81: Specifications

    Center pin +7V@2 amps Outer Ring Board Current Measurements The ADSP-21161N EZ-KIT Lite board provides two zero-ohm resistors that may be removed to measure current draw. Table 3-14 shows the resis- tor number, the voltage plane, and a description of the components on the plane.
  • Page 82 Specifications 3-22 ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 83 CY7C64603-128 PQFP128 CYPRESS CY7C64603-128NC USB-TX/RX MICROCON- TROLLER MMBT4124 SOT-23 FAIRCHILD MMBT4124 NPN TRANSISTOR 1A MMBT4401 SOT-23 FAIRCHILD MMBT4401 NPN TRANSISTOR 200MA 74LVC00AD SOIC14 U9, U27 PHILIPS 74LVC00AD CY7C1019BV33-15VC CYPRESS CY7C1019BV33-12VC SOJ32 128K X 8 SRAM ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 84 C40, C46, 12065A222JAT050 C52, C58, C64, C70, C76, C82 20 1 ADM708SAR SOIC8 ANALOG ADM708SAR VOLTAGE-SUPERVISOR DEVICES 21 1 AD1852 SSOP28 ANALOG AD1852JRS MULTI- DEVICES BIT-SIGMA-DELTA-DAC 22 1 AD1836AS MQFP52 ANALOG AD1836AS MULTI-CHAN- DEVICES NEL-96KHZ-CODEC ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 85 FIBER OPTIC REV MOD- 32 1 RCA 4X2 CON011 SWITCH- PJRAS4X2U01 CRAFT 33 1 RCA 1X1 CON012 SWITCH- PJRAN1X1U01 CRAFT 34 1 RCA 2X2 CON013 SWITCH- PJRAS2X2S01 CRAFT 35 2 LNKPRT 12X2 CON010 P13-14 HONDA RMCA-EA26LMY-0M03-A (TSUSHINK) ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 86 43 80 0.01uF 100V 10% 805 C2, C6-7, 08051C103KAT2A CERM C91-149, C154-155, C165-171, C184-C186, C174-179 44 11 0.22uF 25V 10% 805 C156-164, 08053C224FAT CERM C172, C183 45 16 0.1uF 50V 10% 805 C1,C5,C9-11, 08055C104KAT CERM C33,C87-90, C150-153, C173,C180 ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 87 33 100MW 5% 805 R1, R150, CR21-330JTR R176, R152 50 5 4.7K 100MW 5% 805 R184, R188, CR21-4701F-T R189, R191, R165 51 11 680 100MW 5% 805 R137-147 CR21-6800F-T 52 1 1M 100MW 5% 805 CR21-1004F-T ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 88 C80, C77 59 5 10uF 16V 10% B CT1-4, CT11 AVX TAJB106K016R TANT 60 1 22K 100MW 5% 805 R216 CR21-223J-T 61 7 100 100MW 5% 805 R123, R125, CR21-101J-T R127, R129, R131, R133, R135 ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 89 11.0K 1/8W 1% 1206 R59, R67, DALE CRCW12061102FTR1 R75, R83, R91, R99, R107, R115 70 1 68NF 50V 10% 805 MURRATA GRM40X7R683K050AL 71 8 120PF 50V 5% 1206 C13, C18, PHILLIPS 1206CG121J9B200 C23, C28, C187-190 ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 90 PANASONIC ERJ-8ENF3321V R78, R86, R94, R102, R110, R118 79 2 100 1/8W 1% 1206 R54, R57 PANASONIC ERJ-8ENF1000V 80 8 1.65K 1/8W 1% 1206 R64, R72, PANASONIC ERJ-8ENF1651V R80, R88, R96, R104, R112, R120 ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 91 CRCW1206-1002FRT1 92 2 RED-SMT LED001 LED1, LED8 PANASONIC LN1261C GULL-WING 93 1 GREEN-SMT LED001 LED11 PANASONIC LN1361C GULL-WING 94 8 604 1/8W 1% 1206 R65, R73, PANASONIC ERJ-8ENF6040V R81, R89, R97, R105, R113, R121 ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 92 IDC 3X2 IDC3X2 JP7-8, JP11, BERG 54102-T08-03 JP19-21 102 1 IDC 7X2 IDC7X2 BERG 54102-T08-07 HEADER 103 1 2.5A RESETABLE FUS001 F1 RAYCHEM SMD250-2 CORP. 104 2 3.5MM STEREO_JACK P7, P17 SHOGYO SJ-0359AM-5 CON001 A-10 ADSP-21161N EZ-KIT Lite Evaluation System Manual...
  • Page 93 ADSP-21161 EZ-KIT LITE Schematic ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES Title 21161N EZ-KIT LITE - TITLE PAGE Approvals Date Drawn Size Board No. Checked A0157-2000 Engineering Date Sheet 1 OF 24 11-13-2003_11:40...
  • Page 94 A[0:21] D[16:47] ADDR0 DATA16 L0ACK L0ACK SCLK0 SCLK0 ADDR1 DATA17 L0CLK L0CLK SFS0 SFS0 ADDR2 DATA18 L0D0 L0D[0:7] L0DAT0 SD0A SD0A ADDR3 DATA19 L0D1 L0DAT1 SD0B ADDR4 DATA20 L0D2 L0DAT2 3.3V ADDR5 DATA21 L0D3 L0DAT3 SCLK1 SCLK1 ADDR6 DATA22 L0D4 L0DAT4 SFS1 SFS1...
  • Page 95 A[0:14] D[16:47] L0D0 L0D[0:7] L0D1 L0D2 L0D3 L0D4 L0D5 L0D6 L0D7 L1D0 L1D[0:7] L1D1 L1D2 DQ10 DQ10 DQ10 L1D3 DQ11 DQ11 DQ11 L1D4 DQ12 DQ12 DQ12 L1D5 DQ13 DQ13 DQ13 L1D6 DQ14 DQ14 DQ14 L1D7 DQ15 DQ15 DQ15 DQML DQML DQML DQMH DQMH...
  • Page 96 A[0:18] D[16:23] 3.3V R175 JP22 SJ32 SHORTING JUMPER DEFAULT=INSTALLED IDC2X1 74LVC00AD 74LVC14A SOIC14 SOIC14 INSTALL JUMPER TO READ/WRITE OR BOOT FROM FLASH REMOVE JUMPER WHEN USING SPI OR NO BOOT MODE M29W040B PLCC32RS FLASH 512K X 8 ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES Title...
  • Page 97 3.3V R184 R188 R189 R191 4.7K 4.7K 4.7K 4.7K 3.3V USB_TMS USB_TCK TRST R187 USB_TRST USB_TDI R165 4.7K QS3257Q QSOP16 USB_EMU IDC7X2 JTAG HEADER PIN 3 SHOULD BE CUT QS3257Q QSOP16 JTAG HEADER CIRCUIT FOR EZ-KIT LITE ONLY REFER TO EE-68 FOR STANDARD JTAG HEADER CONNECTION.
  • Page 98 AUDIO_OSC R176 MCLK SHORTING JUMPER DEFAULT=2&3 IDC3X1 MCLK SOURCE FOR AD1836 AND AD1852 DSDATA2 SDATA INSTALL JUMPER ON 1 & 2 TO USE AUDIO OSCILALTOR DLRCLK FSYNC INSTALL JUMPER ON 2 & 3 TO USE CS8414 MCK DBCLK FER2 0.01UF 1206 VERF VERF...
  • Page 99 INSTALL JUMPER TO CONNECT CODEC TO SPI PORT (JP12 & JP13 NOT INSTALLED) REMOVE JUMPER TO USE FLAG0 FOR PUSH BUTTON OR EXPANSION HEADER ODVDD IS CONNECTED TO 3.3V 3.3V 3.3V SD0A ASDATA1 OUT1L+ OUT1L+ DAC1 LEFT ASDATA2 ASDATA2 OUT1L- OUT1L- SHORTING JUMPER...
  • Page 100 CON013 FER3 10UF 5.76K 5.76K CAP002 1206 1206 1206 LOOP_ADC1_LEFT 120PF 100PF 1206 1206 AGND 1206 IN1L- AGND VREF SSM2275 SOIC8 0.001UF 5.76K 5.76K 1206 1206 100PF 1206 ADC1 LEFT C187 120PF 1206 AGND 0.001UF 750K 1206 1206 IN1L+ SSM2275 SOIC8 AGND CON013...
  • Page 101 SHORTING JUMPER CON013 FER5 10UF DEFAULT=1&3 5.76K 5.76K CAP002 1206 1206 1206 SHORTING LOOP_ADC2_LEFT JUMPER ADC2 LEFT INPUT MODE DEFAULT=2&4 120PF 100PF 1206 1206 PGA MODE 3-5 & 4-6 HIGH PERFORMANCEMODE 1-3 & 2-4 IN2L2 IN2L- AGND AGND 1206 VREF SSM2275 SOIC8 0.001UF...
  • Page 102 MIC PRE AMP GAIN SJ12 1&2 20dB SHORTING 2&3 40dB JUMPER NONE 0 dB DEFAULT=1&2 IDC3X1 1.00K 1206 1206 820PF 1206 10.0K 1206 AVCC SJ13 SHORTING FER7 10UF JUMPER CAP002 DEFAULT=3&5 1206 SJ14 SSM2275 SOIC8 SHORTING JUMPER DEFAULT=4&6 10.0K 1206 2.00K 1206 IN2R1...
  • Page 103 CT34 68UF CAP003 DAC1_RIGHT AD8532AR SOIC8 R206 49.9K 1206 AGND CON001 CT35 68UF CAP003 AGND DAC1_LEFT AD8532AR SOIC8 R192 49.9K 1206 AGND ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES Title 21161N EZ-KIT LITE - DAC1 OUTPUT-STEREO JACK Approvals Date Drawn Size Board No.
  • Page 104 DAC1_LEFT 5.49K 100PF 1206 1206 11.0K 3.32K 1206 1206 OUT1L- CT26 330PF CON011 68UF CAP003 1206 100PF LOOP_DAC1_LEFT DAC1 LEFT 1206 SSM2275 680PF SOIC8 5.49K 1.65K 2200PF 49.9K 1206 1206 1206 1206 OUT1L+ 2.74K 220PF 1206 1206 AGND VREF AGND DAC1_RIGHT 5.49K 100PF...
  • Page 105 5.49K 100PF 1206 1206 11.0K 3.32K 1206 1206 OUT2L- CT28 330PF CON011 68UF CAP003 1206 100PF LOOP_DAC2_LEFT DAC2 LEFT 1206 SSM2275 680PF SOIC8 5.49K 1.65K 2200PF 49.9K 1206 1206 1206 1206 OUT2L+ 2.74K 220PF 1206 1206 AGND VREF AGND 5.49K 100PF 1206 1206...
  • Page 106 5.49K 100PF 1206 1206 11.0K 3.32K 1206 1206 OUT3L- CT30 330PF CON011 68UF CAP003 1206 100PF LOOP_DAC3_LEFT DAC3 LEFT 1206 SSM2275 680PF SOIC8 5.49K 1.65K 2200PF 49.9K 1206 1206 1206 1206 OUT3L+ 2.74K 220PF 1206 1206 AGND VREF AGND R101 5.49K 100PF 1206...
  • Page 107 R109 5.49K 100PF 1206 1206 R107 R110 11.0K 3.32K 1206 1206 OUT4L- CT32 330PF R113 CON011 68UF CAP003 1206 100PF LOOP_DAC4_LEFT DAC4 LEFT 1206 SSM2275 680PF SOIC8 R108 R112 R114 5.49K 1.65K 2200PF 49.9K 1206 1206 1206 1206 OUT4L+ R111 2.74K 220PF 1206...
  • Page 108 3.3V 3.3V EXFLAG0 EXFLAG3 R124 R130 R123 R129 JP26 FLAG0 FLAG3 IDC2X1 74LVC14A 74LVC14A SWT013 CT12 SWT013 CT15 SOIC14 SOIC14 SPST-MOMENTARY SPST-MOMENTARY SJ16 SHORTING JUMPER DEFAULT=1 & 2 3.3V 3.3V 3.3V R132 R136 EXFLAG1 EXIRQ0 EXIRQ2 R126 R125 R131 R135 JP27 FLAG1 IRQ0...
  • Page 109 3.3V LED1 LED8 RED-SMT RED-SMT LED001 LED001 R143 R144 LED9 LED10 LED11 AMBER-SMT AMBER-SMT GREEN-SMT LED001 LED001 LED001 DSP_RESET R145 R146 R147 FLAG4 FLAG[4:9] FLAG5 FLAG6 VERF FLAG7 74LVC00AD SOIC14 FLAG8 FLAG9 MONITOR 74LVC00AD 3.3V SOIC14 LED2 LED3 LED4 LED5 LED6 LED7 AMBER-SMT...
  • Page 110 3.3V 3.3V R158 R159 R160 R155 R156 R157 SJ26 JP20 SHORTING JUMPER EBOOT DEFAULT=3 & 4 JP19 LBOOT SJ27 SJ23 SHORTING SHORTING JUMPER JUMPER IDC3X2 DEFAULT=NOT INSTALLED DEFAULT=1 & 2 DSP ID IDC3X2 SJ24 SJ28 BOOT MODES SHORTING SHORTING JUMPER JUMPER DEFAULT=3 &...
  • Page 111 A[8:0] VCC 3.3V 1.8V EBOOT TIMEXP LBOOT EXIRQ2 DMAG1 MISO DMAR1 EXFLAG0 MOSI DMAG2 EXFLAG1 SPIDS DMAR2 EXFLAG2 SPICLK EXFLAG3 D[23:16] SBTS IDC5X1 EXIRQ0 DSP_RESET IDC6X2 EXIRQ1 REDY CON023 BMSTR BRST CON022 ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES Title 21161N EZ-KIT LITE - EXPANSION HEADERS Approvals...
  • Page 112 LINK PORT CONNECTORS SERIAL PORT CONENCTOR CLKSH ACKSH L0CLK D0SH L0ACK L0D0 D1SH L0D[0:7] SCLK1 L0D1 D2SH SFS1 R218 R217 L0D2 0.00 0.00 D3SH SD1A 1206 1206 L0D3 D4SH SD1B L0D4 D5SH L0D5 D6SH L0D6 D7SH SCLK3 L0D7 SFS3 SD3A SD3B CON014 LINKPORT...
  • Page 113 FER13 2.5A CHOKE_COIL FUS001 DO-214AA 5V_REG_IN INPUT OUTPUT ADP3339AKC-5 SOT-223 R167 CT19 CT20 1000PF 100K 10UF 0.1UF 10UF 0.1UF DO-214AA 1206 1206 FER9 1206 7_5V_POWER CON005 3.3V AGND 1000PF 1.8V FER10 1206 1206 3.3V DO-214AA SHGND INPUT OUTPUT INPUT OUTPUT SHGND ADP3338ARM-33 ADP3338ARM-18...
  • Page 114 3.3V VDDINT C100 C118 C119 C120 C121 C122 C123 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 3.3V VDDINT VDDEXT C101 C102 C103 C104 C105 C106 C107 C108 C124 C125 C126 C127 C128 C129 0.01UF...
  • Page 115 3.3V AVCC 3.3V 3.3V AVCC AVCC C145 C146 C147 C148 C149 C150 C151 C152 C153 C154 C155 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.1UF 0.1UF 0.1UF 0.1UF 0.01UF 0.01UF AGND AGND AGND SERIAL EEPROM (U7) DIGITAL RX (U8) NAND (U9) CODEC (U10) AUX DAC (U11) AVCC 3.3V...
