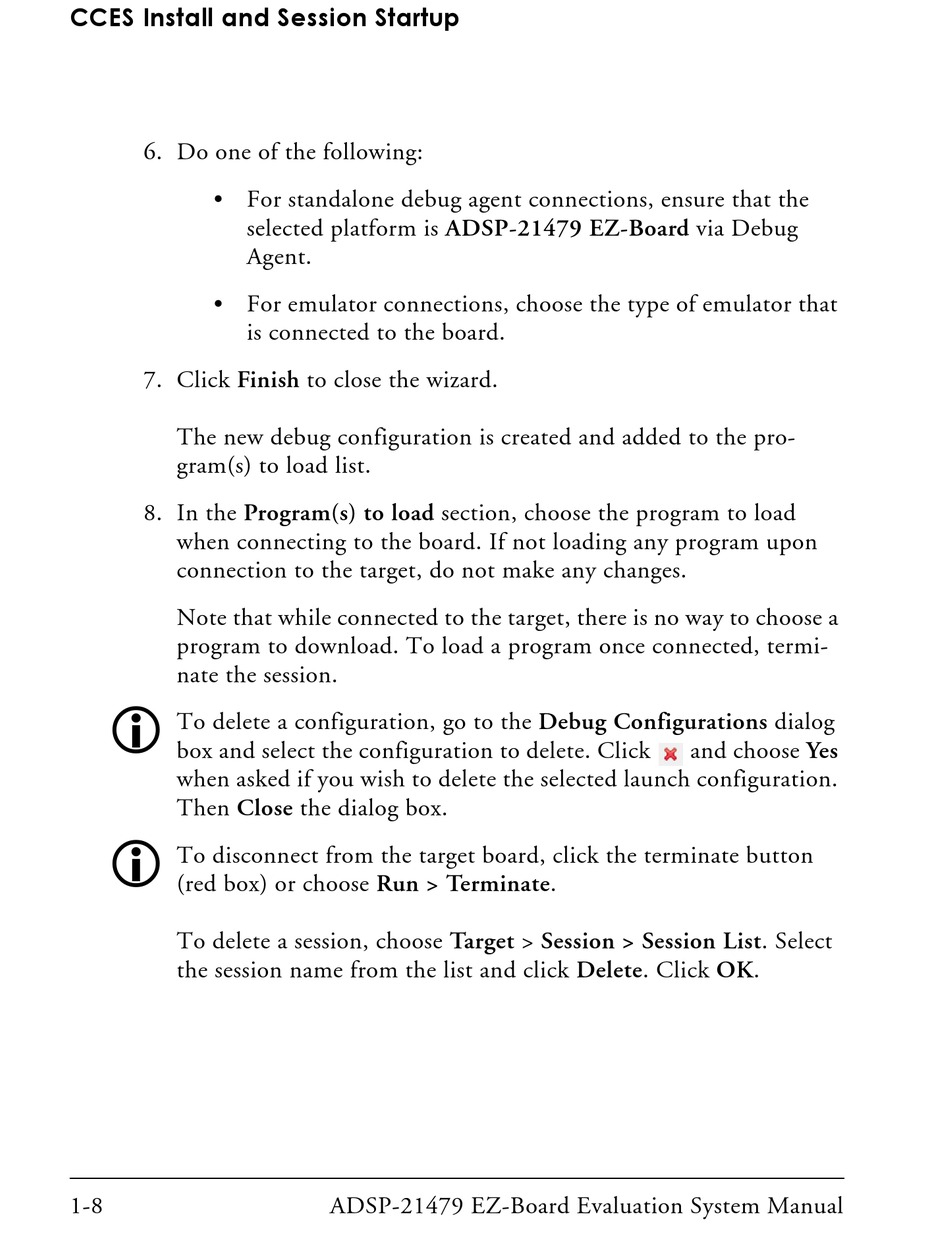

Analog Devices ADSP-21479 EZ-Board Manual page 28

CCES Install and Session Startup
6. Do one of the following:
• For standalone debug agent connections, ensure that the
selected platform is ADSP-21479 EZ-Board via Debug
Agent.
• For emulator connections, choose the type of emulator that
is connected to the board.
7. Click Finish to close the wizard.
The new debug configuration is created and added to the pro-
gram(s) to load list.
8. In the Program(s) to load section, choose the program to load
when connecting to the board. If not loading any program upon
connection to the target, do not make any changes.
Note that while connected to the target, there is no way to choose a
program to download. To load a program once connected, termi-
nate the session.

To delete a configuration, go to the Debug Configurations dialog
box and select the configuration to delete. Click
when asked if you wish to delete the selected launch configuration.
Then Close the dialog box.

To disconnect from the target board, click the terminate button
(red box) or choose Run > Terminate.
To delete a session, choose Target > Session > Session List. Select
the session name from the list and click Delete. Click OK.
1-8 ADSP-21479 EZ-Board Evaluation System Manual
and choose Yes
