Analog Devices ADSP-21479 EZ-Board Manual page 94

A
U1
N6
DAI_P1_Z DAI_P1
N8
DAI_P2_Z DAI_P2
L1
DAI_P3_Z DAI_P3
L14
DAI_P4_Z DAI_P4
M12
DAI_P5_Z DAI_P5
M11
DAI_P6_Z DAI_P6
1
M8
DAI_P7_Z DAI_P7
M13
DAI_P8_Z DAI_P8
N11
DAI_P9_Z DAI_P9
L11
DAI_P10_Z DAI_P10
J12
DAI_P11_Z DAI_P11
M14
DAI_P12_Z DAI_P12
P7
DAI_P13_Z DAI_P13
N14
DAI_P14_Z DAI_P14
K14
DAI_P15_Z DAI_P15
K12
DAI_P16_Z DAI_P16
L13
DAI_P17_Z DAI_P17
K13
DAI_P18_Z DAI_P18
P6
DAI_P19_Z DAI_P19
L12
DAI_P20_Z DAI_P20
B3
BOOT_CFG0 BOOT_CFG0
F3
BOOT_CFG1 BOOT_CFG1
H12
BOOT_CFG2 BOOT_CFG2
D4
CLK_CFG0 CLK_CFG0
B2
CLK_CFG1 CLK_CFG1
2
B5
RESET RESET
G1
DSP_XTAL XTAL
F1
DSP_CLKIN CLKIN
J4
RESETOUT
TP27
RESETOUT
ADSP-21479
BGA196
RN18
1 8
FLAG3/TIMEXP/MS3_Z R1A R1B
2 7
DATA0_Z R2A R2B
3 6
ADDR16_Z R3A R3B
4 5
R4A R4B
33
RNS005
RN26
1 8
DPI_P2_Z R1A R1B
2 7
DPI_P3_Z R2A R2B
3
3 6
DPI_P1_Z R3A R3B
4 5
ADDR12_Z R4A R4B
33
RNS005
RN27
1 8
DPI_P8_Z R1A R1B
2 7
DPI_P12_Z R2A R2B
3 6
DPI_P7_Z R3A R3B
4 5
DPI_P11_Z R4A R4B
33
RNS005
RN28
1 8
DPI_P9_Z R1A R1B
2 7
DPI_P5_Z R2A R2B
3 6
DPI_P6_Z R3A R3B
4 5
DPI_P10_Z R4A R4B
33
RNS005
RN29
1 8
DPI_P14_Z R1A R1B
4 2 7
DPI_P13_Z R2A R2B
3 6
DAI_P3_Z R3A R3B
4 5
DPI_P4_Z R4A R4B
33
RNS005
A
B
J1
DPI_P1 DPI_P1_Z
K1
DPI_P2 DPI_P2_Z
J2
DPI_P3 DPI_P3_Z
K2
DPI_P4 DPI_P4_Z
K3
DPI_P5 DPI_P5_Z
L4
DPI_P6 DPI_P6_Z
M4
DPI_P7 DPI_P7_Z
L3
DPI_P8 DPI_P8_Z
K4
DPI_P9 DPI_P9_Z
L2
DPI_P10 DPI_P10_Z
M5
DPI_P11 DPI_P11_Z
M2
DPI_P12 DPI_P12_Z
M1
DPI_P13 DPI_P13_Z
N1
DPI_P14 DPI_P14_Z
F13
FLAG0 FLAG0/IRQ0_Z
B13
FLAG1 FLAG1/IRQ1_Z
E14
FLAG2 FLAG2/IRQ2/MS2_Z
C12
FLAG3 FLAG3/TIMEXP/MS3_Z
C10 R462 0
EMU EMU
0402
B12
TRST TRST
C7
TCK TCK
B4
TMS TMS
C8
TDI TDI
C11 R203 33
TDO TDO
0402
TP26
C3
RTCLKOUT RTCLKOUT
H14
RTXI RTXI
G14
RTXO RTXO
RN30
FLAG3/MS3
1 8
SR_LD_O9_Z R1A R1B
DATA0
2 7
DAI_P13_Z R2A R2B
ADDR16
3 6
DAI_P1_Z R3A R3B
4 5
DAI_P19_Z R4A R4B
33
RNS005
RN31
1 8
DPI_P2 DAI_P10_Z R1A R1B
2 7
DPI_P3 DAI_P5_Z R2A R2B
3 6
DPI_P1 DAI_P20_Z R3A R3B
4 5
ADDR12 DAI_P16_Z R4A R4B
33
RNS005
RN32
1 8
DPI_P8 DAI_P7_Z R1A R1B
2 7
DPI_P12 SR_LD_O16_Z R2A R2B
3 6
DPI_P7 DAI_P6_Z R3A R3B
4 5
DPI_P11 DAI_P9_Z R4A R4B
33
RNS005
RN33
DPI_P9
1 8
MS1_Z R1A R1B
DPI_P5
2 7
DAI_P15_Z R2A R2B
DPI_P6
3 6
DAI_P18_Z R3A R3B
DPI_P10
4 5
DAI_P4_Z R4A R4B
33
RNS005
RN34
1 8
DPI_P14 DAI_P17_Z R1A R1B
2 7
DPI_P13 DAI_P12_Z R2A R2B
3 6
DAI_P3 DAI_P8_Z R3A R3B
4 5
DPI_P4 DAI_P14_Z R4A R4B
33
RNS005
B
RTXI
R515
100M
0603
U7
1
TERM1 TERM2
2
NC1
32.768KHZ
OSC008
C296
2PF
0402
RTC
3.3V
R225 R224
10K 10K
0402 0402
U6
5
SPI_MOSI SI
6
SPI_CLK SCK
SR_LD_O9
1
SPI_CS CS
DAI_P13
3
WP
DAI_P1
7
HOLD
DAI_P19
M25P16
SO8W
R223
10K
0402
DNP
DAI_P10
DAI_P5
DAI_P20
DAI_P16
DAI_P7
SR_LD_O16
DAI_P6
DAI_P9
R1
22
0402
DAI_P11_Z
MS1
DAI_P15
DAI_P18
DAI_P4
DAI_P17
DAI_P12
DAI_P8
DAI_P14
C
NOTE: SHUTTING OFF DIP SWITCHES SW1, SW2, SW3
SW7, OR SW14 ALLOWS A USER TO USE THESE DAI OR
DPI PINS VIA THE EXPANSION II INTERFACE.
RTXO
4
3
NC2
C293
2PF
DEFAULT: ALL ON EXCEPT POS 3 & 4 OFF
0402
DPI_P10
DPI_P11
DPI_P12
DPI_P13
DPI_P14
3.3V
DAI_P1
3.3V
DAI_P2
DAI_P3
R222
DAI_P4
10K
0402
DAI_P5
8 DNP
VCC
DAI_P6
2
SO SPI_MISO
DAI_P7
DAI_P8
GND
4
3.3V
DAI_P9
DAI_P10
C50
DAI_P11
0.01UF
0402
DAI_P12
DAI_P13
DAI_P14
DAI_P15
DAI_P16
DAI_P11 DAI_P17
DAI_P18
DAI_P19
DAI_P20
ANALOG
DEVICES

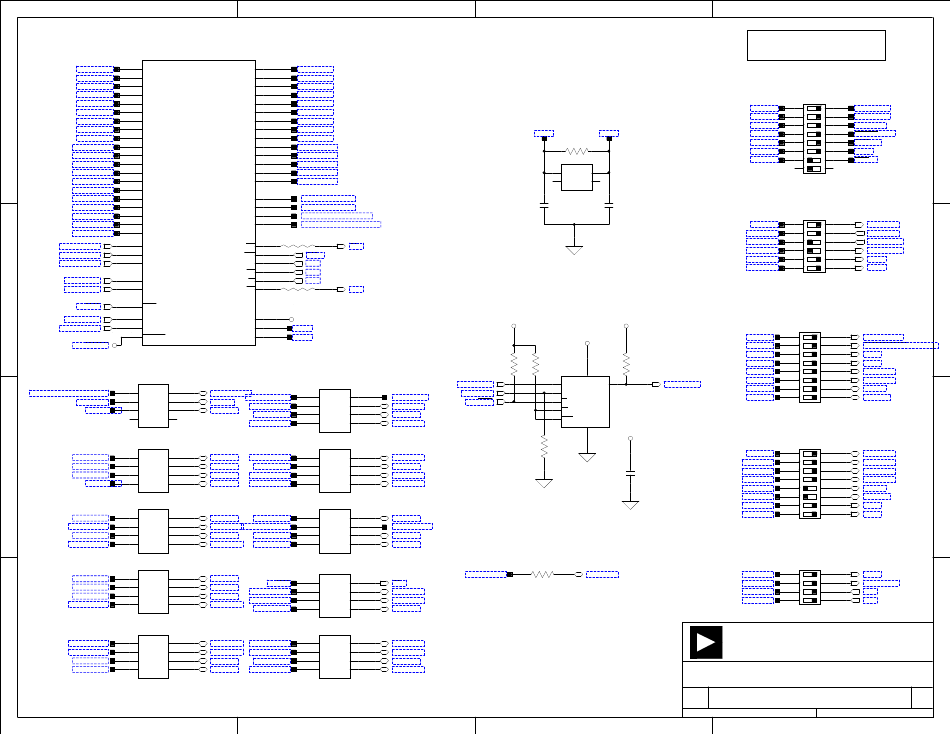

ADSP-21479 EZ-BOARD
Title
DSP - DAI, DPI, MLB INTERFACES
Size Board No.
C
Date 3-18-2010_14:14
C
D
SW3: DPI [1-8] ENABLE
DEFAULT: ALL ON
SW3
1 16
DPI_P1 SPI_MOSI
2 15 1
DPI_P2 SPI_MISO
3 14
DPI_P3 SPI_CLK
4 13
DPI_P4 AD1939_CS
5 12
DPI_P5 SPI_CS
6 11
DPI_P6 LED1
7 10
DPI_P7 QS_EN
8 9
DIP8
SWT016
SW14: DPI [9-14] ENABLE
SW14
1 12
DPI_P9 UART_TX
2 11
UART_RX
3 10
UART_RTS
4 9
UART_CTS
5 8
LED2
6 7
LED3
DIP6
SWT017
2
SW1: DAI [1-8] ENABLE
DEFAULT: ALL ON
SW1
1 16
SPDIF_OUT
2 15
AD1939_SOFT_RESET
3 14
LED4
4 13
LED5
5 12
ASDATA1
6 11
ASDATA2
7 10
ABCLK
8 9
ALRCLK
DIP8
SWT016
SW2: DPI [9-16] ENABLE
DEFAULT: ALL ON EXCEPT POS. 5 & 6 OFF
SW2
1 16
DSDATA4
2 15
DSDATA3
3 14
3
DSDATA2
4 13
DSDATA1
5 12
DBCLK
6 11
DLRCLK
7 10
LED6
8 9
LED7
DIP8
SWT016
SW7: DPI [17-20] ENABLE
DEFAULT: ALL ON
SW7
1 8
LED8
2 7
SPDIF_IN
3 6
PB3
4 5
PB4
DIP4
SWT018
20 Cotton Road
Nashua, NH 03063
4
PH: 1-800-ANALOGD
Rev
A0229-2009
0.1B
Sheet 4 of 17
D
