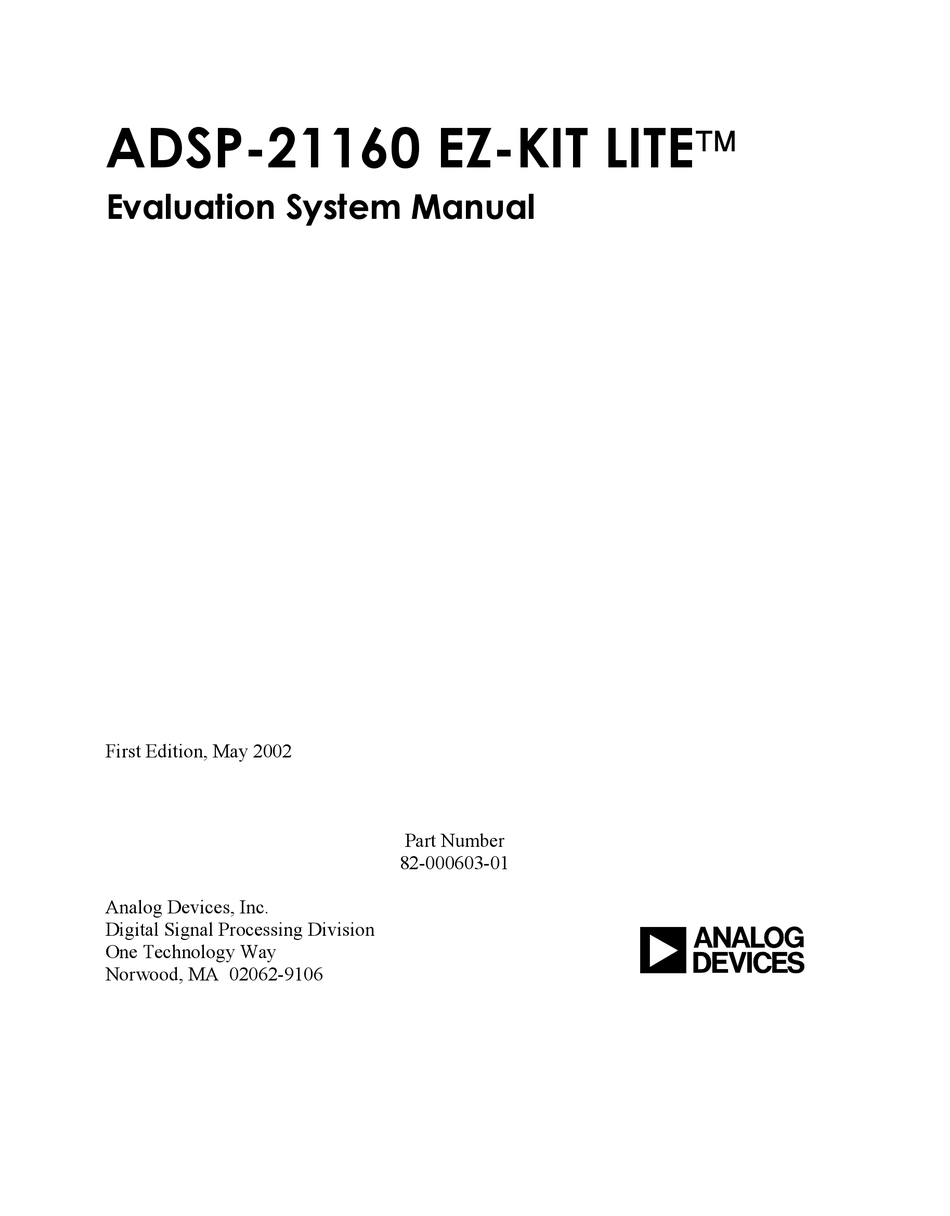

ADSP-21160 EZ-KIT LITE
Evaluation System Manual
First Edition, May 2002
Part Number
82-000603-01
Analog Devices, Inc.
Digital Signal Processing Division
a
One Technology Way
Norwood, MA 02062-9106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADSP-21160 EZ-KIT LITE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Analog Devices ADSP-21160 EZ-KIT LITE

  • Page 1 ADSP-21160 EZ-KIT LITE Evaluation System Manual First Edition, May 2002 Part Number 82-000603-01 Analog Devices, Inc. Digital Signal Processing Division One Technology Way Norwood, MA 02062-9106...
  • Page 2 Devices or from an authorized dealer. Disclaimer Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use;...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS LIST OF TABLES......................v LIST OF FIGURES ......................v INTRODUCTION....................1-1 For More Information About Analog Devices Products......... 1-3 For Technical or Customer Support ..............1-3 Purpose of This Manual .................. 1-3 Intended Audience................... 1-4 Manual Contents ..................... 1-4 Online Help .....................
  • Page 4 SPORT0 (P11)..................4-38 Specifications ....................4-38 4.6.1 Power Supply..................4-38 4.6.2 Mechanical Dimensions ................. 4-39 APPENDIX A: BILL OF MATERIALS................I A.1: ADDS-21160-EZLITE................... I A.2: ADDS-21160N-EZLITE..................V APPENDIX B: SCHEMATIC..................IX INDEX ..........................X ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 5 Figure 4-2: Jumper and DIP Switch Locations.............. 4-31 Figure 4-3: Audio Input Jumper Settings (JP1) ............. 4-32 Figure 4-4: LED and Push Button Locations..............4-33 Figure 4-5: Connector Locations ................... 4-35 Figure 4-6: Mechanical Drawing ................... 4-39 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 6: Introduction

    ADSP-21160 DSP and the evaluation board peripherals. Analog Devices JTAG emulators offer faster communication between the host PC and target hardware. Analog Devices carries a wide range of in-circuit emulation products. To learn more about Analog Devices emulators and DSP development tools, go to http://www.analog.com/dsp/tools/.
  • Page 7 95 MHz Core Clock Speed o Boot Mode – switch configurable • USB Debugging Interface  • Analog Devices AD1881A 48 kHz AC’97 SoundMAX Codec o Jumper-Selectable Line-In or Mic-In 3.5-mm Stereo Jack o Line-Out 3.5-mm Stereo Jack • SBSRAM o 512 KB (64K x 32-bits x 2-chips) •...
  • Page 8: For More Information About Analog Devices Products

    The ADSP-21160 EZ-KIT Lite Evaluation System Manual provides instructions for installing the software on your PC and using the hardware. This manual provides guidelines for running your own code on the ADSP-21160 EZ-KIT Lite evaluation system. This manual also provides a description of the use and configuration of the components on the evaluation board.
  • Page 9: Intended Audience

    1.4 Intended Audience This manual is a user’s guide and reference to the ADSP-21160 EZ-KIT Lite evaluation system. DSP programmers who are familiar with the Analog Devices SHARC DSP architecture, operation, and programming are the primary audience for this manual.
  • Page 10: Online Help

    To view VisualDSP++ Help, click on the Help menu item or go to the Windows task bar and select Start\Programs\VisualDSP\VisualDSP++ Help. To view help on additional ADSP-21160 EZ-KIT Lite evaluation system features, go to the windows task bar and select Start\Programs\VisualDSP\EZ-KIT Help.
  • Page 11: Getting Started

    2 GETTING STARTED 2.1 Overview This chapter provides the information you need to begin using ADSP-21160 EZ-KIT Lite evaluation system. For correct operation, install the software and hardware in the order presented in section 2.4. This chapter has the following sections: •...
  • Page 12: Pc Configuration

    Installation Tasks The following tasks are provided for the safe and effective use of the ADSP-21160 EZ-KIT Lite evaluation system. Follow these instructions in the order presented to ensure correct operation of your software and hardware. 1. VisualDSP++ software installation 2.
  • Page 13: Installing The Visualdsp++ License

    Store unused EZ-KIT Lite boards in the protective shipping package. The ADSP-21160 EZ-KIT Lite board is designed to run outside your personal computer as a stand-alone unit. You do not have to open your computer case.
  • Page 14: Figure 2-1: Ez-Kit Lite Hardware Setup

    3. Plug the provided power supply into P4 on the EZ-KIT Lite board. Visually verify that the green power LED (LED6) is on. Also verify that the two red reset LEDs (LED1 and LED8) go on for a moment and then go off. ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 15: Installing The Ez-Kit Lite Usb Driver

    4. Connect the USB cable to an available full-speed USB Port on your PC and to P7 on the ADSP-21160 EZ-KIT Lite board. 2.4.5 Installing the EZ-KIT Lite USB Driver The EZ-KIT Lite evaluation system can be installed on Windows 98, Windows 2000, And Windows XP and requires one full-speed USB port.
  • Page 16: Figure 2-3: Search For The Driver

    3. Select Search for the best driver for your device as shown in Figure 2-3. Figure 2-3: Search for the Driver 4. Click Next. 5. Select CD-ROM drive as shown in Figure 2-4. Figure 2-4: Search the CD-ROM 6. Click Next. 2-11 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 17: Figure 2-5: The Driver Is Located

    Windows 98 will locate the WmUSBEz.inf file that is on the CD-ROM as shown Figure 2-5. Figure 2-5: The Driver is Located 7. Click Next. The Copying Files dialog box appears (Figure 2-6). Figure 2-6: Search for .sys File Dialog Box 8. Click Browse. 2-12 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 18: Figure 2-7: Open The .Sys File

    Figure 2-7 will appear. Figure 2-7: Open the .sys File 9. In Drives select your CD-ROM drive. 10. Click OK. Figure 2-8 will appear. Figure 2-8: Copying Files Dialog Box 11. Click OK. 2-13 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 19: Figure 2-9: Finish The Software Installation

    The driver installation is now complete as shown in Figure 2-9. Figure 2-9: Finish the Software Installation 12. Click Finish to exit the wizard. Verify the installation by following the instructions in section 2.4.6. 2-14 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 20: Figure 2-10: Found New Hardware Wizard

    2.4.5.2 Windows 2000 USB Driver Installation The Windows 2000 USB driver must first be installed before using the ADSP-21160 EZ-KIT Lite evaluation system for the first time. To install the USB Driver: 1. Insert the EZ-KIT Lite disc into the CD-ROM drive.
  • Page 21: Figure 2-11: Search For A Suitable Driver

    3. Select Search for a suitable driver for my device as shown in Figure 2-11. Figure 2-11: Search for a Suitable Driver Click Next. 2-16 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 22: Figure 2-12: Locate Driver Files

    5. Ensure that CD-ROM drives is selected as shown in Figure 2-12. Figure 2-12: Locate Driver Files 6. Click Next. 2-17 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 23: Figure 2-13: Driver File Search Results

    Figure 2-13 appears. Figure 2-13: Driver File Search Results 7. Click Next. 2-18 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 24: Figure 2-14: Completing Driver Installation Dialog Box

    Windows 2000 will automatically install the ADSP-21160 EZ-KIT Lite driver. The driver installation is now complete as shown in Figure 2-14. Figure 2-14: Completing Driver Installation Dialog Box 8. Click Finish to exit the wizard. Verify the installation by following the instructions in section 2.4.6.
  • Page 25: Figure 2-15: Found New Hardware Wizard

    2.4.5.3 Windows XP USB Driver Installation The Windows XP USB driver must first be installed before using the ADSP-21160 EZ-KIT Lite evaluation system for the first time. To install the USB Driver: 1. Insert the EZ-KIT Lite disc into the CD-ROM drive.
  • Page 26: Figure 2-16: Search For The Best Driver

    4. Select Search for the best driver in these locations. 5. Select Include this location in the search and put the path to your CD-ROM drive as shown in Figure 2-16. 6. Click Next. 2-21 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 27: Verifying Driver Installation

    Windows XP will automatically install the ADSP-21160 EZ-KIT Lite driver. The driver installation is now complete as shown in Figure 2-17. Figure 2-17: Completing Driver Installation Dialog Box 7. Click Finish to exit the wizard. Verify the installation by following the instructions in section 2.4.6.
  • Page 28: Starting Visualdsp

    7. Type a new target name in Session name or accept the default name. 8. Click OK to return to the Session List dialog box. 9. Highlight the new session and click Activate. 2-23 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 29: Using The Ez-Kit Lite Evaluation System

    3 USING THE EZ-KIT LITE EVALUATION SYSTEM 3.1 Overview This chapter provides specific information to assist you with developing programs for the ADSP-21160 EZ-KIT Lite board. This information appears in the following sections: • EZ-KIT Lite License Restrictions (Section 3.2) Describes the restrictions of the VisualDSP++ license shipped with the EZ-KIT Lite evaluation system.
  • Page 30: Ez-Kit Lite License Restrictions

    ADSP-21160 SHARC DSP Hardware Reference. The memory map in Table 3-1 is dependant on the value of the MSIZE bits in the SYSCON register. The memory maps shows MSIZE set to 1100b. 3-25 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 31: Using The Flags And External Irqs

    ADSP-21160 SHARC DSP Hardware Reference. All of the flags and external ~IRQs pins are brought out to expansion connector P2. The location of the signals can be found in APPENDIX B: SCHEMATIC. 3-26 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 32: Example Programs

    ~IRQ0 button is pushed. 3.5 Example Programs Example programs are provided with the ADSP-21160 EZ-KIT Lite evaluation system to demonstrate various capabilities of the board. These programs are installed with the EZ-KIT Lite software and can be found in \…\VisualDSP\ 211xx\EZ-KITs\ADSP-21160\Examples.
  • Page 33: Ez-Kit Lite Hardware Reference

    4 EZ-KIT LITE HARDWARE REFERENCE 4.1 Overview This chapter describes the hardware design of the ADSP-21160 EZ-KIT Lite board. The following topics are covered: • System Architecture (Section 4.2) Describes the configuration of the DSP and how all of the components on the board interface with the DSP.
  • Page 34: External Port

    SPORT0 signals. The codec can be held in reset by driving FLAG3 low (0). The DSP must drive FLAG3 high (1) for the codec to function. ! NOTE: The TCLK0 and RCLK0 pins are shorted together using R19 and R20. 4-29 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 35: Expansion Interface

    Additional circuitry can also add extra loading to signals, decreasing their maximum effective speed. ! Analog Devices does not support and is not responsible for the effects of additional circuitry on the EZ-KIT Lite evaluation system.
  • Page 36: Jumper And Dip Switch Settings

    3 and 5 and pins 4 and 6, P9 connects to the stereo LINE_IN channel of the AD1881A codec. These jumper settings are illustrated Figure 4-3. (The labels MIC and LINE appear on the board as a reference) 4-31 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 37: Boot Mode Select Switch (Sw1)

    Pin 2 Pin 1 Boot from 8-bit flash (Default) (Output) Off (Input) Boot from host Off (Input) Boot from Link Port On (Input) No Boot (execute from external) On (Input) Reserved X (Input) Reserved 4-32 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 38: Leds And Push Buttons

    When LED7 is lit, it indicates that the master reset of all the major ICs is active. When LED1 is lit, the USB interface chip (U11) is being reset. The USB chip will reset on power-up and if USB communication has not been initialized. 4-33 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 39: Flag Leds (Led2, Led3, Led4)

    IRQs when programming the DSP. Table 4-4 shows the IRQ signal and the switch to which it is connected. Table 4-4: Programmable Flag Switches Push Button DSP Programmable Reference Designator Flag Pin ~IRQ0 ~IRQ1 ~IRQ2 4-34 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 40: Reset Push Button (Sw2)

    USB is by powering down the board. 4.5 Connectors This section describes the function of the connectors and gives information about mating connectors. The following figure shows the locations of the connectors. Figure 4-5: Connector Locations 4-35 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 41: Expansion Interface (P1, P2, P3)

    4.5.1 Expansion Interface (P1, P2, P3) Three board-to-board connector footprints provide the signals for most of the DSP peripheral interfaces. Analog Devices does not populate these connectors or provide any additional support for this interface. See section 4.2.3, for more information on the Expansion Interface.
  • Page 42: Link Ports (P5, P6)

    ! NOTE: When using an emulator with the EZ-KIT Lite board, follow the connection instructions provided with the emulator. 4.5.6 Audio (P9, P10) There are two 3.5mm stereo audio jacks: one input, and one output. 4-37 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 43: Sport0 (P11)

    4.6.1 Power Supply The power connector supplies DC power to the EZ-KIT Lite board. Table 4-11 shows the power connector pinout. Table 4-11: Power Connector Terminal Connection Center pin +7.5 VDC@2amps Outer Ring 4-38 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 44: Mechanical Dimensions

    The following figure shows the location of the mounting holes as well as pin 1 of each of the expansion connectors. 5.000 4.750 3.875 3.750 2.500 1.400 1.300 1.125 0.250 0.000 Figure 4-6: Mechanical Drawing 4-39 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 45: Appendix A: Bill Of Materials

    8-BIT-PARALLEL-SERIAL CY7C4201V-15AC TQFP32 CYPRESS CY7C4201V-15AC 64-BYTE-FIFO 12.0MHZ THR OSC006 DIG01 300-6027-ND CRYSTAL SN74AHC1G00 SOT23-5 SN74AHC1G00DBVR SINGLE-2-INPUT-NAND MT58L64L32 TQFP100_B U8-9 MICRON MT58L64L32FT-10 64KX32-SBSRAM LT1765 SO-8 LINEAR TECH LT1765ES8 ADJUSTABLE-3A-SWITCH-REG 40MHZ SMT OSC003 SG-8002CA-PCC- DIGIKEY ND40.0MHZ ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 46 C82-87, C89, C91, C94, C96- 97, C99-100, C103-109, C116 0.22uF 25V 10% 805 08053C224FAT CERM C24, C26, C34, C45, C51-52, 0.1uF 50V 10% 805 C55-57, C59-60, C63, C66- 08055C104KAT CERM 69, C71-73, C88, C90, C92- 93, C95, C98 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 47 30PF 100V 5% 1206 C17-18 12061A300JAT2A 10 100MW 5% 805 DALE CRCW0805-10R0FRT1 10UF 25V +80-20% 1210 C22, C33, C46-49 MURATA GRM235Y.5V106Z025 53.6K 1/10W 1% 805 PHILIPS 9C08052A5362FKRT/R 10UH 47+/-20 IND001 L1-2 SLF7045T-100M1R1-2 10K 31MW 5% RNET8 746X101103J ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 48 TANT -55+125 QS3257Q QSOP16 U14-15 ANALOG DEV. ADG774ABRQ QUICKSWITCH-257 IDC 3X2 IDC3X2 BERG 54102-T08-03 IDC 7X2 IDC7X2 BERG 54102-T08-07 IDC 2PIN_JUMPER SJ1-2 MOLEX 15-38-1024 2.5A RESETABLE FUS001 RAYCHEM SMD250-2 CORP. 3.5MM STEREO_JACK CON001 P9-10 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 49: A.2: Adds-21160N-Ezlite

    SG-8002CA-PCC- DIGIKEY ND47.5MHZ 1000pF 50V 5% 1206 C40, C42 12065A102JAT2A CERM 0.1uF 50V 10% 1206 C9-10 PHILIPS 12062R104K9BB2 CERM AD1881AJST LQFP48 AD1881AJST SOUNDMAX-CODEC ADM708SAR SOIC8 ANALOG ADM708SAR VOLTAGE-SUPERVISOR ADP3339AKC-5 SOT-223 ANALOG ADP3339AKC-5-REEL 5V-1.5A REGULATOR ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 50 54, R57, R59-61, R65-67, R72, R74, R76, R84 33 100MW 5% 805 R2-3, R46 CR21-330JTR 4.7K 100MW 5% 805 R55-56, R58, R62, R92 CR21-4701F-T 1M 100MW 5% 805 CR21-1004F-T 1.5K 100MW 5% 805 CR21-1501F-T ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 51 32.4K 1/10W 1% 805 PHILIPS 9C08052A3242FKRT/R 102K 1/8W 1% 1206 PHILIPS 9C12063A1023FKRT/R 1K 1/8W 5% 1206 CR32-102J-T 10K 1/8W 5% 1206 R13-15, R21 DALE CRCW1206-1002FRT1 100K 1/8W 5% 1206 CR1206-1003FTR1 20.0K 1/8W 1% 1206 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 52 TANT -55+125 QS3257Q QSOP16 U14-15 ANALOG DEV. ADG774ABRQ QUICKSWITCH-257 IDC 3X2 IDC3X2 BERG 54102-T08-03 IDC 7X2 IDC7X2 BERG 54102-T08-07 IDC 2PIN_JUMPER SJ1-2 MOLEX 15-38-1024 2.5A RESETABLE FUS001 RAYCHEM SMD250-2 CORP. 3.5MM STEREO_JACK CON001 P9-10 VIII ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 53: Appendix B: Schematic

    APPENDIX B: SCHEMATIC ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 54: Index

    ..........4-34 installation.........2-8, 2-15 Codec ........... 4-28 verification ........2-20 restrictions........3-23 Windows 2000 USB Driver ..2-16 Windows 98 USB Driver ..... 2-11 interaces SBSRAM ........3-23, 4-28 audio..........4-36 SPORT0 ........4-28, 4-37 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
  • Page 55 ......2-10 IRQs ..........4-33 VisualDSP++ SW1..........4-31 Help..........1-5 SW2..........4-34 installation........2-8 SW3..........4-33 license ........2-9, 3-23 SW4..........4-33 starting.......... 2-21 SW5..........4-33 voltage core..........4-27 USB..........4-36 peripheral ........4-27 ADSP-21160 EZ-KIT Lite Evaluation System Manual...
