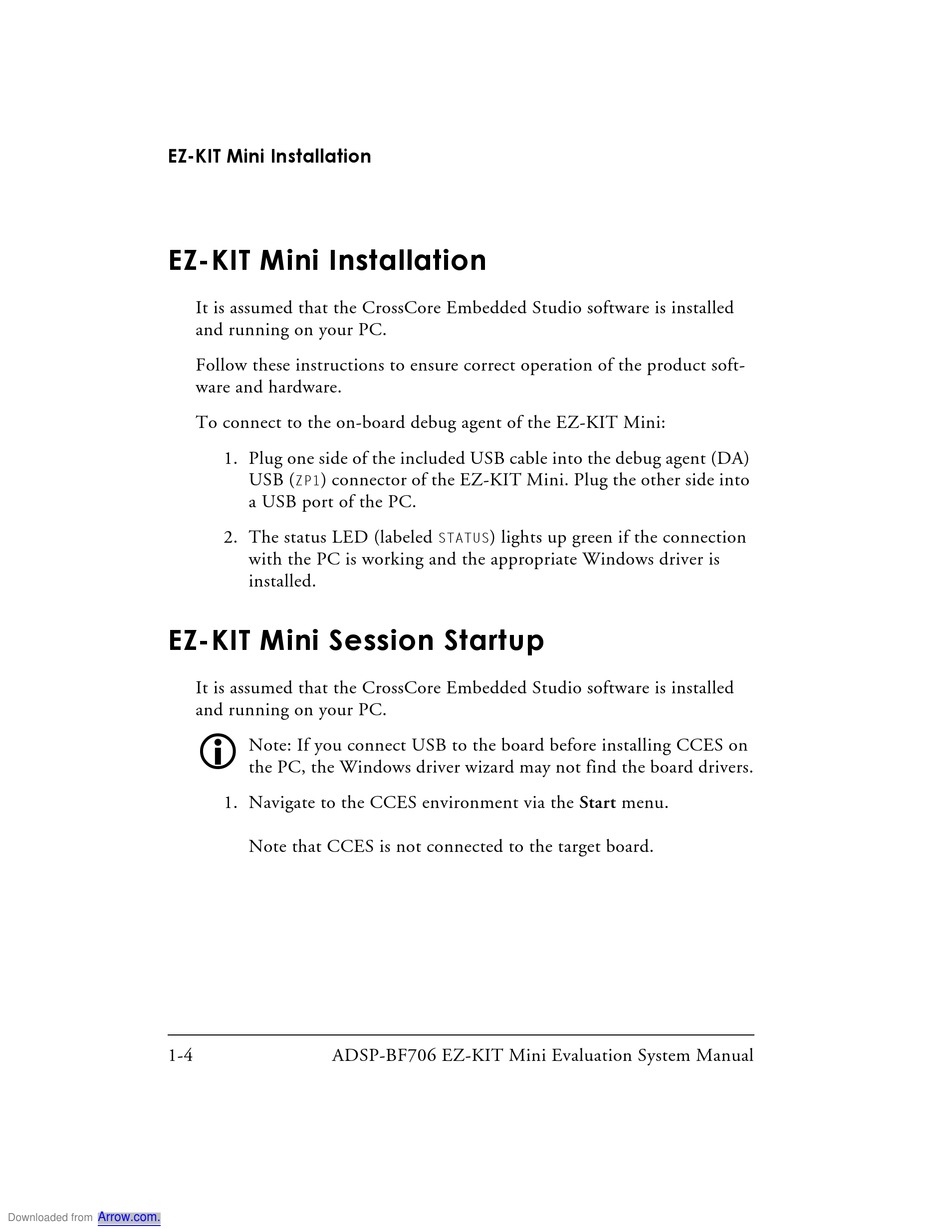

EZ-KIT Mini Installation

EZ-KIT Mini Installation

EZ-KIT Mini Session Startup

1-4
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
It is assumed that the CrossCore Embedded Studio software is installed
and running on your PC.
Follow these instructions to ensure correct operation of the product soft-
ware and hardware.
To connect to the on-board debug agent of the EZ-KIT Mini:
1. Plug one side of the included USB cable into the debug agent (DA)
USB ( ) connector of the EZ-KIT Mini. Plug the other side into
ZP1
a USB port of the PC.
2. The status LED (labeled
with the PC is working and the appropriate Windows driver is
installed.
It is assumed that the CrossCore Embedded Studio software is installed
and running on your PC.

Note: If you connect USB to the board before installing CCES on
the PC, the Windows driver wizard may not find the board drivers.
1. Navigate to the CCES environment via the Start menu.
Note that CCES is not connected to the target board.
ADSP-BF706 EZ-KIT Mini Evaluation System Manual
) lights up green if the connection
STATUS
