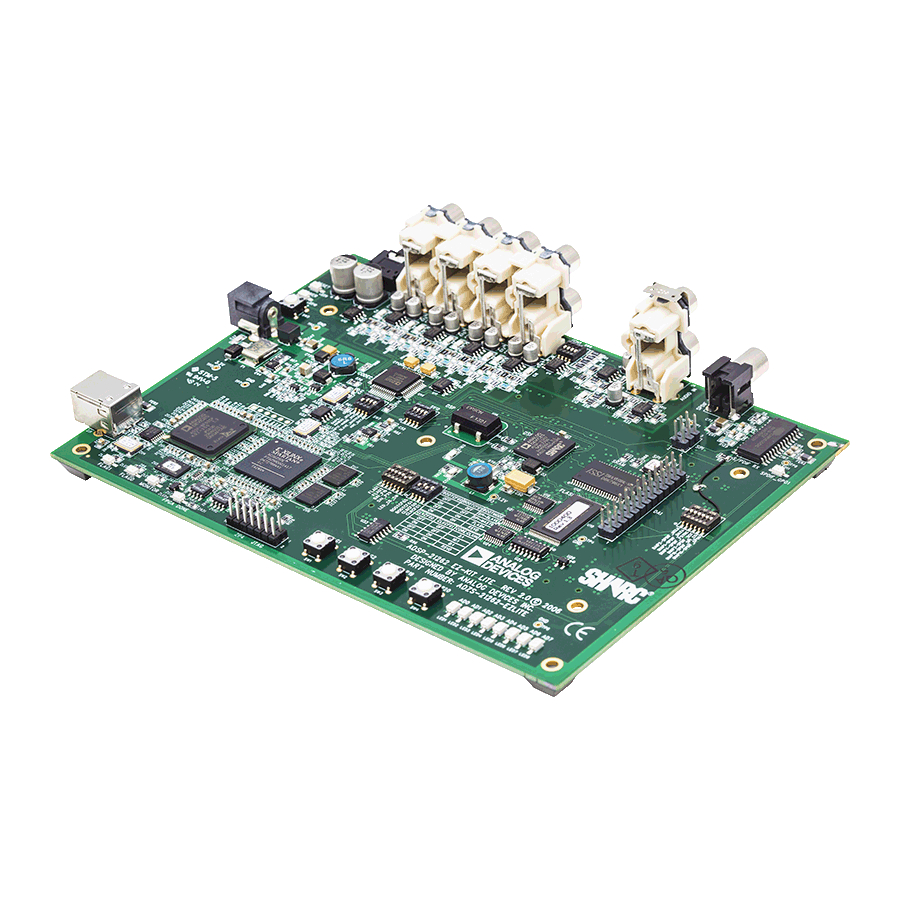

ADSP-21262 EZ-KIT Lite
®
Evaluation System Manual
Revision 3.2, August 2012
Part Number
82-000800-01
Analog Devices, Inc.
One Technology Way
a
Norwood, Mass. 02062-9106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADSP-21262 EZ-KIT Lite and is the answer not in the manual?

Questions and answers

Summary of Contents for Analog Devices ADSP-21262 EZ-KIT Lite

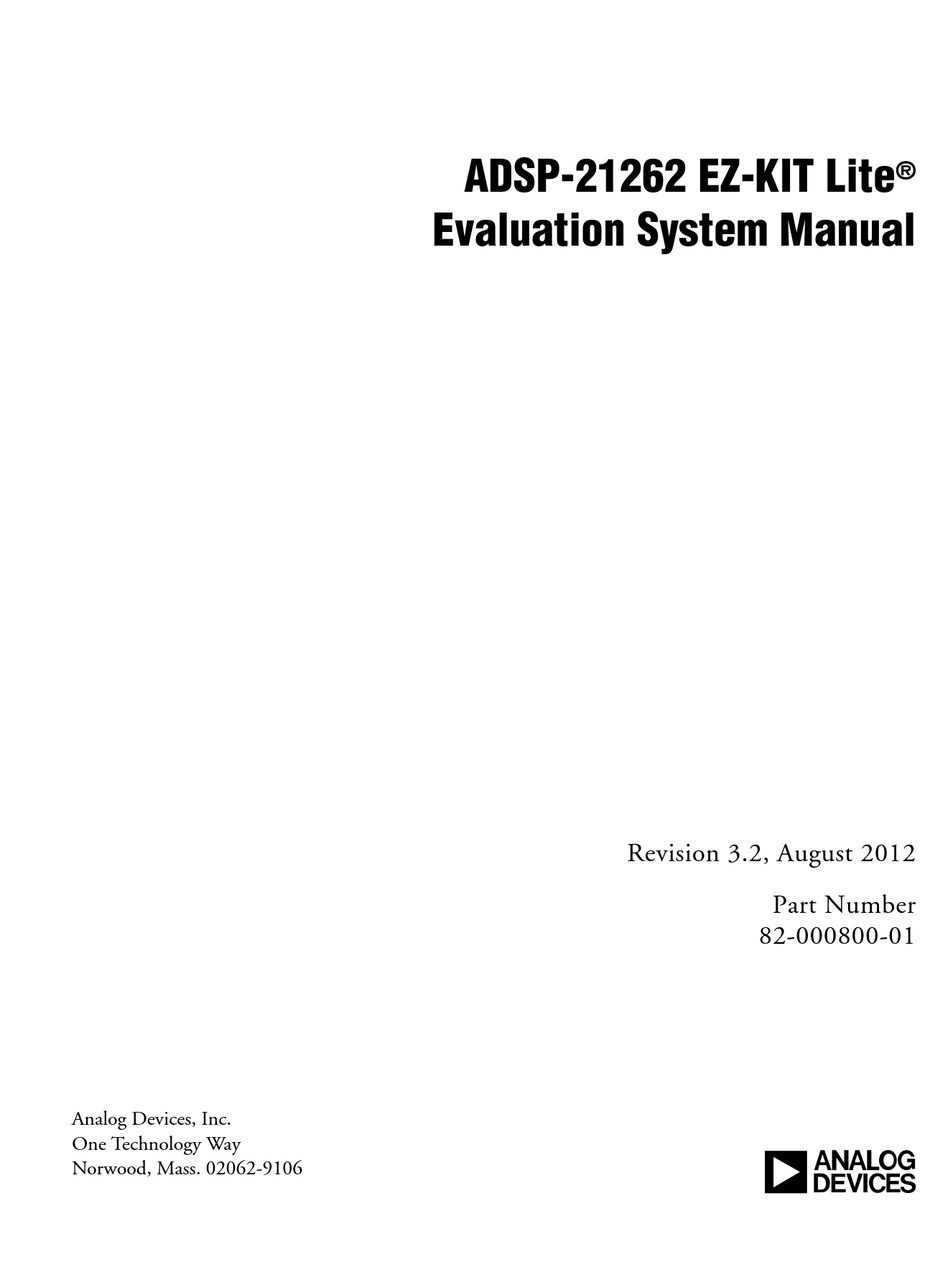

  • Page 1 ADSP-21262 EZ-KIT Lite ® Evaluation System Manual Revision 3.2, August 2012 Part Number 82-000800-01 Analog Devices, Inc. One Technology Way Norwood, Mass. 02062-9106...
  • Page 2 Analog Devices, Inc. Printed in the USA. Disclaimer Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use;...
  • Page 3 Regulatory Compliance The ADSP-21262 EZ-KIT Lite evaluation system is designed to be used solely in a laboratory environment. The board is not intended for use as a consumer end product or as a portion of a consumer end product. The...
  • Page 5: Table Of Contents

    What’s New in This Manual ............xiv Technical Support ................ xiv Supported Processors ..............xv Product Information ..............xv Analog Devices Web Site ............xv EngineerZone ................. xvi Related Documents ..............xvii Notation Conventions ..............xvii ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 6 ADSP-21262 EZ-KIT LITE HARDWARE REFERENCE System Architecture ..............2-2 Parallel Port ................2-3 DAI Interface ................2-4 SPI Interface ................2-6 Flag Pins ................. 2-6 Expansion Interface ..............2-7 JTAG Emulation Port ............. 2-8 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 7 Audio In RCA Connector (J4) ..........2-17 Audio Out RCA Connector (J5) ..........2-18 Headphone Out Jack (J6) ............2-18 Power Jack (J7) ..............2-18 S/PDIF Coax Connector (J8) ..........2-19 SPI Header (P2) ..............2-19 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 8 Contents DAI Header (P3) ..............2-20 USB Connector (ZJ1) ............2-20 JTAG Header (ZP4) .............. 2-21 ADSP-21262 EZ-KIT LITE BILL OF MATERIALS ADSP-21262 EZ-KIT LITE SCHEMATIC INDEX viii ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 9 PREFACE ® Thank you for purchasing the ADSP-21262 EZ-KIT Lite , Analog ® Devices, Inc. evaluation system for SHARC processors (DSPs). The SHARC processors are based on a 32-bit super Harvard architecture that includes a unique memory architecture comprised of two large...
  • Page 10: Product Overview

    ADSP-21262 processor and the evaluation board peripherals. Analog Devices JTAG emulators offer faster communication between the host PC and target hardware. Analog Devices carries a wide range of in-circuit emulation products. To learn more about Analog Devices emulators and processor development tools, go to http://www.analog.com/dsp/tools...
  • Page 11 FLAG • Expansion interface (type A) • Parallel port, s, DAI, SPI FLAG • Other features • JTAG ICE 14-pin header • 0-ohm resistors for processor current measurement • SPI header • DAI header ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 12: Purpose Of This Manual

    Intended Audience The primary audience for this manual is a programmer who is familiar with Analog Devices processors. This manual assumes that the audience has a working knowledge of the appropriate processor architecture and instruction set. ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 13: Manual Contents

    Preface Programmers who are unfamiliar with Analog Devices processors can use this manual but should supplement it with other texts that describe your target architecture. For the locations of these documents, see “Related Documents”. Programmers who are unfamiliar with CCES or VisualDSP++ should refer to the online help and the user’s manuals.
  • Page 14: What's New In This Manual

    Manual. The manual has been updated to include CCES information. In addition, modifications and corrections based on errata reports against the previous manual revision have been made. For the latest version of this manual, please refer to the Analog Devices Web site. Technical Support...
  • Page 15: Supported Processors

    The ADSP-21262 EZ-KIT Lite evaluation system supports the Analog Devices ADSP-21262 SHARC processors. Product Information Product information can be obtained from the Analog Devices Web site and the online help system. Analog Devices Web Site The Analog Devices Web site, , provides information www.analog.com...
  • Page 16: Engineerzone

    Also note, is a free feature of the Analog Devices Web site that myAnalog allows customization of a Web page to display only the latest information about products you are interested in.
  • Page 17: Related Documents

    . One or the other is required. that Optional items in syntax descriptions appear within brackets and sepa- [this | that] rated by vertical bars; read the example as an optional this that ADSP-21262 EZ-KIT Lite Evaluation System Manual xvii...
  • Page 18 A Warning identifies conditions or inappropriate usage of the product that could lead to conditions that are potentially hazardous for the devices users. In the online version of this book, the word Warning appears instead of this symbol. xviii ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 19 1 USING THE ADSP-21262 EZ-KIT LITE This chapter provides specific information to assist you with development of programs for the ADSP-21262 EZ-KIT Lite evaluation system. The information appears in the following sections. • “Package Contents” on page 1-3 Lists the items contained in your EZ-KIT Lite package.
  • Page 20 EZ-KIT Lite system, refer to the online help. For detailed information on how to program the ADSP-21262 SHARC processor, refer to the documents referenced in “Related Documents”. ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 21: Using The Adsp-21262 Ez-Kit Lite

    Store unused EZ-KIT Lite boards in the protective shipping package. The ADSP-21262 EZ-KIT Lite board is designed to run outside your per- sonal computer as a standalone unit. You do not have to open your computer case.
  • Page 22: Cces Install And Session Startup

    Figure 1-1. EZ-KIT Lite Hardware Setup CCES Install and Session Startup For information about CCES and to download the software, go to . A link for the ADSP-21262 EZ-KIT Lite Board www.analog.com/CCES Support Package (BSP) for CCES can be found at http://www.analog.com/SHARC/EZKits...
  • Page 23 Using the ADSP-21262 EZ-KIT Lite Step 1: Connect the EZ-KIT Lite board to a personal computer (PC) run- ning CCES using one of two options: an Analog Devices emulator or via the debug agent. Using an Emulator: 1. Plug one side of the USB cable into the USB connector of the emu- lator.
  • Page 24: Session Startup

    Debug Configurations • Choose Run > Debug Configurations. The Debug Configuration dialog box appears. 3. Select CrossCore Embedded Studio Application and click (New launch configuration). The Select Processor page of the Session Wizard appears. ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 25 The Select Platform page of the Session Wizard appears. 6. Do one of the following: • For standalone debug agent connections, ensure that the selected platform is ADSP-21262 EZ-KIT Lite via Debug Agent. • For emulator connections, choose the type of emulator that is connected to the board.
  • Page 26: Visualdsp++ Install And Session Startup

    4. Verify that the yellow USB monitor LED ( , located near the ZLED3 USB connector) is lit. This signifies that the board is communicat- ing properly with the host PC and is ready to run VisualDSP++. ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 27: Session Startup

    Ensure SHARC is selected in Processor family. In Choose a target processor, select ADSP-21262. Click Next. 4. The Select Connection Type page of the wizard appears on the screen. Select EZ-KIT Lite and click Next. ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 28: Cces Evaluation License

    Delete. Click OK. CCES Evaluation License The ADSP-21262 EZ-KIT Lite software is part of the Board Support Package (BSP) for the SHARC ADSP-2126x family. The EZ-KIT Lite is a licensed product that offers an unrestricted evaluation license for 90 days after activation.
  • Page 29: Visualdsp++ Evaluation License

    • Analog Devices directly. Call (800) 262-5645 or 781-937-2384 or go to: http://www.analog.com/buyonline • Analog Devices, Inc. local sales office or authorized distributor. To locate one, go to: http://www.analog.com/salesdir/continent.asp  The EZ-KIT Lite hardware must be connected and powered up to use CCES with a valid evaluation or full license.
  • Page 30: External Memory

    The SPI flash memory connects to the processor’s SPI port and uses FLAG0 as a chip select. In order for to behave as a chip select, clear the FLAG0 bit in the register. PPFLG SYSCTL 1-12 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 31: Analog Audio Interface

    ). In master mode, the AD1835A drives the serial port clock and frame sync signals to the processor. In slave mode, the processor must generate and drive all of the serial port clock ADSP-21262 EZ-KIT Lite Evaluation System Manual 1-13...
  • Page 32: Digital Audio Interface

    SPI. The S/PDIF receiver is capable of trans- mitting a variety of data formats, which are set up via the SPI interface. For more information about the CS8416 and DAI connection, see “DAI Interface” on page 2-4. 1-14 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 33: Leds And Push Buttons

    Table 1-2 shows how each push button connects to the processor. Refer to the related example pro- gram shipped with the EZ-KIT Lite for more information. ADSP-21262 EZ-KIT Lite Evaluation System Manual 1-15...
  • Page 34 LED and connections. FLAG Table 1-3. LED Connections LED Reference Designator Processor Pin Mapped as Flag LED1 FLAG8 LED2 FLAG9 LED3 FLAG10 LED4 FLAG11 LED5 FLAG12 LED6 FLAG13 LED7 FLAG14 LED8 FLAG15 1-16 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 35: Example Programs

    LEDs and push buttons. Example Programs Example programs are provided with the ADSP-21262 EZ-KIT Lite to demonstrate various capabilities of the product. The programs are included in the product installation kit and can be found in the Examples folder of the installation.
  • Page 36 Board Design Database 1-18 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 37: Adsp-21262 Ez-Kit Lite Hardware Reference

    Shows the locations and describes the LEDs and push buttons. • “Connectors” on page 2-16 Shows the locations and provides part numbers for the on-board connectors. In addition, the manufacturer and part number infor- mation is provided for the mating parts. ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 38: System Architecture

    IO is powered at 3.3V. Two 0-ohm resistors give access to the processor’s power planes and allow to measure the power consumption of the proces- sor. The resistor provides access to the IO voltage of the processor, ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 39: Parallel Port

    LEDs. The latter allows the LED values to be written to as if they were at a memory location. For more information about using the LEDs, refer to the “LEDs and Push Buttons” on page 1-15. ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 40: Dai Interface

    All of the PP signals are available externally via the expansion interface connectors ( ). The pinout of the connectors can be found in J1–3 “ADSP-21262 EZ-KIT Lite Schematic” on page B-1. DAI Interface The pins of the digital audio interface (DAI) connect to the signal routing unit (SRU).
  • Page 41 In addition, the codec setup switch allows flexible routing of the 12.288 MHz audio oscillator’s output signal. By default, this signal is used as the master clock ( ) for the AD1835A codec. MCLK ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 42: Spi Interface

    Table 2-1. IO Flag Pins Flag Pin EZ-KIT Lite Function SPI flash chip select FLAG0 Push button ( ) input FLAG1 Push button ( ) input FLAG2 AD1835A SPI interface chip select FLAG3 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 43: Expansion Interface

    Additional circuitry can also add extra loading to signals, decreasing their maximum effective speed.  Analog Devices does not support and is not responsible for the effects of additional circuitry. ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 44: Jtag Emulation Port

    This is not the standard connection of the JTAG interface. For information about the standard connection of the interface, see EE-68 published on the Analog Devices Web site. For more information about the JTAG connector, see “JTAG Header (ZP4)” on page 2-21.
  • Page 45 When the device is a slave, the processor must generate the frame sync and clock signals. By default, position 3 is , and the AD1835A generates the con- trol signals. ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 46: S/Pdif Signal Enable Switch (Sw8)

    Table 2-3. SW8 Connections Switch Position Processor Pin S/PDIF RX Pin DAI_P2 DAI_P1 SDATA DAI_P4 FSYNC DAI_P3 DAI_P15 SPI_CS DAI_P16 GPO0 2-10 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 47: Push Button Enable Switch (Sw9)

    1 and 2. By default, the EZ-KIT Lite boots in SPI master mode and parallel port mode, and the processor boots from flash memory. ADSP-21262 EZ-KIT Lite Evaluation System Manual 2-11...
  • Page 48: Loop-Back Test Switch (Sw11)

    AD1835A ADC_LRCLK ADC_BCLK device. The switch allows a customer to re-use the same pins on the SPI interface and on the expansion interface. The default is all positions SW12 2-12 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 49: Leds And Push Buttons

    EZ-Extender LEDs and Push Buttons This section describes functionality of the LEDs and push buttons. Figure 2-6 shows the locations of the LEDs and push buttons. Figure 2-6. LED and Push Button Locations ADSP-21262 EZ-KIT Lite Evaluation System Manual 2-13...
  • Page 50: General Purpose Leds (Led8-1)

    LED does not light, try cycling power on the board and/or reinstalling the USB driver.  When the development software is actively communicating with the EZ-KIT Lite target board, the LED can flicker, indicating communications handshake. 2-14 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 51: Push Buttons (Sw4-1)

    Push Button Reference Designator Processor Push Button Reference Signal Signal Designator FLAG1 DAI_P19 FLAG2 DAIP_20 Board Reset Push Button (SW5) push button ( ) resets all of the ICs on the board. RESET ADSP-21262 EZ-KIT Lite Evaluation System Manual 2-15...
  • Page 52: Connectors

    Connectors Connectors This section describes the connector functionality and provides informa- tion about mating connectors. Figure 2-7 shows the connector locations. Figure 2-7. Connector Locations 2-16 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 53: Expansion Interface (J1-3)

    90-position 0.05” spacing SAMTEC TFC-145 series (low cost) Audio In RCA Connector (J4) Part Description Manufacturer Part Number Two-channel right-angle RCA jack SWITCHCRAFT PJRAS1X2S02X Mating Cable Two-channel RCA interconnect MONSTER CABLE BI100-1M cable ADSP-21262 EZ-KIT Lite Evaluation System Manual 2-17...
  • Page 54: Audio Out Rca Connector (J5)

    ) provides all of the power necessary to operate the EZ-KIT Lite board. Part Description Manufacturer Part Number 2.5 mm power jack ( SWITCHCRAFT RAPC712X DIGI-KEY RAPC712X-ND Mating Power Supply (shipped with EZ-KIT Lite) 7V power supply CUI STACK DMS070214-P6P-SZ 2-18 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 55: S/Pdif Coax Connector (J8)

    FLAG1 ciated with the flag. For more information, see “Push Button Enable Switch (SW9)” on page 2-11. Part Description Manufacturer Part Number 6-pin IDC header ( SULLINS GEC03DAAN ADSP-21262 EZ-KIT Lite Evaluation System Manual 2-19...
  • Page 56: Dai Header (P3)

    26-pin IDC header ( BERG 54102-T08-13LF USB Connector (ZJ1) The USB connector ( ) allows to configure and program the processor. Part Description Manufacturer Part Number Type B USB receptacle ( MILL-MAX 897-30-004-90-000 DIGI-KEY ED90064-N 2-20 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 57: Jtag Header (Zp4)

    Pin 3 is missing to provide keying. Pin 3 in the mating connector should have a plug.  When using an emulator with the EZ-KIT Lite board, follow the connection instructions provided with the emulator. Part Description Manufacturer Part Number 14-pin IDC header ( 68737-414HLF ADSP-21262 EZ-KIT Lite Evaluation System Manual 2-21...
  • Page 58 Connectors 2-22 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 59 U16DIGI-KEY DIGI-KEY SGR-8002DC-PCC-ND OSC001 12.288MHZ DIGI-KEY SG-8002CA-PCC-ND(12 OSC003 .288M) 74LVC138AD SN74LVC138AD SOIC16 74LVC373APW U18,U21,U24 SN74LVC373APWRE4 TSSOP20 IS61LV5128AL ISSI IS61LV5128AL-10TLI TSOP44 LTC1877 LINEAR TECH LTC1877EMS8#PBF MSOP8 CS8416-CS CIRRUS LOGIC CS8416-CSZ SOIC28 FDC658P FAIRCHILD FDC658P SOT23-6 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 60 ANALOG AD1835AASZ MQFP52 DEVICES ADP1864 ANALOG ADP1864AUJZ-R7 SOT23-6 DEVICES RUBBER M1-5 MOUSER 517-SJ-5018BK FOOT SWITCHCRAFT RAPC712X 2.5MM_JACK CON005 RCA 4X2 SWITCHCRAFT PJRAS4X2U01X CON011 RCA 1X1 SWITCHCRAFT PJRAN1X1U01X CON012 MOMEN- SW1-5 PANASONIC EVQ-PAD04M TARY SWT013 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 61: Adsp-21262 Ez-Kit Lite Bill Of Materials

    ADSP-21262 EZ-KIT Lite Bill Of Materials Ref. Qty. Description Reference Manufacturer Part Number Designator .05 45X2 J1-3 SAMTEC SFC-145-T2-F-D-A CON019 DIP8 SWT016 SW11 C&K TDA08H0SB1 DIP6 SWT017 SW8-9 218-6LPST DIP4 SWT018 SW6-7,SW10, TDA04HOSB1 SW12 RCA RCA_1X2 SWITCHCRAFT PJRAS1X2S02X CON031 IDC 7X2...
  • Page 62 VISHAY CRCW120649K9FKEA 1206 R117-124 100PF 100V C2-12,C64 12061A101JAT2A 5% 1206 2.2UF 35V 10% CT21 TAJB225K035R 10UF 16V 10% CT13-14 TAJB106K016R 100 1/10W 5% R185-188 VISHAY CRCW0805100RJNEA 0805 301.0 1/4W 1% R1-2 VISHAY CRCW1206301RFKEA 1206 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 63 ADSP-21262 EZ-KIT Lite Bill Of Materials Ref. Qty. Description Reference Manufacturer Part Number Designator 220PF 50V C90-97,C183 12061A221JAT2A 10% 1206 2A S2A MICRO COMM S2A-TP DO-214AA 600 100MHZ FER1-2,FER5-8 STEWARD HZ1206B601R-10 500MA 1206 237.0 1/8W 1% R13-14,R18,R20 VISHAY CRCW1206237RFKEA 1206 750.0K 1/8W...
  • Page 64 EEE-FC1E680P CAP003 2A SL22 DIGI-KEY SL22-E3/1GI-ND DO-214AA 10UH 20% 445-2014-1-ND IND001 270 1/10W 5% R137 VISHAY CRCW0805270RJNEA 0805 0 1/10W 5% R4,R9,R12,R73, VISHAY CRCW08050000Z0EA 0805 R79-80,R90, R126,R151,R192 190 100MHZ FER3 MURATA DLW5BSN191SQ2 5A FER002 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 65 ADSP-21262 EZ-KIT Lite Bill Of Materials Ref. Qty. Description Reference Manufacturer Part Number Designator 3.32K 1/10W R24,R27,R30, PANASONIC ERJ-6ENF3321V 1% 0805 R33,R36,R39, R42,R45 1.2K 1/10W 5% R155-158 VISHAY CRCW08051K20JNEA 0805 10UF 6.3V 10% C26,C40,C50, 080560106KAT2A 0805 C52,C84,C145 6.04K 1/10W R65,R148-149 DIGI-KEY 311-6.04KCRCT-ND...
  • Page 66 R138-139, VISHAY CRCW1206270RJNEA 1206 R177-184 604.0 1/8W 1% R127-134 PANASONIC ERJ-8ENF6040V 1206 1UF 20V 20% CT15-18 TAJA105K020R 255.0K 1/10W VISHAY CRCW06032553FK 1% 0603 80.6K 1/10W DIGI-KEY 311-80.6KHRCT-ND 1% 0603 6.8UH 25% DIGI-KEY 308-1328-1-ND IND009 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 67: Adsp-21262 Ez-Kit Lite Schematic

    ADSP-21262 EZ-KIT Lite Schematic ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD ADSP-21262 EZ-KIT Lite Title TITLE Size Board No. A0174-2002 2.0C Date 5-18-2007_14:12 Sheet...
  • Page 68 0.01UF 0.1UF 0.1UF 10UF DEVICES 0402 0402 0402 0402 0402 0402 0402 0402 0402 0805 0402 0402 0402 0402 0402 0402 0402 0402 0805 PH: 1-800-ANALOGD ADSP-21262 EZ-KIT Lite Title Size Board No. A0174-2002 2.0C ADSP-21262 ADSP-21262 Date 5-18-2007_14:12 Sheet...
  • Page 69 C153 C156 C157 PH: 1-800-ANALOGD 0.01UF 0.01UF 0.01UF 0.01UF 0.1UF 0.01UF 0.1UF 0.01UF 0805 0805 0805 0805 0805 0805 0805 0805 ADSP-21262 EZ-KIT Lite Title MEMORY Size Board No. 74LVC138 AT25F512 74LVC373 74LVC373 IS61LV5128 AM29LV081 A0174-2002 2.0C Date 5-18-2007_14:12 Sheet...
  • Page 70 0.1UF 0.1UF 0.1UF 0.22UF 0402 0805 0805 0805 0805 0805 0805 Nashua, NH 03063 DEVICES R151 PH: 1-800-ANALOGD 0805 ADSP-21262 EZ-KIT Lite Title ANALOG AUDIO AGND AGND AD1835 AD1835 AD1835 AD8606 AGND Size Board No. A0174-2002 2.0C Date 5-18-2007_14:12 Sheet...
  • Page 71 1206 1206 1206 1206 AGND AGND ANALOG 20 Cotton Road C100 0.22UF 0.22UF Nashua, NH 03063 0805 0805 DEVICES PH: 1-800-ANALOGD ADSP-21262 EZ-KIT Lite Title AUDIO OUT 1 AGND AGND Size Board No. AD8606 AD8606 A0174-2002 2.0C Date 5-18-2007_14:12 Sheet...
  • Page 72 1206 1206 1206 AGND AGND ANALOG 20 Cotton Road C102 C101 Nashua, NH 03063 0.22UF 0.22UF DEVICES 0805 0805 PH: 1-800-ANALOGD ADSP-21262 EZ-KIT Lite Title AUDIO OUT 2 AGND AGND Size Board No. A0174-2002 AD8606 AD8606 2.0C Date 5-18-2007_14:12 Sheet...
  • Page 73 C111 AD8606ARZ 0.22UF 0.22UF 0.22UF SOIC8 0805 0805 0805 ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD AGND ADSP-21262 EZ-KIT Lite Title AGND AGND AGND AD8532 AD8606 AD8606 AUDIO IN/HEADPHONE OUT Size Board No. A0174-2002 2.0C Date 5-18-2007_14:12...
  • Page 74 C186 0.1UF 0.1UF 1000PF 0.1UF 10UF Useful if using DAI signals for another purpose. 0805 0805 0805 0805 1210 Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD ADSP-21262 EZ-KIT Lite Title S/PDIF RX CS8416 Size Board No. A0174-2002 2.0C Date 5-18-2007_14:12 Sheet...
  • Page 75 Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD 74LVC14A SWT013 C162 C164 C161 C182 SOIC14 MOMENTARY 0.01UF 0.01UF 0.01UF 0.01UF CT15 0805 0805 0805 0805 ADSP-21262 EZ-KIT Lite Title RESET/PB/LED Size Board No. A0174-2002 SN74AHC1G02 74LVC373 ADM708 74LVC14A 2.0C Date 5-18-2007_14:12 Sheet...
  • Page 76 20 Cotton Road MOSI SPICLK Nashua, NH 03063 DEVICES MISO SPIDS PH: 1-800-ANALOGD FLAG1_SW1 IDC3X2 ADSP-21262 EZ-KIT Lite Title NOTE: Must disable SW1 when using this pin as SPI select. EXPANSION INTERFACE/JTAG/SPI/DAI See page 9 Size Board No. A0174-2002 2.0C Date...
  • Page 77 RUBBER FOOT RUBBER FOOT RUBBER FOOT RUBBER FOOT RUBBER FOOT MSC009 MSC009 MSC009 MSC009 MSC009 ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD SHGND SHGND ADSP-21262 EZ-KIT Lite Title POWER Size Board No. A0174-2002 2.0C Date 5-18-2007_14:12 Sheet...
  • Page 78: Index

    RCA connector (J4), 2-17 P2 (SPI), 2-6, 2-19 out RCA connector (J5), 2-18 P3 (DAI), 2-20 ZJ1 (USB), 1-8, 2-20 ZP4 (JTAG header), 2-8, 2-21 contents, of this EZ-KIT Lite, conventions, manual, xvii ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 79 2-10 header (P3), 2-20 pins, See DAI pins by name (DAI_Px) general-purpose IO, 1-15, 2-3, 2-6, 2-14, port, 1-13, 1-14 2-15 digital-to-analog converters (DACs), See GPO0 pin, 2-10 AD1835A GPO1 pin, 1-15, 2-12, 2-14 ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 80 LED (LED9), 2-14 master clock (MCLK), 1-13, 1-15, 2-5, pin, 2-10 push button (SW5), 2-15 memory bus (AD15-0), restrictions, of the license, 1-11 microphone on RCA connector (J4), 1-14 select switch (SW6), ADSP-21262 EZ-KIT Lite Evaluation System Manual...
  • Page 81 SW5 (reset) push button, 2-15 SW6 (microphone select) switch, 1-14, SW7 (AD1835A setup) switch, 1-13, SW8 (S/PDIF enable) switch, 2-10 SW9 (push button enable) switch, 2-11, 2-15 switches See also switches by name (SWx) diagram of locations, ADSP-21262 EZ-KIT Lite Evaluation System Manual...
