4900002277
44

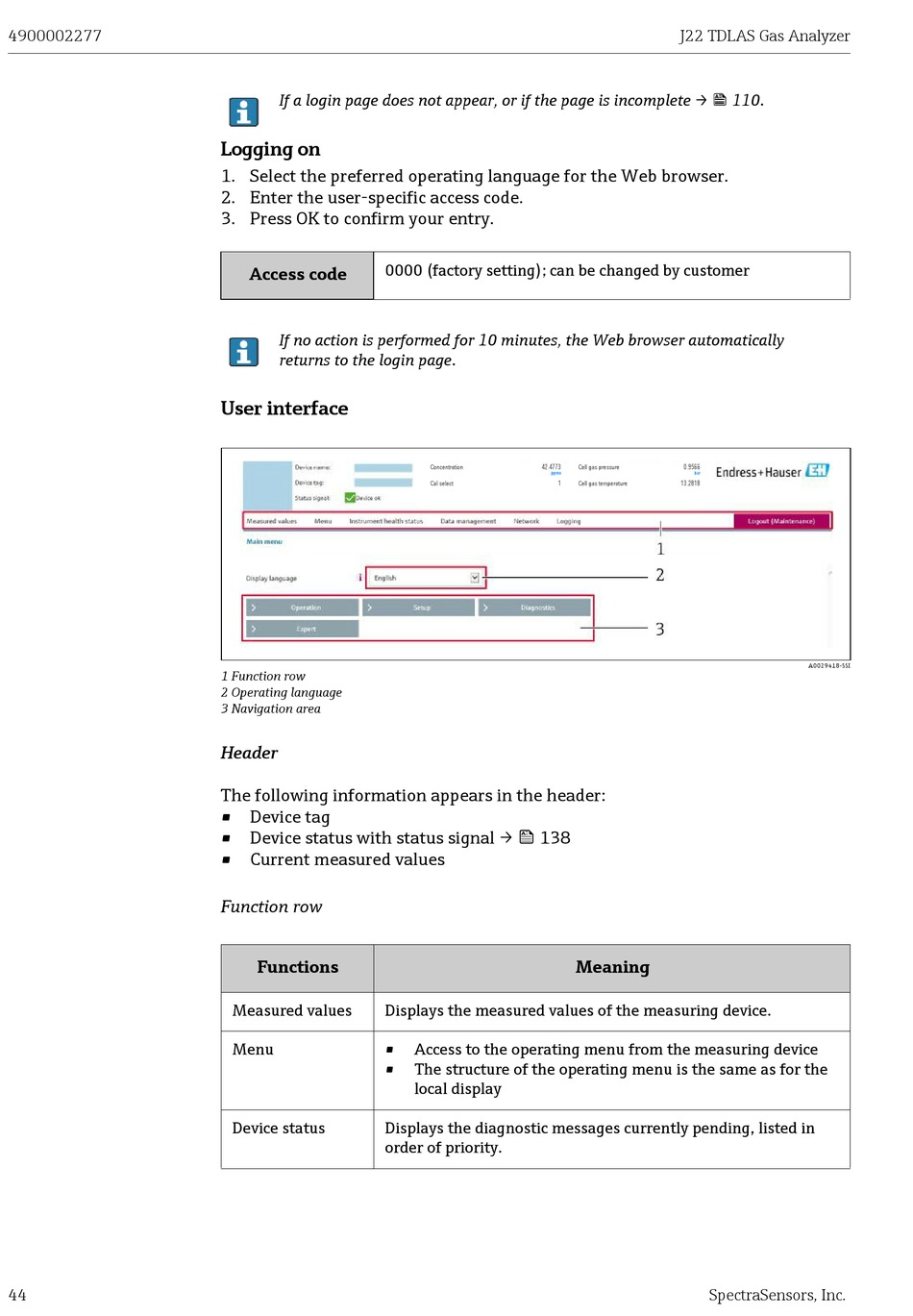

If a login page does not appear, or if the page is incomplete →  110.

Logging on

1. Select the preferred operating language for the Web browser.
2. Enter the user-specific access code.
3. Press OK to confirm your entry.
0000 (factory setting); can be changed by customer
Access code
If no action is performed for 10 minutes, the Web browser automatically
returns to the login page.

User interface

1 Function row
2 Operating language
3 Navigation area

Header

The following information appears in the header:
Device tag
Device status with status signal →  138
Current measured values
Function row
Functions
Measured values
Displays the measured values of the measuring device.
Menu
Device status
Displays the diagnostic messages currently pending, listed in
order of priority.
Concentration
42.4773
Cell gas pressure
ppmv
Cal select
1
Cell gas temperature
Meaning
Access to the operating menu from the measuring device
The structure of the operating menu is the same as for the
local display
J22 TDLAS Gas Analyzer
0.9566
bar
13.2818
A0029418-SSI
SpectraSensors, Inc.
