- : Warning
• : Locking (the device is locked via the hardware )
• : Communication (communication via remote operation is active)

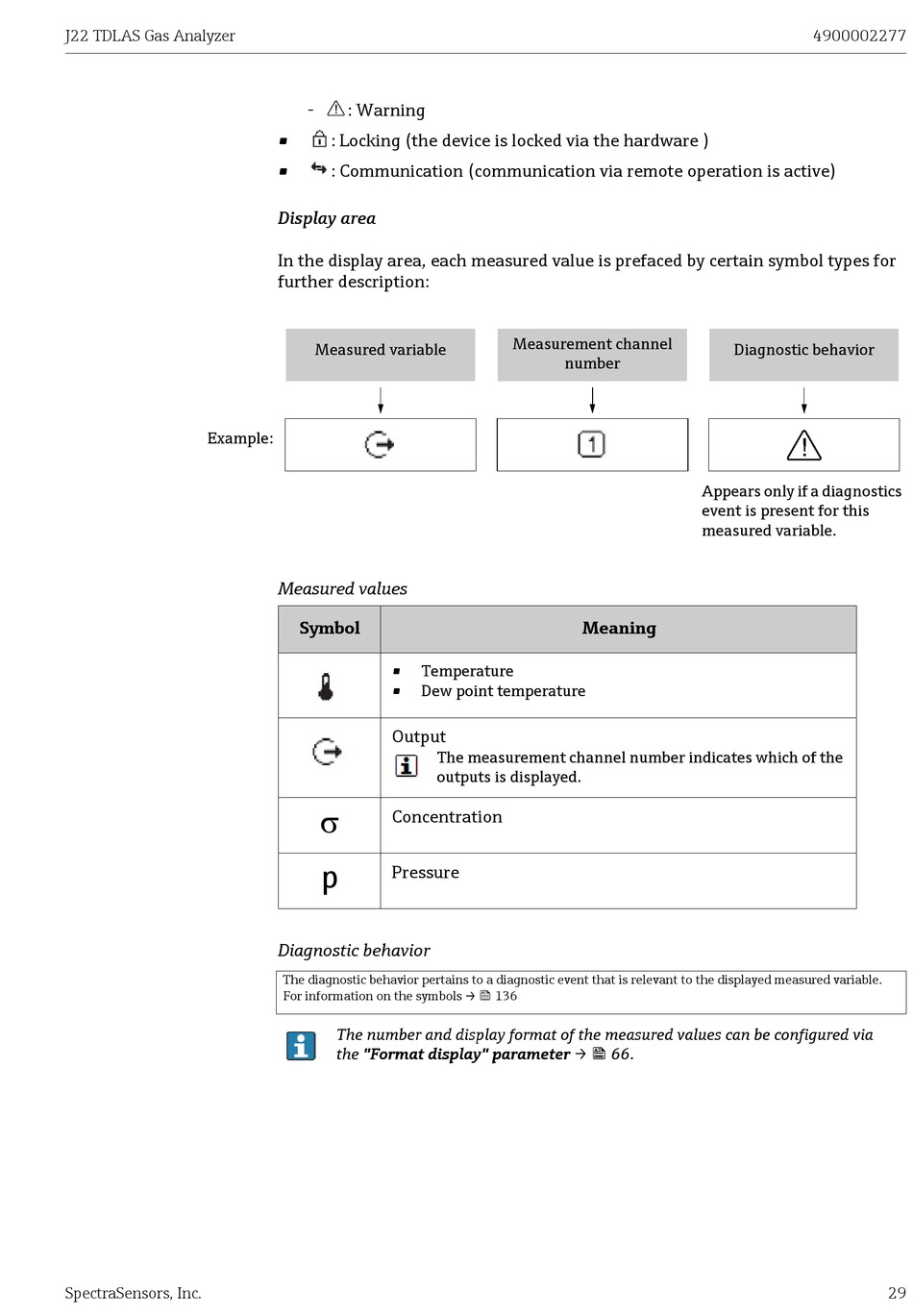

Display area

In the display area, each measured value is prefaced by certain symbol types for
further description:
Measured variable
Measured values
Symbol
• Temperature
• Dew point temperature
Output
The measurement channel number indicates which of the
outputs is displayed.

Concentration
p
Pressure
Diagnostic behavior
The diagnostic behavior pertains to a diagnostic event that is relevant to the displayed measured variable.
For information on the symbols →  136
The number and display format of the measured values can be configured via
the "Format display" parameter →  66.
Measurement channel
number
Meaning
4900002277
Diagnostic behavior
Appears only if a diagnostics
event is present for this
measured variable.
