Endress+Hauser SpectraSensors J22 TDLAS Operating Instructions Manual page 148

4900002277
142

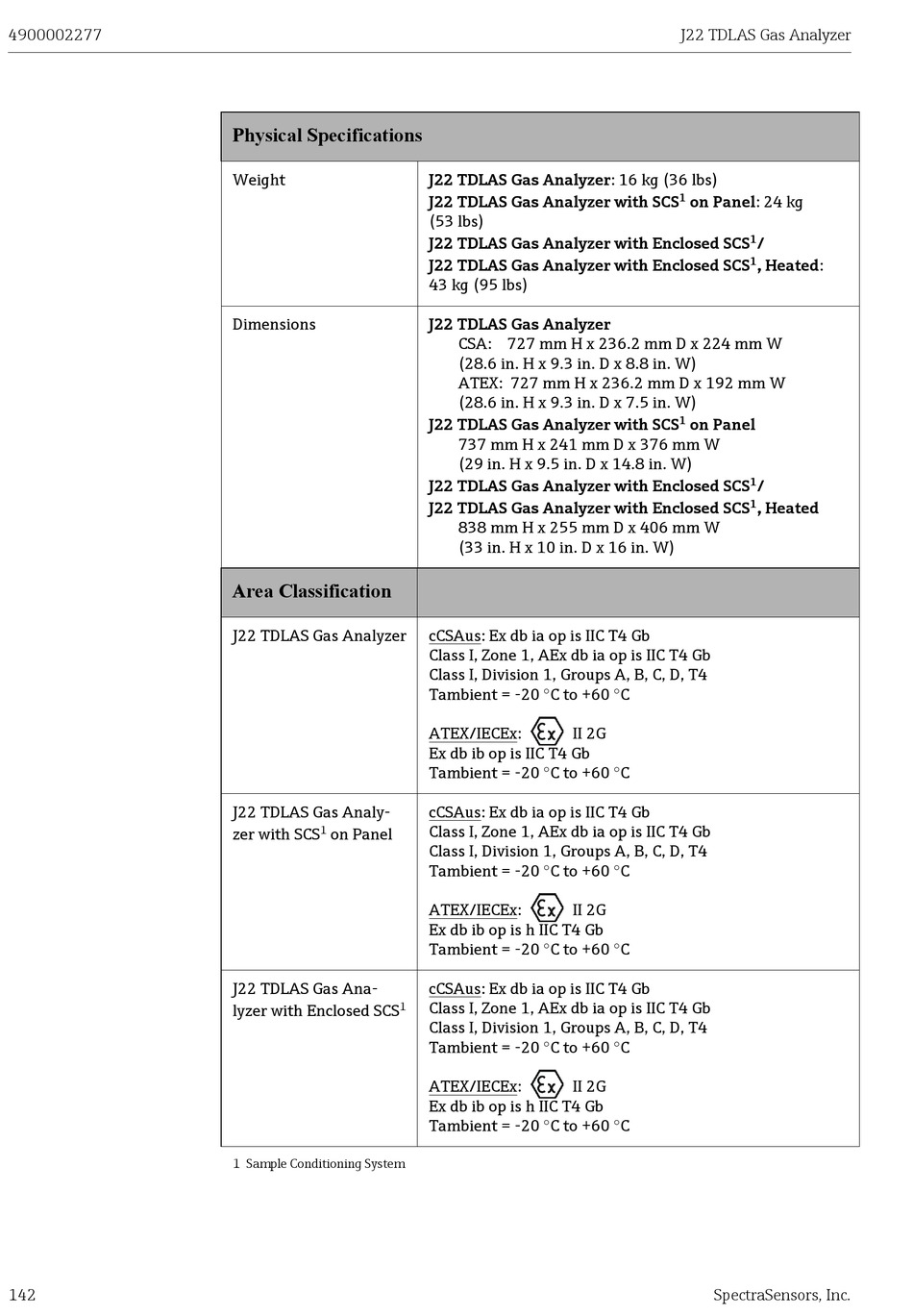

Physical Specifications
Weight
Dimensions
Area Classification
J22 TDLAS Gas Analyzer
J22 TDLAS Gas Analy-
1
zer with SCS on Panel
J22 TDLAS Gas Ana-
1
lyzer with Enclosed SCS
1 Sample Conditioning System
J22 TDLAS Gas Analyzer: 16 kg (36 lbs)
J22 TDLAS Gas Analyzer with SCS
(53 lbs)
J22 TDLAS Gas Analyzer with Enclosed SCS
J22 TDLAS Gas Analyzer with Enclosed SCS
43 kg (95 lbs)
J22 TDLAS Gas Analyzer
CSA: 727 mm H x 236.2 mm D x 224 mm W
(28.6 in. H x 9.3 in. D x 8.8 in. W)
ATEX: 727 mm H x 236.2 mm D x 192 mm W
(28.6 in. H x 9.3 in. D x 7.5 in. W)
J22 TDLAS Gas Analyzer with SCS
737 mm H x 241 mm D x 376 mm W
(29 in. H x 9.5 in. D x 14.8 in. W)
J22 TDLAS Gas Analyzer with Enclosed SCS
J22 TDLAS Gas Analyzer with Enclosed SCS
838 mm H x 255 mm D x 406 mm W
(33 in. H x 10 in. D x 16 in. W)
cCSAus: Ex db ia op is IIC T4 Gb
Class I, Zone 1, AEx db ia op is IIC T4 Gb
Class I, Division 1, Groups A, B, C, D, T4
Tambient = -20 C to +60 C
ATEX/IECEx: II 2G
Ex db ib op is IIC T4 Gb
Tambient = -20 C to +60 C
cCSAus: Ex db ia op is IIC T4 Gb
Class I, Zone 1, AEx db ia op is IIC T4 Gb
Class I, Division 1, Groups A, B, C, D, T4
Tambient = -20 C to +60 C
ATEX/IECEx: II 2G
Ex db ib op is h IIC T4 Gb
Tambient = -20 C to +60 C
cCSAus: Ex db ia op is IIC T4 Gb
Class I, Zone 1, AEx db ia op is IIC T4 Gb
Class I, Division 1, Groups A, B, C, D, T4
Tambient = -20 C to +60 C
ATEX/IECEx: II 2G
Ex db ib op is h IIC T4 Gb
Tambient = -20 C to +60 C
J22 TDLAS Gas Analyzer
1
on Panel: 24 kg
1
/
1
, Heated:
1
on Panel
1
/
1
, Heated
SpectraSensors, Inc.
