J22 TDLAS Gas Analyzer
Diagnostic Informa-
tion in the Web
Browser
SpectraSensors, Inc.
2 Short text
3 Service ID
4 Diagnostic behavior with diagnostic code
5 Operation time of occurrence
6 Remedial measures
The user is in the diagnostic message.
1. 1. Press  ( symbol).
 The Diagnostic list submenu opens.
2. Select the desired diagnostic event with  or  and press  .
 The message for the remedial measures for the selected diagnostic event
opens.
3. Press  +  simultaneously.
 The message for the remedial measures closes.
The user is in the Diagnostics menu at an entry for a diagnostics event, e.g., in the
Diagnostic list submenu or Previous diagnostics parameter.
1. Press .
 The message for the remedial measures for the selected diagnostic event
opens.
2. Press  +  simultaneously.
 The message for the remedial measures closes.

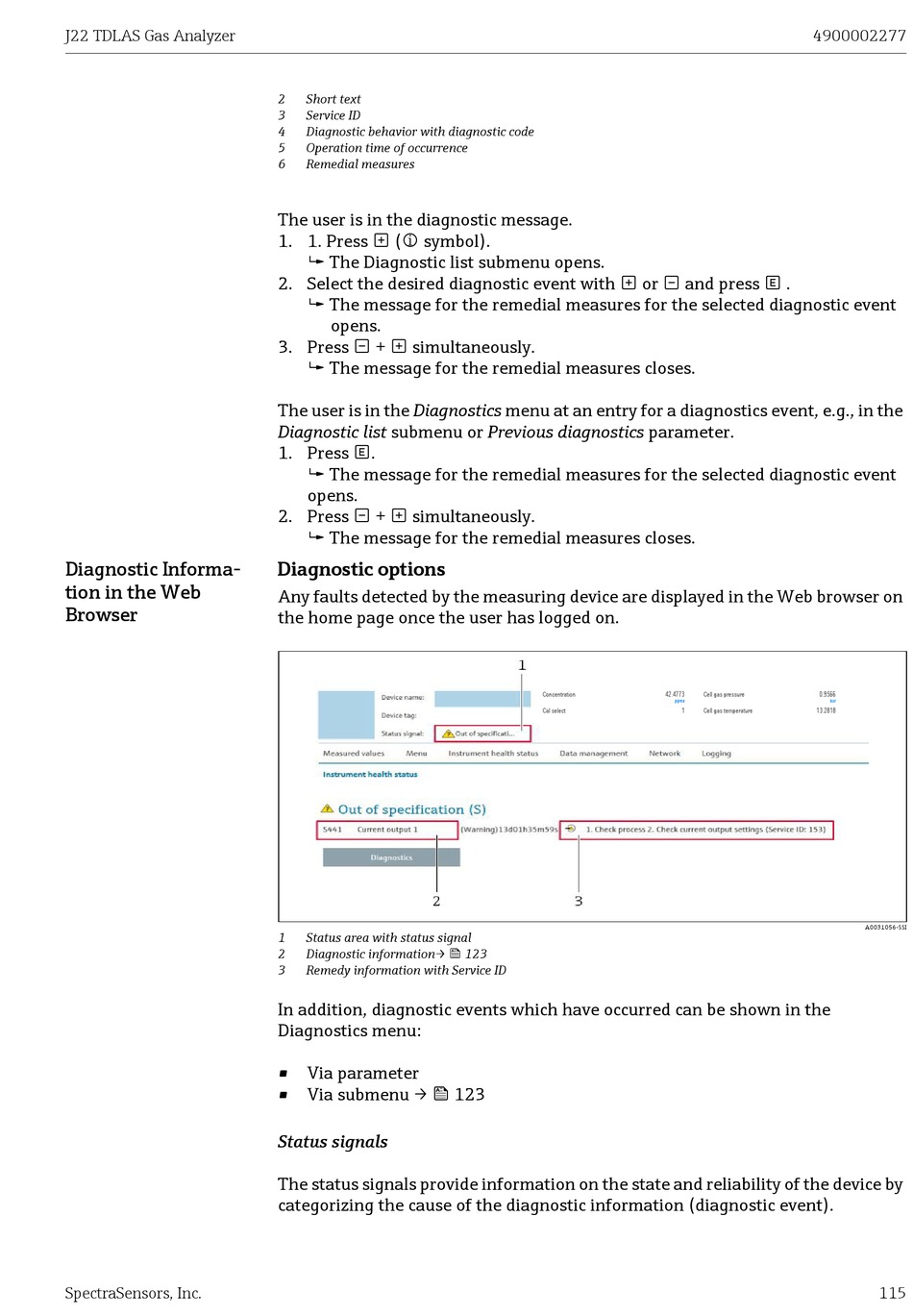

Diagnostic options

Any faults detected by the measuring device are displayed in the Web browser on
the home page once the user has logged on.
1 Status area with status signal
2 Diagnostic information→  123
3 Remedy information with Service ID
In addition, diagnostic events which have occurred can be shown in the
Diagnostics menu:
• Via parameter
• Via submenu →  123

Status signals

The status signals provide information on the state and reliability of the device by
categorizing the cause of the diagnostic information (diagnostic event).
Concentration 42.4773 Cell gas pressure
ppmv
Cal select 1 Cell gas temperature
4900002277
0.9566
bar
13.2818
A0031056-SSI
115
