4900002277
Examples:
30

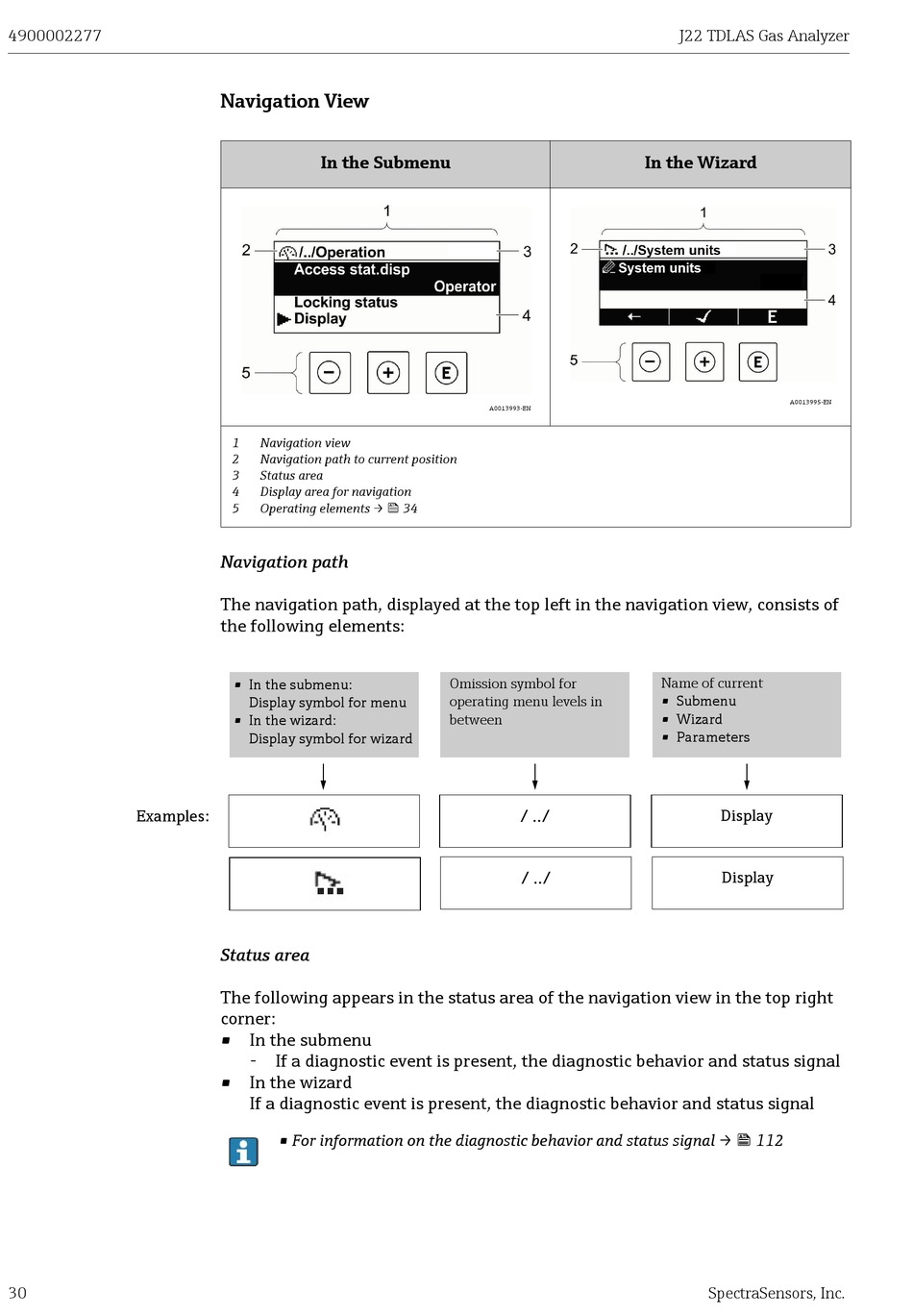

Navigation View
In the Submenu
1
Navigation view
2
Navigation path to current position
3
Status area
4
Display area for navigation
5
Operating elements → 34
Navigation path
The navigation path, displayed at the top left in the navigation view, consists of
the following elements:
• In the submenu:
Display symbol for menu
• In the wizard:
Display symbol for wizard
Status area
The following appears in the status area of the navigation view in the top right
corner:
•
In the submenu
-
If a diagnostic event is present, the diagnostic behavior and status signal
•
In the wizard
If a diagnostic event is present, the diagnostic behavior and status signal
• For information on the diagnostic behavior and status signal → 112
A0013993-EN
Omission symbol for
operating menu levels in
between
/ ../
/ ../
J22 TDLAS Gas Analyzer
In the Wizard
A0013995-EN
Name of current
• Submenu
• Wizard
• Parameters
Display
Display
SpectraSensors, Inc.
