Flat Rubber (NBR) Overmolded Fingers

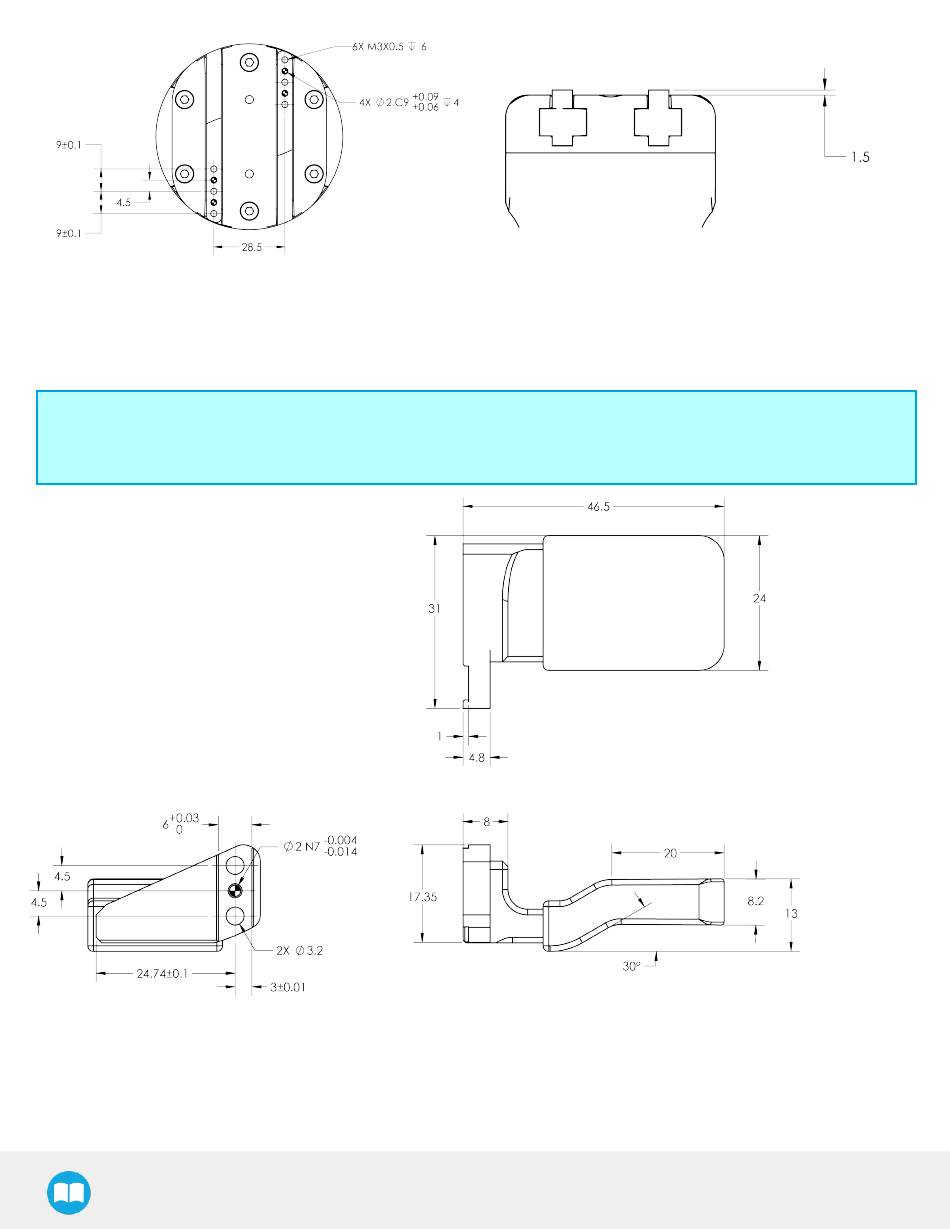

The figure below represents flat rubber (NBR) overmolded fingers. For more details, see section Spare Parts, Kits and Accessories. This
finger allows a 0-50 mm stroke.
Info
The stroke changes when installing the Fingertips Extender. See Fig. 1-5 and Fig. 1-6 for details on dimensions of the
Fingertips Extender.
Robotiq CN C M achine Tending Kit Instruction M anual
Fig. 8-3: Racks in rack housing.
Fig. 8-4: Flat NBR overmolded finger is mounted on Hand-E by default.
