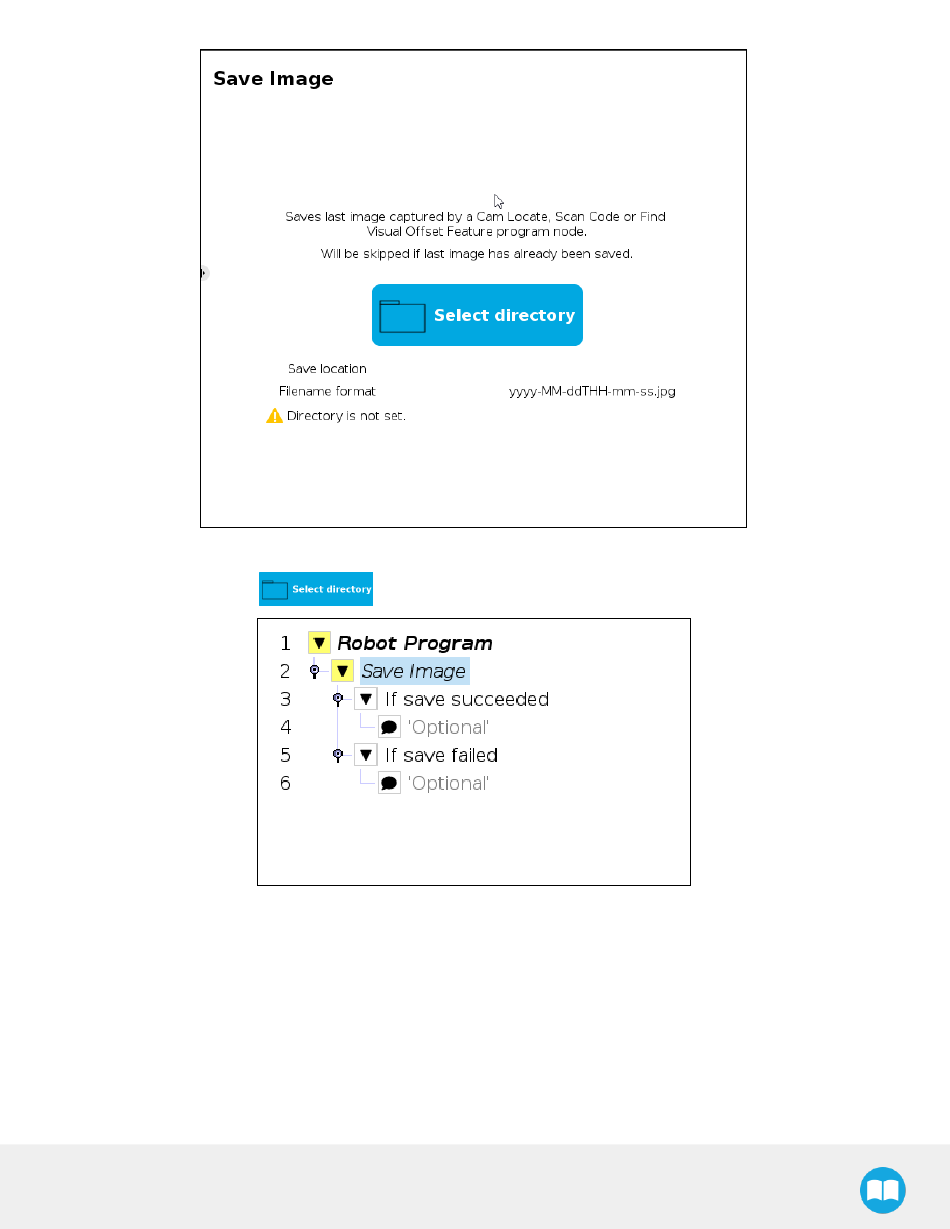

Fig. 6-31: The Save Image node.
To save images to a USB stick, tap .
Fig. 6-32: The Save Image node in a robot program.
You can add different instructions following the Save Image node, based on its success or failure. Before adding those instructions,
you will need to select the directory where images are saved.
Each image is saved in a separate .jpg file, and named as per this format: yyyy-MM-ddtHH-mm-ss.jpg.
